VARITO XR3E-6550C Baggage Scanner (160kV)
VARITO XR3E-6550C (160kV) is an intelligent X-ray scanner uses the penetrating ability of X-Ray to quickly in luggage and cargo without opening the suitcase. It’s suitable for Government departments, transportation departments, logistics industry, courts, procuratorates, prisons, embassies, factories, schools, hospitals, gymnasiums, exhibition briefcases, postal parcels, express mail. hand luggage and small packages
Product Details:
| Brand | VARITO |
| Model | XR3E-6550C |
| Brand Origin | Germany |
| Dimensions | 2890mm×916mm×1411mm |
| Tunnel size(mm) |
650mm×500mm (W×H) |
| X-Ray Generator |
160kV |
Many Features
Multilingual operation
Multilingual operation,Baggage counter
Automatic built
Automatic built in test and self diagnosis
Secure access Key
Secure access Key,Energy saving design
Indication
Indication of the date and time,Auto archiving
Specification
| Item | Details |
|---|---|
| Model No. | XR3E-6550C (160kV) |
| Dimensions | Channel Size: 650mm(W) x 500mm(H) |
| Device Size: 2195mm(L) x 902mm(W) x 1362mm(H) | |
| Performance Parameters | Line Resolution: AWG40 (0.0787mm Copper wire) |
| Spatial Resolution: Horizontal 1.0mm, Vertical 1.0mm | |
| Penetration: 38 mm Steel Plate | |
| X-ray Source: 160kv | |
| Radiation Dose | Leakage Dose: <1Mgy/h |
| Single Dose: <2Mgy/h | |
| Conveyor Parameters | Conveyor Belt: 660mm (Belt to ground) |
| Conveyor Speed: 0.22 Meters/second | |
| Screen | Display Size: 21.5” |
| Resolution: 1920x1080p | |
| Overall Parameters | Power Consumption: 800W |
| Power Supply: AC220v 50Hz | |
| Noise: <60dB (1m Away from device housing) | |
| Working Temperature: 5℃~40℃, 0~90% No Condensation | |
| Storage Temperature: -20℃~60℃, 0~90% No Condensation | |
| Weight: 348KG | |
| Monitor System Parameters | Sensor Type: 1/2.8” Progressive Scan CMOS |
| Number of Cameras: 1 channel Entrance | |
| Wide Dynamic Range: 120dB | |
| Video Compression: H.265/H.264Mjpeg | |
| Maximum Image Size: 1920×1080 | |
| Storage Duration: Not Less than 30 days |
Product Description
The defining feature of the XR3E-6550C is its high-frequency 160kV X-ray generator.
High-Performance 160kV Imaging Technology
The defining feature of the XR3E-6550C is its high-frequency 160kV X-ray generator. While many scanners in this class utilize lower-powered 160kV sources, VARITO provides the energy required to achieve a staggering 38mm steel plate penetration.
1. Expose Hidden Threats: Clearly visualize items concealed behind reinforced metallic suitcase frames or dense laptop components.
2. Dual-Energy 4-Color Imaging: This advanced software automatically categorizes materials based on their atomic weight. Organic materials (like explosives or narcotics) appear in orange, inorganic materials in green, and metals in blue or black. This multi-color visualization allows operators to identify threats in seconds.
3. Identify Complex IEDs: Detect thin wires and detonators even when buried under layers of thick clothing or high-density materials.
4. Superior Clarity: The 160kV source ensures that even when a 100kg crate is fully loaded, the X-rays can bypass obstructions to reveal thin wires, electronic circuits, and organic threats.
Heavy-Duty Design for High-Traffic Hubs
A high-quality scanner is most effective when it is part of a synchronized defense strategy. The VARITO brand provides an authoritative, all-in-one ecosystem to secure your entire premises.
1. Industrial Equipment Weight: At 348kg, this unit provides the physical stability required for vibration-free scanning, ensuring sharp, high-resolution images.
2. Adjustable Conveyor Speed: Operating at a standard 0.22 m/s, the speed can be fine-tuned to match your security team’s pace, preventing bottlenecks during peak hours.
3. Large Format Tunnel: The 650mm x 500mm opening is the “gold standard” for Out-of-Gauge (OOG) baggage, fitting items that standard airport scanners simply cannot accommodate.
4. Adjustable Conveyor Speed: Operating at a standard 0.22 m/s, the speed can be adjusted to match the flow of your security line, ensuring efficiency never bottlenecks your operations.
We Provide Multiple Solutions
Can integrate a variety of access control equipments
Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work

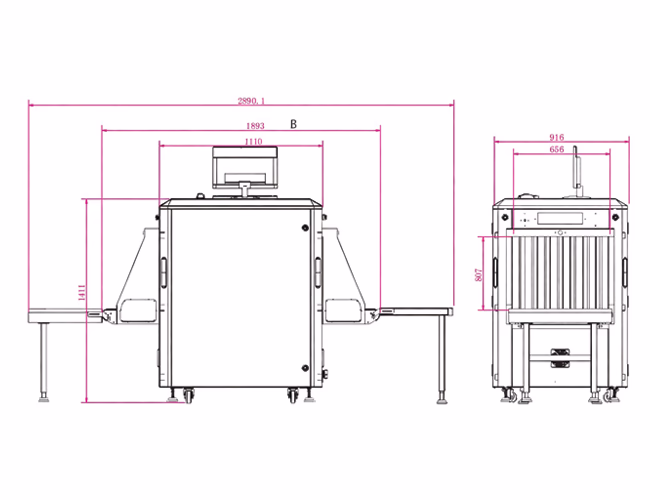

Product Details and Dimensions
All the details and dimensions can be customized according to your project site
More Information
Smart Access Control Solution for Modern Security
VARITO XR3E-6550C X-Ray Baggage Scanner
In an age where security threats are increasingly concealed, standard screening is no longer enough. The VARITO XR3E-6550C X-Ray Baggage Scanner (160kV) is a professional-grade detection system engineered for high-stakes environments. With a specialized 660mm x 510mm tunnel size, this model is the definitive solution for airport checkpoints, government secretariats, and high-profile corporate lobbies where zero compromise is the mandate.
As a signature product from the VARITO brand, the XR3E-6550C embodies combining massive 160kV power with intelligent software to align with Experience, Expertise, Authoritativeness and Trustworthiness standards.
High-Performance 160kV Imaging Technology
The defining feature of the XR3E-6550C is its high-frequency 160kV X-ray generator. While many scanners in this class utilize lower-powered 80kV or 100kV sources, VARITO provides the energy required to achieve a staggering 38mm steel plate penetration.
This allows security operators to:
1. Expose Hidden Compartments: See through heavy metallic suitcase frames and reinforced crates.
2. Dual-Energy 4-Color Imaging: This advanced software automatically categorizes materials based on their atomic weight. Organic materials (like explosives or narcotics) appear in orange, inorganic materials in green, and metals in blue or black. This multi-color visualization allows operators to identify threats in seconds.
3. Heavy Duty Performance: Equipped with a reinforced conveyor system, this VARITO X-Ray Baggage Scanner can handle heavy loads with consistent, smooth movement.
4. Superior Clarity: The 160kV source ensures that even when a 200kg crate is fully loaded, the X-rays can bypass obstructions to reveal thin wires, electronic circuits, and organic threats.
Heavy-Duty Design for High-Traffic Hubs
True security is achieved through the seamless integration of multiple layers. The VARITO brand offers an authoritative, all-in-one ecosystem where hardware works in perfect harmony.
1. 100kg Conveyor Load: The reinforced motor and belt system can handle a distributed load of up to 200 kg, making it ideal for large travel trunks, industrial crates, and bulk courier sacks.
2. Low Profile Design: With a Conveyor Belt Height of only 690mm, loading and unloading heavy items is significantly easier for staff, reducing physical strain and improving the speed of the checkpoint.
3. Industrial-Grade Build: Weighing 348kg, the equipment provides a stable, vibration-free scanning environment, which is essential for producing high-resolution, sharp images.
4. Adjustable Conveyor Speed: Operating at a standard 0.22 m/s, the speed can be adjusted to match the flow of your security line, ensuring efficiency never bottlenecks your operations.
Building a Synchronized Defense with VARITO
A truly secure perimeter requires more than just high-quality scanning, it requires a unified ecosystem. The VARITO brand offers a comprehensive range of products that work together to create an impenetrable security blanket.
To maximize your facility’s safety, we recommend integrating the XR3E-6550C with:
* Pedestrian Safety: Pair your scanner with a VARITO Metal Detector Gate to screen individuals while their bags are being processed.
* Access Management: Control staff and visitor flow using a VARITO Tripod Turnstile Gate or a high-tech VARITO Access Control System.
* Vehicle Perimeter: Secure your loading bays and entry points with a VARITO Boom Barrier Gate to manage transport vehicles delivering the goods being scanned.
By choosing a VARITO X-Ray Baggage Scanner, you are joining a global network of security-conscious organizations that rely on VARITO’s authoritative engineering.
Ideal Applications of Baggage Scanner
- Airports & Customs: For out-of-gauge (OOG) baggage and customs clearance.
- Logistics Hubs: Screening inbound and outbound freight for dangerous goods.
- Critical Infrastructure: Protecting power plants and military bases from large-scale threats.
- Event Logistics: Scanning equipment crates for concerts, exhibitions, and sporting events.
Conclusion: Invest in Authoritative Security
The VARITO XR3E-6550C (160kV) is more than just a piece of hardware; it is a commitment to the absolute safety of your premises. By combining massive 160kV power with an ergonomic tunnel size and industrial-strength load capacity, it offers a future-proof solution for any organization that prioritizes safety. When security is the mission, choose the authority of the VARITO brand.
Frequently Asked Questions (FAQs)
1. Why is 160kV better than 100kV for baggage scanning? A 160kV generator provides higher energy, allowing the X-rays to penetrate 38mm of steel. This is essential for seeing through dense objects that would stop lower-powered scanners, ensuring no threats are missed.
2. Can the XR3E-6550C be used in a narrow office lobby? Yes. Despite its high power, it is designed with a compact footprint. It fits through standard commercial doors and is ideal for locations where space is at a premium.
3. Is it safe for food, medicines, and electronic devices? Absolutely. The radiation dosage is strictly controlled to meet international ISO and CE safety standards, making it 100% safe for sensitive electronics, food, and pharmaceuticals.
4. How does the 4-color imaging help the security operator? It acts as a primary visual filter. Organic threats (like plastic explosives or liquids) are highlighted in orange, helping operators immediately distinguish them from metal or inorganic objects.
5. Does the machine support image storage? Yes, it features a massive internal storage capacity, capable of holding 100,000+ images for forensic review, training, or investigations.
