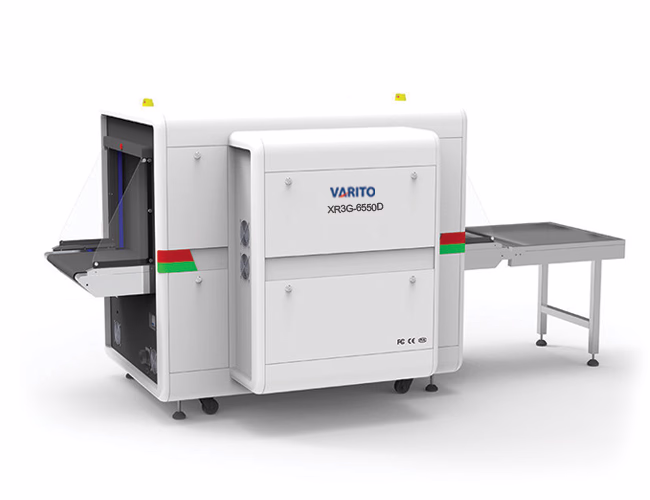

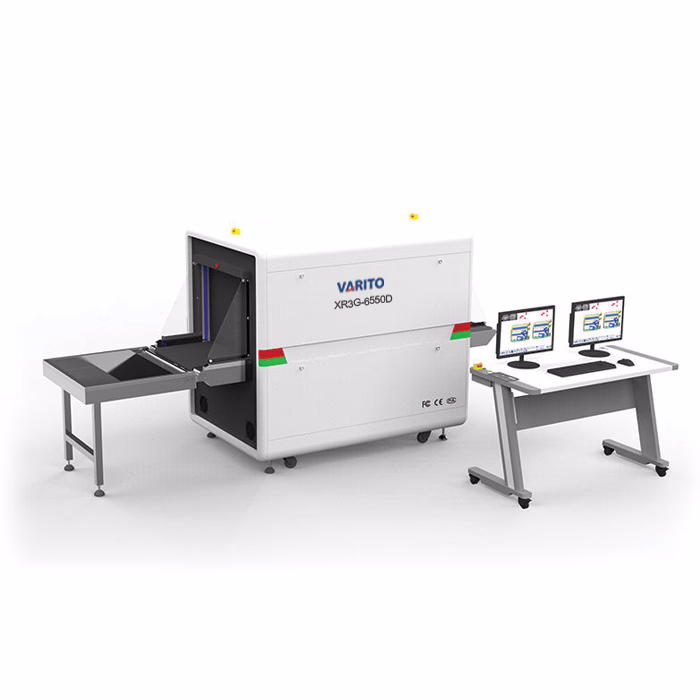

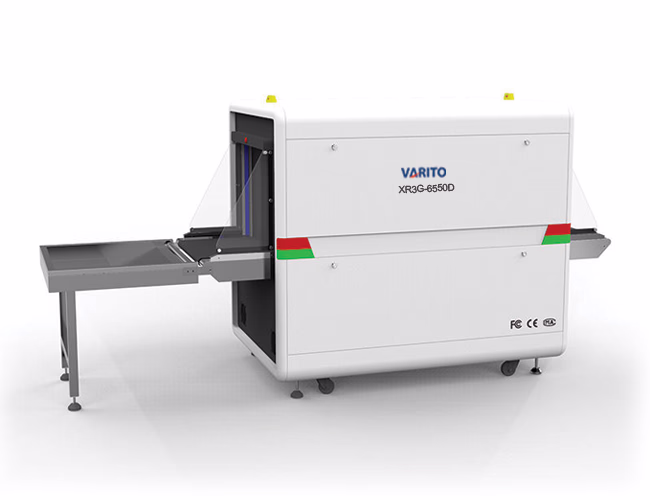

VARITO XR3G-6550D X-Ray Baggage Scanner
The VARITO XR3G-6550D X-Ray Baggage Scanner is a premier, high-energy screening solution designed for environments that refuse to compromise on safety. Featuring a specialized 660mm x 510mm tunnel size, this model is the definitive choice for high-profile corporate offices, government secretariats and airport checkpoints.
Product Details:
| Brand | Varito |
| Model | XR3G-6550D |
| Brand Origin | Germany |
| Dimensions | 2890mm×916mm×1411mm |
| Tunnel size(mm) |
650mm×500mm (W×H) |
| X-Ray Generator |
140kV |
Many Features
Dual view 140kV
Dual view 140kV ensure exceptional clarity and penetration
Streamlined curved-edge design
Streamlined curved-edge design delivers a sleek, modern aesthetic
Central alarm indicator provides clear
Central alarm indicator provides clear, immediate visual alerts
Front and rear acrylic shields enhance
Front and rear acrylic shields enhance safety and visibility
Optional camera installation
Optional camera installation on shields for improved monitoring
Up to 42mm penetration power
Up to 42mm penetration power for superior detection capability
Standard white finish with customizable
Standard white finish with customizable color options available
Robust design ensures durability
Robust design ensures durability and consistent high-performance operation
Specification
| Physical Specfications | |||
|---|---|---|---|
| Dimensions | 2140mm×1335mm×1365mm (L×W×H) | ||
| Tunnel Size | 660mm×510mm (W×H) | ||
| Console Table | 1200mm L * 600mm W * 750mm H | ||
| Equipment Weight | 480kg | ||
| Conveyor Speed | 0.22 m/s (adjustable) | ||
| Conveyor Load | 100KG | ||
| Conveyor Belt Height | 690mm(from ground) | ||
| X-Ray Generator | |||
| X-Ray Generator | Primary 160Kv; Side: 160Kv | ||
| Energy | Dual-engery 4 Color Imaging | ||
| Penetration | Primary & side: 42mm steel plate | ||
| Wire Resolution | Primary & side: AWG 40(φ0.0787mm) | ||
| Material Separation | Low Z, Medium Z, High Z to 0.5 Z accuracy | ||
| Spatial Resolution | Primary & side: Horizontal:1.0mm;Vertical:1.0mm | ||
| Single Inspection Dose | <5μGy/h | ||
| X-ray Leakage | <0.5μGy/h at 5cm outside external surface | ||
| Orientation | Bottom irradiation | ||
| Generator Cooling | Sealed oil cooling / 100% | ||
| Tube Current | 0.5–1.25mA | ||
| Power Consumption | 1000W | ||
| Noise | <55 dB | ||
| Film Safety | Guarantee ASA/ISO1600 Film | ||
| Power Supply | AC 220V, 50 HZ | ||
| System & Monitor | |||
| Operating System | Embedded Windows 10 operating system | ||
| Monitor | 21.5-inch LCD monitor, 1920 × 1080 | ||
| Memory | 1TB | ||
| Keyboard | Special designed with shortcut buttons | ||
| Electric Roller | Single-phase | ||
| Imaging Features | |||
| X-ray Sensor | L-Shaped Photodiode Array, 12bit deep | ||
| Image Processing | 24bit real-time processing, 4-color analysis, date & ID display, bag counter | ||
| Image Display | 1920 × 1080 resolution | ||
| Image Enhancement | 1–64x zoom, Color/B&W, Partial Increasing, High/Low Penetration, Over-Increasing, Organic Removal, Inorganic Removal, Inverting, Brightening, Darkening, Gray Sweeping | ||
| Explosives & Narcotics Detection | Suspicious organics highlight (Zeff = 7, 8, 9) | ||
| Suspicious Alarm | Alarm & box-line for explosives, drugs, and hard-to-penetrate materials | ||
| Threat Image Projection (TIP) | Inserts fictional threat images for training and vigilance | ||
| Image Recall | Hundreds | ||
| Misc Functions | Time/date display, counters, user management, timers, power-on self-test, diagnostics, system log, standby mode, stimulant training | ||
| Scanning Direction | Dual-direction | ||
| Operating Environment | |||
| Storage Temperature | -20℃ to 40℃ | ||
| Operating Temperature | 5℃ to 40℃ / 10%–90% RH | ||
| Relative Humidity | 0%–90% RH (non-condensing) | ||
| Storage Humidity | 0%–90% RH (non-condensing) | ||
| Options | |||
| AI Feature | 41 classes in 15 major types | ||
| Cameras | Real-time video for item-person association & lost item retrieval | ||
| UPS | 1.5 KVA, 15–20 mins backup | ||
| OEM Branding | Metal frame & interface branding | ||
| Packaging Information | |||
| Packing List | English Manual ×1; Cable ×1; Tools ×1 set; Console Table ×1 | ||
| Packaging Method | Wooden Pallet | ||
| Packaging Dimensions | 2040mm × 1020mm × 1660mm | ||
| N.W. | 380KG | ||
| G.W. | 440KG | ||
| Regulatory Compliance | |||
| China Standard | GB 12664-2024 | ||
| International Certifications | CE, ROHS, FCC | ||
Product Description
High-Performance 160kV Imaging Technology
The standout feature of the XR3G-6550D is its high-performance 160kV X-ray generator. While standard commercial scanners often use lower-powered sources, the VARITO XR3G-6550D provides the energy necessary to achieve a staggering 38mm steel plate penetration.
1. Expose Hidden Threats: Clearly visualize items concealed behind reinforced metallic suitcase frames or dense laptop components.
2. Dual-Energy 4-Color Imaging: This advanced software automatically categorizes materials based on their atomic weight. Organic materials (like explosives or narcotics) appear in orange, inorganic materials in green, and metals in blue or black. This multi-color visualization allows operators to identify threats in seconds.
3. Identify Complex IEDs: Detect thin wires and detonators even when buried under layers of thick clothing or high-density materials.
4. Superior Clarity: The 160kV source ensures that even when a 100kg crate is fully loaded, the X-rays can bypass obstructions to reveal thin wires, electronic circuits, and organic threats.
Heavy-Duty Design for High-Traffic Hubs
A high-quality scanner is most effective when it is part of a synchronized defense strategy. The VARITO brand provides an authoritative, all-in-one ecosystem to secure your entire premises.
1. Industrial Equipment Weight: At 480kg, this unit provides the physical stability required for vibration-free scanning, ensuring sharp, high-resolution images.
2. Adjustable Conveyor Speed: Operating at a standard 0.22 m/s, the speed can be fine-tuned to match your security team’s pace, preventing bottlenecks during peak hours.
3. Large Format Tunnel: The 660mm x 510mm opening is the “gold standard” for Out-of-Gauge (OOG) baggage, fitting items that standard airport scanners simply cannot accommodate.
4. Adjustable Conveyor Speed: Operating at a standard 0.22 m/s, the speed can be adjusted to match the flow of your security line, ensuring efficiency never bottlenecks your operations.
We Provide Multiple Solutions
Can integrate a variety of access control equipments

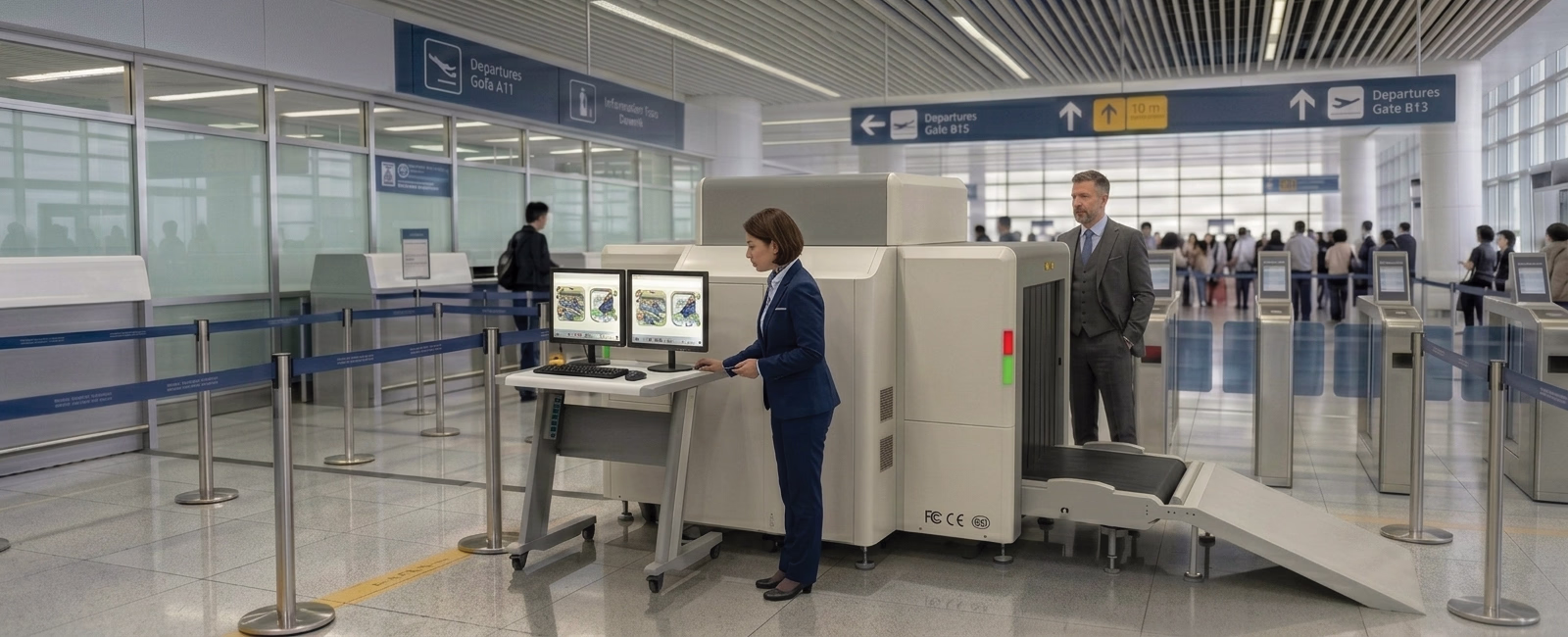

Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work

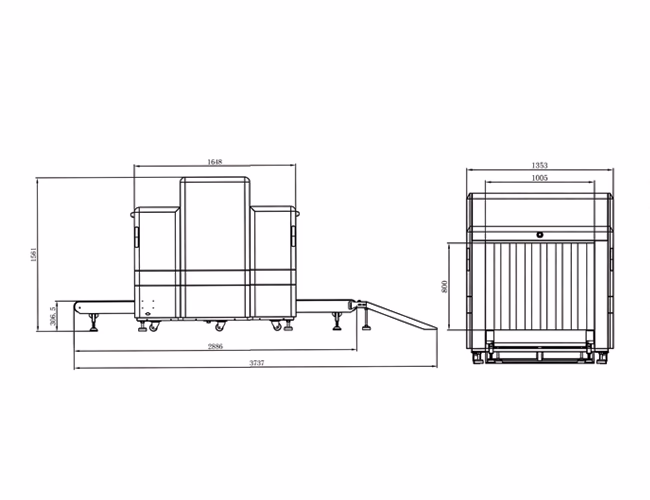

Product Details and Dimensions
All the details and dimensions can be customized according to your project site
More Information
Smart Access Control Solution for Modern Security
VARITO XR3G-6550D X-Ray Baggage Scanner
In the modern security landscape, the ability to see through dense obstructions is the ultimate advantage. The VARITO XR3G-6550D X-Ray Baggage Scanner is a premier, high-energy screening solution designed for environments that refuse to compromise on safety. Featuring a specialized 660mm x 510mm tunnel size, this model is the definitive choice for high-profile corporate offices, government secretariats and airport checkpoints.
As a signature product from the VARITO brand, the XR3G-6550D embodies combining massive 160kV power with intelligent software to align with Experience, Expertise, Authoritativeness and Trustworthiness standards.
High-Performance 160kV Imaging Technology
The core strength of the XR3G-6550D lies in its high-performance 160kV X-ray generator. While standard scanners struggle with thick metallic casings, this model achieves an impressive 42mm steel plate penetration.
This allows security operators to:
1. Expose Hidden Compartments: See through heavy metallic suitcase frames and reinforced crates.
2. Dual-Energy 4-Color Imaging: This advanced software automatically categorizes materials based on their atomic weight. Organic materials (like explosives or narcotics) appear in orange, inorganic materials in green, and metals in blue or black. This multi-color visualization allows operators to identify threats in seconds.
3. Heavy Duty Performance: Equipped with a reinforced conveyor system, this VARITO X-Ray Baggage Scanner can handle heavy loads with consistent, smooth movement.
4. Superior Clarity: The 160kV source ensures that even when a 200kg crate is fully loaded, the X-rays can bypass obstructions to reveal thin wires, electronic circuits, and organic threats.
Heavy-Duty Design for High-Traffic Hubs
The physical build of the VARITO XR3G-6550D reflects its industrial purpose. Weighing in at 480 kg, this is a stable, rugged machine designed for 24/7 operation in demanding environments.
1. 100kg Conveyor Load: The reinforced motor and belt system can handle a distributed load of up to 200 kg, making it ideal for large travel trunks, industrial crates, and bulk courier sacks.
2. Low Profile Design: With a Conveyor Belt Height of only 690mm, loading and unloading heavy items is significantly easier for staff, reducing physical strain and improving the speed of the checkpoint.
3. Industrial-Grade Build: Weighing 480 kg, the equipment provides a stable, vibration-free scanning environment, which is essential for producing high-resolution, sharp images.
4. Adjustable Conveyor Speed: Operating at a standard 0.22 m/s, the speed can be adjusted to match the flow of your security line, ensuring efficiency never bottlenecks your operations.
Building a Synchronized Defense with VARITO
A truly secure perimeter requires more than just high-quality scanning, it requires a unified ecosystem. The VARITO brand offers a comprehensive range of products that work together to create an impenetrable security blanket.
To maximize your facility’s safety, we recommend integrating the XR3G-6550D with:
* Pedestrian Safety: Pair your scanner with a VARITO Metal Detector Gate to screen individuals while their bags are being processed.
* Access Management: Control staff and visitor flow using a VARITO Tripod Turnstile Gate or a high-tech VARITO Access Control System.
* Vehicle Perimeter: Secure your loading bays and entry points with a VARITO Boom Barrier Gate to manage transport vehicles delivering the goods being scanned.
By choosing a VARITO X-Ray Baggage Scanner, you are joining a global network of security-conscious organizations that rely on VARITO’s authoritative engineering.
Ideal Applications of Baggage Scanner
- Airports & Customs: For out-of-gauge (OOG) baggage and customs clearance.
- Logistics Hubs: Screening inbound and outbound freight for dangerous goods.
- Critical Infrastructure: Protecting power plants and military bases from large-scale threats.
- Event Logistics: Scanning equipment crates for concerts, exhibitions, and sporting events.
Conclusion: Invest in Authoritative Security
The VARITO XR3G-6550D is a testament to what happens when high-penetration power meets ergonomic design. Its ability to process everyday items with industrial-level clarity makes it an indispensable asset for any organization that prioritizes safety. When security is the mission, choose the authority of the VARITO brand.
Frequently Asked Questions (FAQs)
1. What makes the 160kV generator different from standard scanners? The 160kV source provides significantly more energy, allowing it to penetrate 38mm of steel. This is essential for seeing through dense objects that would stop lower-powered 80kV or 100kV scanners.
2. Can the XR3G-6550D be used in a narrow lobby? With a tunnel size of 660x510mm, the machine remains relatively compact. It is designed to fit through standard commercial doorways and operate efficiently in lobbies where space is a premium.
3. Is X-ray radiation safe for laptops and medications? Absolutely. The system complies with international ISO and CE safety standards, making it 100% safe for sensitive electronics, food, and pharmaceuticals.
4. How does the 4-color imaging help my security staff? It acts as a primary visual filter. Organic threats (like liquids or powders) are highlighted in orange, helping operators immediately distinguish them from inorganic clothing or metal objects.
5. How many images can the system store? The system features a massive internal storage capacity, capable of holding 100,000+ images for forensic review or staff training purposes.
