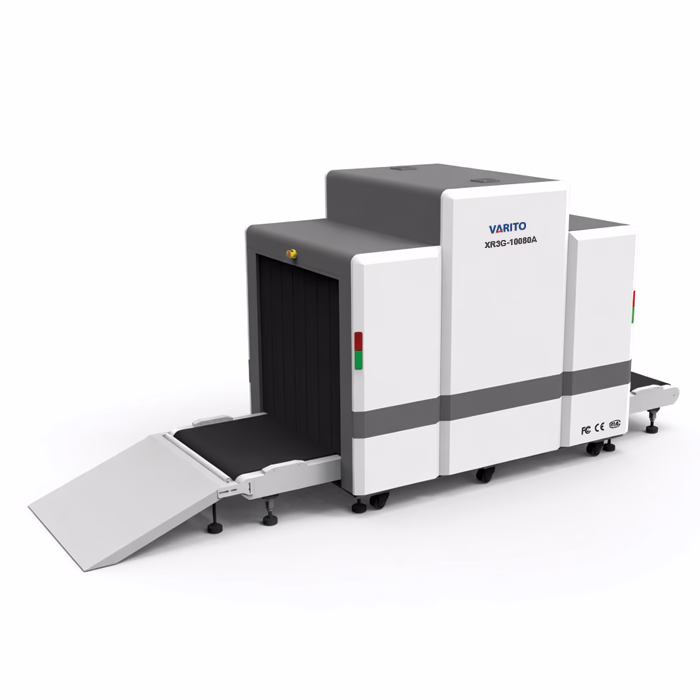

VARITO XR3G-10080A X-Ray Baggage Scanner
The VARITO XR3G-10080A X-Ray Baggage Scanner is a heavy-duty inspection system engineered for environments that demand both large-scale throughput and microscopic detail. With a specialized 1000mm x 800mm tunnel, this model is the preferred choice for airports, customs checkpoints, and logistics hubs where oversized luggage and heavy parcels are the norm.
Product Details:
| Brand | VARITO |
| Model | XR3G-10080A |
| Brand Origin | Germany |
| Dimensions | 2890mm×1380mm×1560mm |
| Tunnel size(mm) |
1000mm×800mm (W×H) |
| X-Ray Generator |
160kV |
Many Features
Large 10080 tunnel design
Large 10080 tunnel design for oversized baggage inspection
Powerful 160kV sources ensure
Powerful 160kV sources ensure powerful, high-definition imaging
42mm penetration for accurate
42mm penetration for accurate detection of dense materials
310mm conveyor height for effortless
310mm conveyor height for effortless baggage loading
Widely used in hotels
Widely used in hotels, train stations, and logistics centers
Elegant white body customizable
Elegant white body customizable in multiple color options
Stylish, ergonomic console table
Stylish, ergonomic console table enhances user experience
Reliable Win 10 software improves
Reliable Win 10 software improves inspection efficiency and safety
Specification
| Physical Specifications | |
|---|---|
| Dimensions | 2890mm × 1380mm × 1560mm (L×W×H) |
| Tunnel Size | 1000mm × 800mm (W×H) |
| Console Table | 700mm L × 600mm W × 750mm H |
| Equipment Weight | 630 kg |
| Conveyor Speed | 0.22 m/s (adjustable) |
| Conveyor Load | 200 kg |
| Conveyor Belt Height | 310mm (from ground) |
| X-Ray Generator | |
| X-Ray Generator | 160kV |
| Energy | Dual-energy 4 Color Imaging |
| Penetration | 12mm steel plate |
| Wire Resolution | AWG 38 (φ0.102mm) |
| Material Separation | Low Z, Medium Z, High Z to 0.5 Z accuracy |
| Spatial Resolution | Horizontal 1.0mm; Vertical 1.0mm |
| Single Inspection Dose | < 5 μGy/h |
| X-ray Leakage | < 0.5 μGy/h (5 cm outside surface) |
| Orientation | Top irradiation |
| Generator Cooling | Sealed oil cooling / 100% |
| Tube Current | 0.5 – 1.25 mA |
| Power Consumption | 800W |
| Noise | < 55 dB |
| Film Safety | ASA/ISO1600 Film Guaranteed |
| Power Supply | AC 220V, 50Hz |
| System & Monitor | |
| Operating System | Embedded Windows 10 |
| Monitor | One 21.5-inch LCD monitor, 1920×1080 |
| Memory | 1TB |
| Keyboard | Special design with shortcut buttons |
| Electric Roller | Single-phase |
| Imaging Features | |
| X-ray Sensor | L-Shaped Photodiode Array, 12-bit |
| Image Processing | 24-bit real-time, 4-color analysis, ID/date marking, bag counting |
| Image Display | High resolution 1920×1080 pixels |
| Image Enhancement | 1–64× zoom, Color/B&W, Partial Increase, High/Low Penetration, Over-Increasing, Organic Removal, Inorganic Removal, Inverting, Brightening, Darkening, Gray Sweeping |
| Explosives & Narcotics Detection | Suspicious organics highlight (Zeff 7,8,9) |
| Suspicious Alarm | Alarm & marking for explosives, drugs, and hard-to-penetrate items |
| Threat Image Projection (TIP) | Inserts realistic threat images for training & operator vigilance |
| Image Recall | Hundreds |
| Miscellaneous Functions | Time/date display, counters, user management, timers, self-test, diagnostics, system log, standby mode, training mode |
| Scanning Direction | Dual-direction |
| Operating Environment | |
| Storage Temperature | -20℃ to 40℃ |
| Operating Temperature | 5℃ to 40℃ |
| Relative Humidity | 0%–90% RH (non-condensing) |
| Storage Humidity | 0%–90% RH (non-condensing) |
| Options | |
| AI Feature | 41 classes in 15 major types |
| Cameras | Real-time video recording for item-person association |
| UPS | 1.5KVA (15–20 minutes) |
| OEM Branding | Applied on metal frame; built-in interface branding |
| Packaging Information | |
| Packing List | Console Table, Manual, Cable, Tools (set) |
| Packaging Method | Wooden Pallet |
| Packaging Dimensions | 2070mm L × 1480mm W × 1820mm H |
| N.W. | 650 kg |
| G.W. | 755 kg |
| Regulatory Compliance | |
| China Standard | GB 12664-2024 |
| International | CE, ROHS, FCC |
Product Description
Superior Penetration and Clarity
The defining feature of the XR3G-10080A is its expansive 1000mm (width) by 800mm (height) tunnel. This “One Meter Square” aperture is the industry standard for bulk screening.
1. Oversized Check-in Luggage: No more manual checks for bulky sports gear or large trunks.
2. Commercial Cargo: Ideal for scanning boxes and shrink-wrapped goods in warehouse environments.
3. Consolidated Mail: Efficiently processes large sacks of mail or courier parcels in one pass.
Building a Unified Security
1. Dual-Energy Detection: Uses advanced sensors to color-code materials (Organic = Orange, Inorganic = Green, Metal = Blue).
2. High-Resolution Imaging: Displayed on 19-inch high-definition monitors to allow operators to compare different image filters (Negative, B/W, Pseudo-color) side-by-side.
3. Eco-Friendly Operation: Features a power-saving mode that reduces energy consumption during idle periods, extending the life of the X-ray tube.
4. Heavy-Duty Conveyor: Built to support a staggering 600kg to 630kg distributed load, ensuring the motor handles heavy cargo without lagging.
We Provide Multiple Solutions
Can integrate a variety of access control equipments

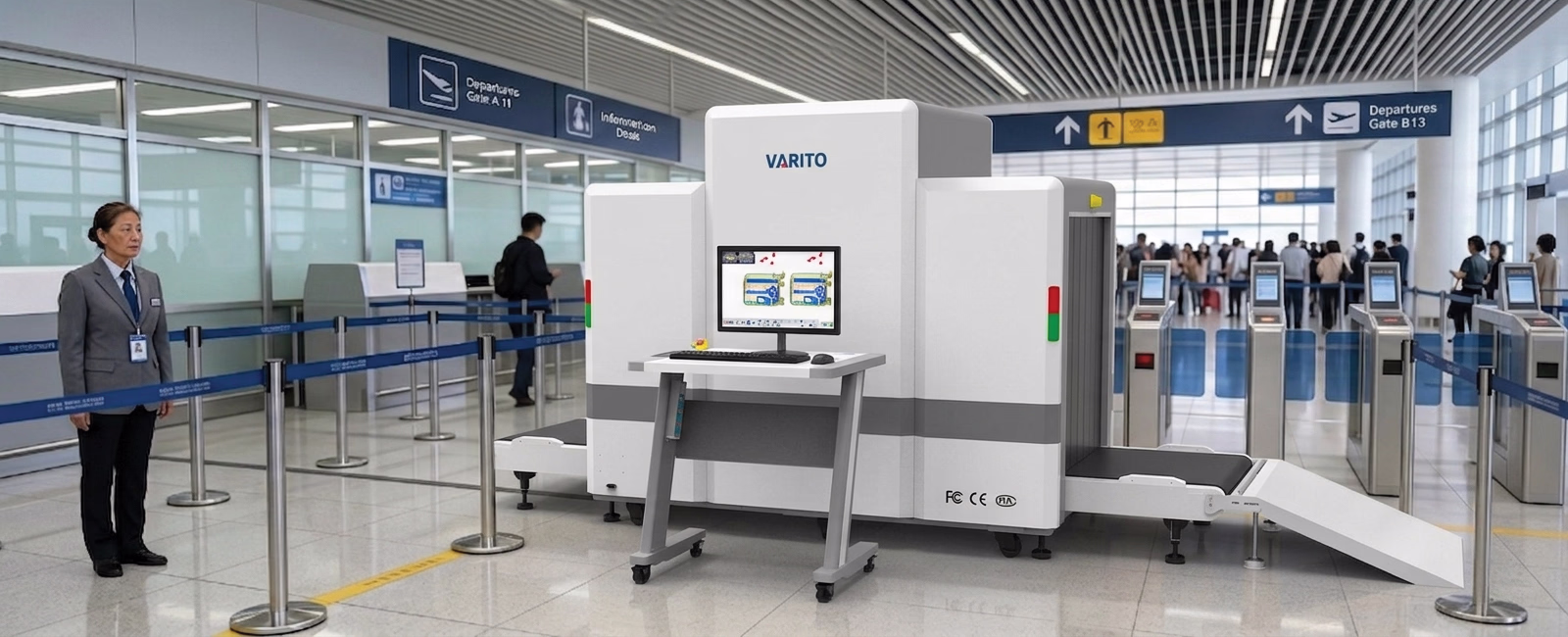

Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work
Product Details and Dimensions
All the details and dimensions can be customized according to your project site
More Information
Smart Access Control Solution for Modern Security
VARITO XR3G-10080A X-Ray Baggage Scanner
In the world of high-stakes security, the ability to see through complexity is the ultimate advantage. The VARITO XR3G-10080A X-Ray Baggage Scanner is a heavy-duty inspection system engineered for environments that demand both large-scale throughput and microscopic detail. With a specialized 1000mm x 800mm tunnel, this model is the preferred choice for airports, customs checkpoints, and logistics hubs where oversized luggage and heavy parcels are the norm.
As a flagship product of the VARITO brand, the XR3G-10080A delivers security professionals with the reliable data they need to keep public spaces safe.
High-Performance 160kV Imaging Technology
The heart of the XR3G-10080A is its powerful 160kV X-ray generator. Unlike lower-powered units, this 160kV source provides the energy required to penetrate dense materials with ease.
1. 12mm Steel Penetration: The system effortlessly sees through 12mm thick steel plates, ensuring that weapons or contraband hidden inside metallic containers or heavy machinery are clearly visible.
2. Dual-Energy 4-Color Imaging: This advanced software automatically categorizes materials based on their atomic weight. Organic materials (like explosives or narcotics) appear in orange, inorganic materials in green, and metals in blue or black. This multi-color visualization allows operators to identify threats in seconds.
3. Heavy Duty Performance: Equipped with a reinforced conveyor system, this VARITO X-Ray Baggage Scanner can handle heavy loads with consistent, smooth movement.
4. High-Resolution Precision: Every scan is rendered in crisp detail, allowing for the detection of fine wires and small electronic components that standard scanners might miss.
Built for Heavy-Duty Logistics
Despite its size, the VARITO X-Ray Baggage Scanner does not compromise on detail. The VARITO XR3G-10080A isn’t just powerful, it’s physically robust. Every aspect of its design is optimized for high-volume, heavy-item screening.
1. 200kg Conveyor Load: The reinforced motor and belt system can handle a distributed load of up to 200 kg, making it ideal for large travel trunks, industrial crates, and bulk courier sacks.
2. Low Profile Design: With a Conveyor Belt Height of only 310mm, loading and unloading heavy items is significantly easier for staff, reducing physical strain and improving the speed of the checkpoint.
3. Large 1000mm x 800mm Tunnel: The wide-format aperture is perfectly sized for “Out-of-Gauge” baggage that cannot fit into standard scanners, ensuring a seamless flow for all types of cargo.
4. Threat Image Projection (TIP): Maintains operator alertness by injecting virtual threat items into the workflow.
5. Network Integration: Supports LAN connectivity for remote monitoring and data management.
Integrating the VARITO Security Ecosystem
A truly secure facility requires more than just an X-ray scanner; it requires a synchronized defense. The VARITO brand offers a complete suite of products that work in harmony with the XR3G-10080A.
For a comprehensive security checkpoint, we recommend integrating:
* Pedestrian Safety: Pair your scanner with a VARITO Metal Detector Gate to screen individuals while their bags are being processed.
* Access Management: Control staff and visitor flow using a VARITO Tripod Turnstile Gate or a high-tech VARITO Access Control System.
* Vehicle Perimeter: Secure your loading bays and entry points with a VARITO Boom Barrier Gate to manage transport vehicles delivering the goods being scanned.
By choosing a VARITO X-Ray Baggage Scanner, you are joining a global network of security-conscious organizations that rely on VARITO’s authoritative engineering.
Ideal Applications of Baggage Scanner
- Airports & Customs: For out-of-gauge (OOG) baggage and customs clearance.
- Logistics Hubs: Screening inbound and outbound freight for dangerous goods.
- Critical Infrastructure: Protecting power plants and military bases from large-scale threats.
- Event Logistics: Scanning equipment crates for concerts, exhibitions, and sporting events.
Conclusion: Invest in Authoritative Security
The VARITO XR3G-10080A is a masterclass in security hardware. By combining a 160kV high-energy source with a massive 200kg load capacity and intuitive 4-color imaging, it provides an unshakeable defense against hidden threats. When security is non-negotiable, professionals choose the authority of the VARITO brand.
Frequently Asked Questions (FAQs)
1. Is 160kV enough for industrial parcel screening? Yes. 160kV is a high-energy standard that provides excellent penetration (12mm steel), making it more than capable of screening through dense clothing, wood, and light metallic enclosures found in industrial parcels.
2. How does the 4-color imaging help my security team? The 4-color system acts as a biological and chemical filter. It highlights organic threats (like liquids or powders) in orange, helping operators immediately spot potential explosives or prohibited drugs.
3. Is the conveyor belt height adjustable? The standard height is set at 310mm to facilitate the easy loading of heavy 200kg items. This ergonomic height is designed to align with standard airport and warehouse loading docks.
4. Can this scanner detect thin wires used in IEDs? Absolutely. The high-resolution dual-energy sensors are designed to highlight the “edges” of metallic objects, making even thin copper wires or small detonators visible to a trained eye.
5. Does it require an external cooling system? No. The VARITO XR3G-10080A features an internal oil-cooling system for the X-ray generator, allowing it to operate 24/7 in busy environments without overheating.
