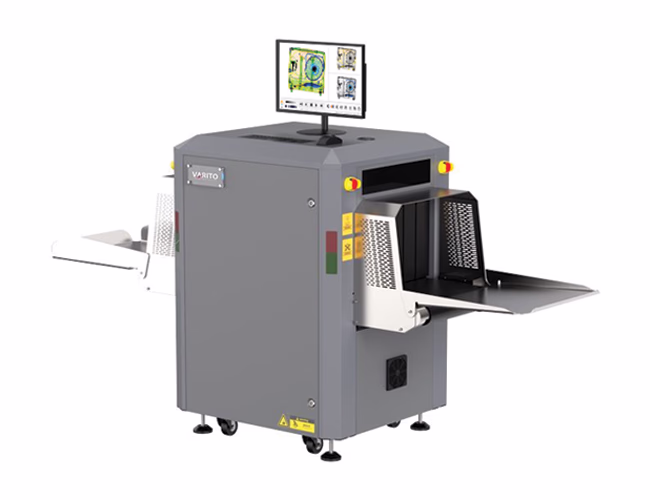

VARITO XR3E-6550C Baggage Scanner (140kv)
VARITO XR3E-6550C X-Ray Baggage Scanner (140kV) is designed to bridge the gap between high-speed throughput and uncompromising accuracy. As a flagship model under the prestigious VARITO brand, this scanner is engineered to provide clear, high-contrast imagery that makes threat detection intuitive and efficient for operators.
Product Details:
| Brand: | Varito |
| Model | XR3E-6550C (140kV) |
| Channel Size: | 650mm(W) x 500mm(H) |
| Screen: | Display Size: 21.5” |
| Power Supply |
AC220v 50Hz |
| Working Temperature: |
5℃~40℃, 0~90% No Condensation |
Many Features
Multilingual operation
Multilingual operation,Baggage counter
Automatic built
Automatic built in test and self diagnosis
Secure access Key
Secure access Key,Energy saving design
Indication
Indication of the date and time,Auto archiving
Specification
| Item | Details |
|---|---|
| Model No. | XR3E-6550C (140kV) |
| Dimensions | Channel Size: 650mm(W) x 500mm(H) |
| Device Size: 2195mm(L) x 902mm(W) x 1362mm(H) | |
| Performance Parameters | Line Resolution: AWG40 (0.0787mm Copper wire) |
| Spatial Resolution: Horizontal 1.0mm, Vertical 1.0mm | |
| Penetration: 38 mm Steel Plate | |
| X-ray Source: 140kv | |
| Radiation Dose | Leakage Dose: <1Mgy/h |
| Single Dose: <2Mgy/h | |
| Conveyor Parameters | Conveyor Belt: 660mm (Belt to ground) |
| Conveyor Speed: 0.22 Meters/second | |
| Screen | Display Size: 21.5” |
| Resolution: 1920x1080p | |
| Overall Parameters | Power Consumption: 800W |
| Power Supply: AC220v 50Hz | |
| Noise: <60dB (1m Away from device housing) | |
| Working Temperature: 5℃~40℃, 0~90% No Condensation | |
| Storage Temperature: -20℃~60℃, 0~90% No Condensation | |
| Weight: 348KG | |
| Monitor System Parameters | Sensor Type: 1/2.8” Progressive Scan CMOS |
| Number of Cameras: 1 channel Entrance | |
| Wide Dynamic Range: 120dB | |
| Video Compression: H.265/H.264Mjpeg | |
| Maximum Image Size: 1920×1080 | |
| Storage Duration: Not Less than 30 days |
Product Description
Superior Penetration and Clarity
The “140kV” specification is the sweet spot for professional security. It provides enough power to achieve 40mm steel penetration, ensuring that even dense metallic objects or shielded items are visible.
1. Dual-Energy Imaging: Differentiates between organic (orange), inorganic (green), and metallic (blue) materials automatically.
2. 650mm x 500mm Tunnel: The ideal dimensions for scanning standard backpacks, carry-on luggage, and mail parcels.
3. Real-Time Diagnostics: The system monitors its own health, ensuring that the X-ray generator and sensors are always performing at 100% capacity.
Building a Unified Security
1. High-Resolution Detection: Utilizing a 19-inch (optional 21.5″) LED monitor, operators can use zoom functions up to 64x to inspect suspicious components.
2. Threat Image Projection (TIP): Enhances operator vigilance by periodically inserting virtual threats into the scanning stream for training purposes.
3. Eco-Friendly Operation: Features a power-saving mode that reduces energy consumption during idle periods, extending the life of the X-ray tube.
4. Heavy Duty Build: The conveyor belt is rated for a 160kg load, making it suitable for heavy-duty commercial use.
We Provide Multiple Solutions
Can integrate a variety of access control equipments
Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work

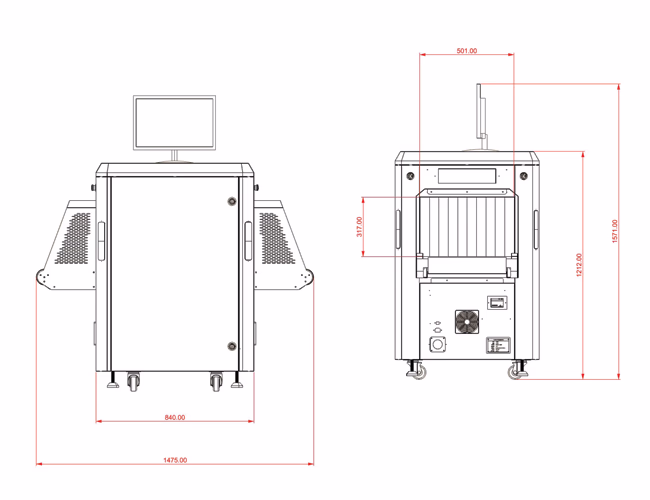

Product Details and Dimensions
All the details and dimensions can be customized according to your project site
More Information
Smart Access Control Solution for Modern Security
VARITO XR3E-6550C X-Ray Baggage Scanner
The VARITO XR3E-6550C X-Ray Baggage Scanner (140kV) is designed to bridge the gap between high-speed throughput and uncompromising accuracy. As a flagship model under the prestigious VARITO brand, this scanner is engineered to provide clear, high-contrast imagery that makes threat detection intuitive and efficient for operators.
Superior Penetration and Clarity (140kV Power)
The “140kV” specification is the sweet spot for professional security. It provides enough power to achieve 40mm steel penetration, ensuring that even dense metallic objects or shielded items are visible. Whether it’s a corporate lobby, a government building, or a hotel entrance, the VARITO X-Ray Baggage Scanner ensures that nothing hidden remains unseen.
Dual-Energy Imaging: Differentiates between organic (orange), inorganic (green), and metallic (blue) materials automatically.
650mm x 500mm Tunnel: The ideal dimensions for scanning standard backpacks, carry-on luggage, and mail parcels.
Real-Time Diagnostics: The system monitors its own health, ensuring that the X-ray generator and sensors are always performing at 100% capacity.
Building a Unified Security Ecosystem with VARITO
The strength of a security strategy lies in its integration. The XR3E-6550C works best when it is part of a holistic access control environment. For instance, while your baggage scanner secures belongings, you can manage personnel entry using a VARITO Access Control System paired with a VARITO Tripod Turnstile Gate for high-traffic areas.
For high-profile entry points where aesthetics matter as much as security, many facilities choose to install a VARITO Metal Detector Gate alongside the X-ray station. To round out your perimeter security, the VARITO Boom Barrier Gate provides the ultimate solution for vehicle access control, ensuring every point of entry is under the trusted VARITO umbrella.
Key Features of the VARITO XR3E-6550C
1. High-Resolution Detection: Utilizing a 19-inch (optional 21.5″) LED monitor, operators can use zoom functions up to 64x to inspect suspicious components.
2. Threat Image Projection (TIP): Enhances operator vigilance by periodically inserting virtual threats into the scanning stream for training purposes.
3. Eco-Friendly Operation: Features a power-saving mode that reduces energy consumption during idle periods, extending the life of the X-ray tube.
4. Heavy Duty Build: The conveyor belt is rated for a 160kg load, making it suitable for heavy-duty commercial use.
Ideal Applications of Baggage Scanner
- Corporate Offices: Preventing unauthorized hardware or hazardous materials from entering the workplace.
- Event Venues: Quickly processing large crowds at stadiums or convention centers.
- Judicial & Government Buildings: Maintaining a sterile environment for public safety.
Conclusion: Invest in Authoritative Security
Investing in the VARITO XR3E-6550C is a statement of professional intent. It shows that your organization prioritizes the safety of its people and assets through superior technology. With the global reputation of the VARITO brand and the technical prowess of the 140kV imaging system, you are not just buying a scanner, you are securing your future.
Frequently Asked Questions (FAQs)
1. Is the 140kV model enough for airport security? Yes, 140kV is the industry standard for cabin baggage and medium-sized luggage. For heavy cargo or lead-lined containers, some facilities opt for the 160kV version, but the 140kV is perfect for 95% of standard security needs.
2. Can this machine be integrated with a local network? Absolutely. The system supports LAN connectivity, allowing security managers to monitor scans from a central control room.
3. What is the maintenance schedule for a VARITO scanner? We recommend a monthly cleaning of the optical sensors and a quarterly calibration of the X-ray generator to ensure the highest image quality and safety compliance.
4. Does it emit high levels of radiation? No. The leakage radiation is less than 1 µGy/h at 5cm from the outer panels, which is well below international safety standards for operators and the public.
5. How does the machine handle “Organic” threat detection? The dual-energy sensors specifically highlight materials with low atomic numbers (like explosives and narcotics) in a distinct orange color, helping the operator identify threats
