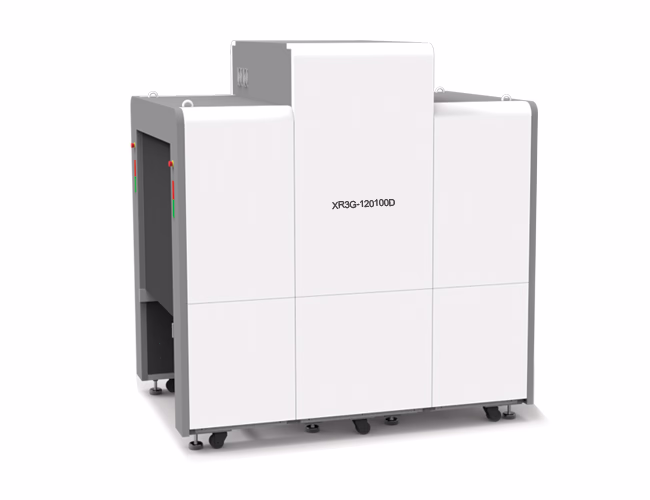

VARITO XR3G-120100D High-Speed Gantry X-ray Inspection System
VARITO XR3G-120100D High-Speed Gantry X-ray Inspection System is a multi-energy X-ray independently developed and manufactured by our company. It integrates advanced functions such as high-speed transmission, intelligent detection, automatic processing and information networking. Featuring cutting-edge technology and a visual touchscreen interface, it is characterized by “high speed, intelligence and automation.” Capable of conducting security inspections on express parcels and various types of luggage, it is widely used in public security inspection venues such as postal and courier services, rail transit and industrial production.
Product Details:
| Brand | VARITO |
| Model | XR3G-120100D |
| Brand Origin | Germany |
| Dimensions | 1200mm×1000mm(W×H |
| Penetration Capability | 42mm steel plate |
| X-ray Source |
160-200 kV |
Many Features
The equipment uses infrared sensing
The equipment uses infrared sensing to automatically adjust the conveyor belt height,
Penetration Capability
42mm steel plate
Capable of penetrating complex materials
Capable of penetrating complex materials and Al- enabled to identify potential risks,it achieves organic/inorganic material layered imaging
Demonstrates robust quality
Demonstrates robust quality,providing global customers with a transparent,reliable basis for procurement decisions and highly precise,efficient security inspection solutions
Specification
| Parameter | Specification |
|---|---|
| Channel Size | 1200mm×1000mm (W×H) |
| Penetration Capability | 42mm steel plate |
| X-ray Source | 160–200 kV, 1.0–2.5 mA |
| Equipment Weight | 1300 kg |
| Conveyor Belt Speed | 0.5 / 1.0 / 1.5 / 2.0 m/s |
| Equipment Dimensions | 2080mm×2100mm×1950mm (L×W×H) |
| Wire Resolution | AWG 38 (φ0.102mm) |
| Spatial Resolution | Horizontal: 1.3mm; Vertical: 1.3mm |
| Single Inspection Dose | <5 μGy/h |
| X-ray Beam Direction | Top irradiation |
| Display | High-resolution 21.5-inch LCD display |
| Conveyor Belt Height | 320mm (from ground) |
| Energy-saving & Eco-design | Automatic object sensing; conveyor operates when luggage is present, stops when idle; lead curtain coated with protective film to prevent contamination and extend service life. |
| Image Processing | Color/B&W, Layer Enhancement, High/Low Penetration, Super Enhancement, Organic Material Extraction, Inorganic Material Removal, Image Reversal, Brightness/Darkness Adjustment, Grayscale Sweep, Zoom, Pseudo-color, Image Restoration, Image Save/Export. |
| One-touch Shutdown | Key-operated shutdown enables automatic safety shutdown, reducing equipment failure. |
| Multi-energy Color Display | Organic: Orange; Inorganic: Blue; Mixed: Green. |
| Penetration Display & Switching | Enhances contrast in bright/dark areas for clearer penetration zones. |
| Self-diagnosis Function | Automatic fault detection with prompt messages for easy maintenance. |
| Optional Functions | AI-assisted recognition of controlled knives, flammable/explosive hazardous items; Camera Solution: Real-time video recording of items for person-package association, facilitating lost item retrieval. |
| Storage Temp/Humidity | -20℃ to 40℃ / 0% to 90% RH (non-condensing) |
| Operating Temp/Humidity | 5℃ to 40℃ / 10% to 90% RH (non-condensing) |
| Unique Functions | Date/time display, operational status, multi-level user management, image management, baggage counting, emergency stop, startup self-test, network interface, TIP management, remote operation software, multi-format image export, curve diagnosis. |
Product Description
Ability to screen massive shipments without losing detail is a mechanical necessity
Dual-Source Dual-View: Eliminating Blind Spots
The XR3G-120100D features a high-speed gantry design, allowing vehicles and large cargo to pass through the system without stopping. This significantly increases throughput while maintaining precise inspection accuracy.
1. Eliminating Blind Spots: By providing two distinct viewing angles, the system ensures that objects hidden behind dense materials in one view are clearly visible in the other.
2. Rapid Threat Detection: Dual-view technology significantly reduces the need for manual bag re-orientation, speeding up the security line and improving accuracy.
3. High-Speed Drive-Through Gantry System for seamless vehicle inspection
Heavy-Duty Engineering for Industrial Logistics
1. Large Inspection Tunnel (1200mm x 1000mm) for versatile applications
2. Advanced Image Processing Technology for clear, high-resolution scans
3. Eco-Friendly Operation: Features a power-saving mode that reduces energy consumption during idle periods, extending the life of the X-ray tube.
4. High Penetration Capability for dense cargo and vehicles
We Provide Multiple Solutions
Can integrate a variety of access control equipments
Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work
Product Details and Dimensions
All the details and dimensions can be customized according to your project site
More Information
Smart Access Control Solution for Modern Security
VARITO XR3G-120100D High-Speed Gantry X-ray Inspection System
In today’s fast-paced security landscape, high-speed and high-accuracy inspection systems are essential for ensuring safety without disrupting operations. The VARITO XR3G-120100D High-Speed Gantry X-ray Inspection System is engineered to meet these demands, offering advanced scanning capabilities for cargo, vehicles, and large-scale security checkpoints. Powered by the globally trusted VARITO brand, this system delivers a perfect balance of performance, reliability and innovation.
Advanced Gantry X-ray Technology for High-Speed Screening
The XR3G-120100D features a high-speed gantry design, allowing vehicles and large cargo to pass through the system without stopping. This significantly increases throughput while maintaining precise inspection accuracy.
Equipped with multi-energy X-ray imaging, the system can clearly distinguish between different material types such as organic, inorganic, and mixed substances. This ensures efficient detection of threats including explosives, weapons, and contraband items.
1. Eliminating Blind Spots: By providing two distinct viewing angles, the system ensures that objects hidden behind dense materials in one view are clearly visible in the other.
2. Rapid Threat Detection: Dual-view technology significantly reduces the need for manual bag re-orientation, speeding up the security line and improving accuracy.
3. Heavy Duty Performance: Equipped with a reinforced conveyor system, this VARITO X-Ray Baggage Scanner can handle heavy loads with consistent, smooth movement.
4. Multi-Energy Imaging: The VARITO XR3G-120100D utilizes multi-energy technology to differentiate between organic, inorganic, and metallic materials, highlighting threats like explosives or contraband in intuitive color codes.
Heavy-Duty Engineering for Industrial Logistics
The VARITO XR3G-120100D is built to handle the physical demands of massive freight. Every component is optimized for industrial-scale throughput:
1. Massive Tunnel Size: The 1200mm (W) x 1000mm (H) aperture is designed to accommodate standard industrial pallets and oversized crates that other scanners simply cannot fit.
2. High-Capacity Conveyor: Built with reinforced steel rollers and heavy-duty motors, the conveyor system handles extreme weights, making it perfect for bulk air cargo and shipping containers.
3. Advanced Software Suite: This VARITO X-Ray Baggage Scanner includes a suite of image-enhancement tools, allowing operators to zoom, sharpen, and invert colors for high-precision forensic analysis.
Key Features & Benefits
* High-Speed Drive-Through Gantry System for seamless vehicle inspection
* Large Inspection Tunnel (1200mm x 1000mm) for versatile applications
* Advanced Image Processing Technology for clear, high-resolution scans
* High Penetration Capability for dense cargo and vehicles
* Automated Detection Assistance for improved operator efficiency
* Rugged Industrial Construction for long-term durability
These features make it an ideal choice for organizations seeking high-capacity, high-precision security screening systems.
Built with VARITO Brand Excellence
When you invest in VARITO, you invest in reliability, innovation, and global-standard security technology. VARITO has built a strong reputation for delivering advanced security solutions tailored to modern challenges.
To create a complete security ecosystem, VARITO also offers complementary systems such as:
1. VARITO Access Control System
2. VARITO Tripod Turnstile Gate
3. VARITO Boom Barrier Gate
4. VARITO Metal Detector Gate
These solutions can be seamlessly integrated with the XR3G-120100D to establish a multi-layered security infrastructure.
Ideal Applications of Baggage Scanner
- Airports & Customs: For out-of-gauge (OOG) baggage and customs clearance.
- Logistics Hubs: Screening inbound and outbound freight for dangerous goods.
- Critical Infrastructure: Protecting power plants and military bases from large-scale threats.
- Event Logistics: Scanning equipment crates for concerts, exhibitions, and sporting events.
Why Choose VARITO Security Inspection Equipment?
Investing in the XR3G-120100D allows organizations to enhance both security efficiency and operational flow. By reducing inspection time and increasing throughput, businesses can maintain productivity while ensuring safety compliance.
Targeting SEO keywords such as “High-Speed Gantry X-ray Scanner,” “Vehicle X-ray Inspection System,” and “VARITO X-ray Security Equipment” can help this product page rank higher on Google and attract potential buyers actively searching for advanced security solutions.
Conclusion: Invest in Authoritative Security
The VARITO XR3G-120100D High-Speed Gantry X-ray Inspection System is a powerful and future-ready solution for modern security challenges. With its high-speed operation, advanced imaging technology, and strong VARITO brand backing, it is an ideal choice for organizations seeking reliable and efficient inspection systems.
Frequently Asked Questions (FAQs)
1. How does Dual-View technology improve threat detection? It provides two perspectives of the same object. If a threat is “hidden” by a dense metal object in the horizontal view, it will likely be visible in the vertical view, ensuring no item goes unvetted.
2. Can this machine handle heavy industrial pallets? Yes. The 1200x1000mm tunnel and reinforced conveyor are specifically sized for standard pallets used in air and sea freight logistics.
3. Is the XR3G-120100D safe for food and electronics? Absolutely. The X-ray dosage is strictly controlled to meet international ISO and CE safety standards, making it safe for all organic products and sensitive electronics.
4. Does it support automatic threat highlighting? Yes. The VARITO software includes AI-assisted features that automatically highlight high-density objects and potential organic threats, helping operators make split-second decisions.
5. How much space is required for installation? Due to its large capacity, this unit requires a dedicated logistics area. VARITO experts provide full site assessment and installation support to ensure a seamless integration into your workflow.
