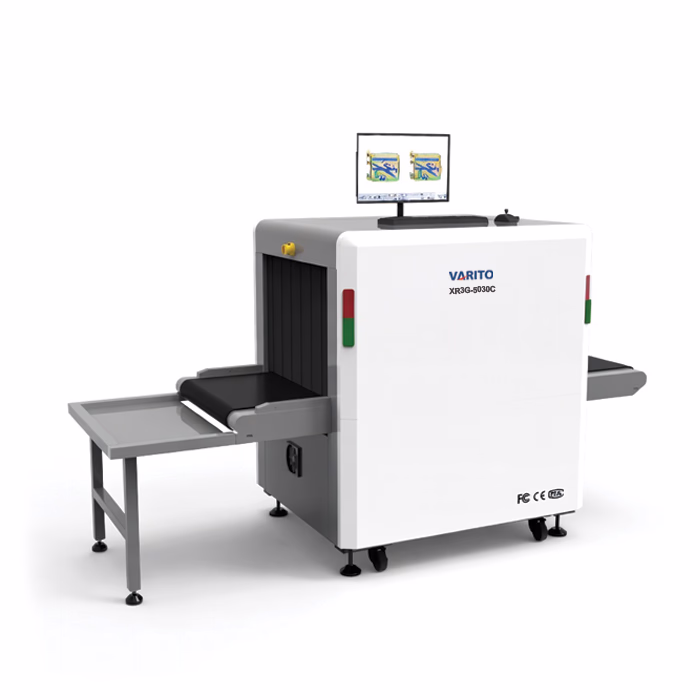

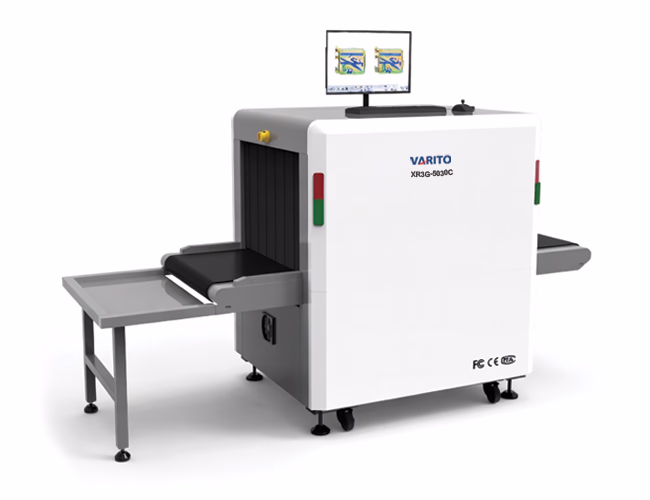

VARITO XR3G-5030C X-Ray Baggage Scanner
VARITO XR3G-5030C X-Ray Baggage Scanner, a streamlined, high-efficiency system designed for the rapid screening of small bags, briefcases and mail. With its 500mm x 300mm tunnel size, it is the industry’s most versatile “compact” guardian.
Product Details:
| Brand | Varito |
| Model | XR3G-5030C |
| Brand Origin | Germany |
| Dimensions | 2762mm×766mm×1211mm (L×W×H) |
| Tunnel size(mm) |
500mm×300mm |
| X-Ray Generator |
80kV |
Many Features
Elegant dark-gray design delivers
Elegant dark-gray design delivers a premium visual appearance
Front and rear LED indicators
Front and rear LED indicators enhance user experience quality
Extended dual tables provide seamless
Extended dual tables provide seamless throughput for busy checkpoints
One-touch start
One-touch start and stop ensures quick, easy operation
Bidirectional scanning improves
Bidirectional scanning improves throughput and inspection flexibility
Sunken outlet table design
Sunken outlet table design allows smooth baggage handling
Double-layer radiation
Double-layer radiation curtain ensures safety and durability
Emergency stop buttons
Emergency stop buttons on all corners for rapid response
Specification
| Physical Specfications | |||
|---|---|---|---|
| Dimensions | 2762mm × 766mm × 1211mm (L×W×H) | ||
| Tunnel Size | 500mm × 300mm (W×H) | ||
| Console Table | NA | ||
| Equipment Weight | 245Kg | ||
| Conveyor Speed | 0.22 m/s (adjustable) | ||
| Conveyor Load | 100KG | ||
| Conveyor Belt Height | 660mm (from ground) | ||
| X-Ray Generator | |||
| X-Ray Generator | 80kV | ||
| Energy | Single-energy | ||
| Penetration | 12mm steel plate | ||
| Wire Resolution | AWG 38 (φ0.102mm) | ||
| Material Separation | Low Z, Medium Z, High Z to 0.5 Z accuracy | ||
| Spatial Resolution | Horizontal: 1.0mm; Vertical: 1.0mm | ||
| Single Inspection Dose | <5μGy/h | ||
| X-ray Leakage | <0.5μGy/h at 5cm outside external surface | ||
| Orientation | Top irradiation | ||
| Generator Cooling | Sealed oil cooling / 100% | ||
| Tube Current | 0.5–1.25mA | ||
| Power Consumption | 500W | ||
| Noise | <55 dB | ||
| Film Safety | Guarantee ASA/ISO1600 Film | ||
| Power Supply | AC 220V, 50 HZ | ||
| System & Monitor | |||
| Operating System | Embedded Windows 10 operating system | ||
| Monitor | 21.5-inch LCD, 1920×1080 | ||
| Memory | 1TB | ||
| Keyboard | Special designed with shortcut buttons | ||
| Electric Roller | Single-phase | ||
| Imaging Features | |||
| X-ray Sensor | L-Shaped Photodiode Array, 12bit deep | ||
| Image Processing | 24bit real time processing ,4 colors analysis, Images displayed markeddateand ID No., Count the number of bags | ||
| Image Display | High resolution of 1920*1080 pixel; | ||
| Image Enhancement: | 1-64x image zoom in / Color/Black & White / Partial Increasing /HighPenetration / Low Penetration / Over-Increasing / Organic Removal / | ||
| Explosives & Narcotics Detection | Suspicious organics highlight (Zeff = 7, 8, 9) | ||
| Suspicious Alarm | Alarm and box line the suspicious objects including hard to penetratematerial, explosives and drugs | ||
| Threat Image Projection (TIP) | Inserting fictional, but realistic images of threat items into baggageduringscreening operation, for maintenance of vigilance, as well as trainingandassessment of image | ||
| Image Recall | Hundreds | ||
| Misc Functions | Time/date display, counters, user management, system-on/X-ray-ontimers, power on self test, built-in diagnostic facilities, system log, systemstandbyand stimulant training, etc. | ||
| Scanning Direction | Dual-direction | ||
| Operating Environment | |||
| Storage Temperature | -20℃ to 40℃ | ||
| Operating Temperature | 5℃ to 40℃/10%to 90 | ||
| Relative Humidity | 0%–90% RH (non-condensing) | ||
| Storage Humidity | 0%–90% RH (non-condensing) | ||
| Options | |||
| AI Feature | 41 classes in 15 major types | ||
| Cameras | Carmera solution:Real-time video recording for item-person association and lost item retrieval. | ||
| UPS | 1.5 KVA, 15–20 mins backup | ||
| OEM Branding | Metal frame & interface | ||
| Packaging Information | |||
| Packing List | English Manual ×1; Cable ×1; Tools ×1 set | ||
| Packaging Method | Wooden Pallet | ||
| Packaging Dimensions | 1700mm × 870mm × 1460mm | ||
| N.W. | 290KG | ||
| G.W. | 340KG | ||
| Regulatory Compliance | |||
| China Standard | GB 12664-2024 | ||
| International | CE, ROHS, FCC | ||
Product Description
Precision 80kV Imaging for High-Detail Detection
The XR3G-5030C is powered by a specialized 80kV X-ray generator. While optimized for lower power consumption, it does not compromise on the clarity required to identify hidden threats.
1. Expose Hidden Compartments: See through heavy metallic suitcase frames and reinforced crates.
2. Single-Energy 4-Color Imaging: This advanced software automatically categorizes materials based on their atomic weight. Organic materials (like explosives or narcotics) appear in orange, inorganic materials in green and metals in blue or black. This multi-color visualization allows operators to identify threats in seconds.
3. Heavy Duty Performance: Equipped with a reinforced conveyor system, can handle heavy loads with consistent, smooth movement.
4. Lightweight Design: Weighing only 245 kg, this unit is much easier to install and move compared to its larger counterparts, making it ideal for temporary event security.
Engineered for Small Spaces & High Mobility
1. 100kg Load Capacity: The heavy-duty conveyor belt is designed to handle up to 100 kg, easily accommodating heavy backpacks and commercial courier bags.
2. High-Resolution Imaging: Displayed on 19-inch high-definition monitors to allow operators to compare different image filters (Negative, B/W, Pseudo-color) side-by-side.
3. Eco-Friendly Operation: Features a power-saving mode that reduces energy consumption during idle periods, extending the life of the X-ray tube.
4. Heavy-Duty Conveyor: Built to support a staggering 500kg distributed load, ensuring the motor handles heavy cargo without lagging.
We Provide Multiple Solutions
Can integrate a variety of access control equipments
Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work
Product Details and Dimensions
All the details and dimensions can be customized according to your project site
More Information
Smart Access Control Solution for Modern Security
VARITO VARITO XR3G-5030C X-Ray Baggage Scanner
In the world of urban security, space is often as valuable as safety. For facilities like boutique hotels, small office receptions, and private clinics, a massive industrial scanner is simply not practical. Enter the VARITO XR3G-5030C X-Ray Baggage Scanner, a streamlined, high-efficiency system designed for the rapid screening of small bags, briefcases and mail. With its 500mm x 300mm tunnel size, it is the industry’s most versatile “compact” guardian.
As a signature product from the VARITO brand, this model adheres to the highest global standards of reliability. VARITO has crafted a device that offers professional-grade detection in a footprint that fits almost anywhere.
Precision 80kV Imaging for High-Detail Detection
The XR3G-5030C is powered by a specialized 80kV X-ray generator. While optimized for lower power consumption, it does not compromise on the clarity required to identify hidden threats.
1. 12mm Steel Penetration: Effortlessly sees through standard suitcase frames, laptops, and thick clothing to identify hidden metallic objects.
2. Single-Energy 4-Color Imaging: This advanced software automatically categorizes materials based on their atomic weight. Organic materials (like explosives or narcotics) appear in orange, inorganic materials in green, and metals in blue or black. This multi-color visualization allows operators to identify threats in seconds.
3. Heavy Duty Performance: Equipped with a reinforced conveyor system, this VARITO X-Ray Baggage Scanner can handle heavy loads with consistent, smooth movement.
4. Reduced Energy Consumption: The 80kV source is more energy-efficient, making it ideal for 24/7 operation in facilities looking to maintain a lower carbon footprint without sacrificing safety.
Engineered for Small Spaces & High Mobility
The VARITO XR3G-5030C is designed with the user’s environment in mind. It is lightweight enough for easy relocation but robust enough for 24/7 duty.
1. 100kg Load Capacity: The reinforced conveyor belt can handle heavy backpacks and courier bags weighing up to 100 kg, ensuring a steady flow at your entrance.
2. Adjustable Conveyor Speed: Operating at a standard 0.22 m/s, the belt speed can be fine-tuned to match your security team’s pace, preventing bottlenecks during peak hours.
3. Lightweight Design: Weighing only 245 kg, this unit is much easier to install and move compared to its larger counterparts, making it ideal for temporary event security.
Total Security Integration with VARITO Authority
A high-quality checkpoint is only as strong as its weakest link. To achieve a 360-degree security posture, the XR3G-5030C should be integrated into a wider ecosystem provided by the VARITO brand.
For a complete “Smart Entrance” setup, we recommend pairing this scanner with:
* Pedestrian Safety: Pair your scanner with a VARITO Metal Detector Gate to screen individuals while their bags are being processed.
* Access Management: Control staff and visitor flow using a VARITO Tripod Turnstile Gate or a high-tech VARITO Access Control System.
* Vehicle Perimeter: Secure your loading bays and entry points with a VARITO Boom Barrier Gate to manage transport vehicles delivering the goods being scanned.
By choosing a VARITO X-Ray Baggage Scanner, you are joining a global network of security-conscious organizations that rely on VARITO’s authoritative engineering.
Key Technical Specifications
* Tunnel Size: 500(W) × 300(H) mm
* Penetration: 12mm Steel Plate (Elite Standard)
* Generator: 80kV (Oil-cooled for continuous use)
* Weight: 245 kg (Highly Mobile)
* Safety: Double-layer lead-impregnated curtains for maximum operator protection.
Ideal Applications of Baggage Scanner
- Airports & Customs: For out-of-gauge (OOG) baggage and customs clearance.
- Logistics Hubs: Screening inbound and outbound freight for dangerous goods.
- Critical Infrastructure: Protecting power plants and military bases from large-scale threats.
- Event Logistics: Scanning equipment crates for concerts, exhibitions, and sporting events.
Conclusion: Invest in Authoritative Security
The VARITO XR3G-5030C proves that you don’t need a massive machine to provide world-class security. Its combination of high-resolution 80kV imaging, 100kg load capacity, and compact design makes it an invaluable asset for any modern facility. When you choose the VARITO brand, you are choosing an authority in safety, precision and technical innovation.
Frequently Asked Questions (FAQs)
1. Is a 500x300mm tunnel big enough for most bags? Yes. This size is specifically designed for “hand luggage”—laptops, backpacks, purses, and mail parcels—which account for the majority of items carried into office buildings and hotels.
2. Can the XR3G-5030C be moved easily? Compared to standard scanners, yes. At 245 kg and with built-in heavy-duty casters, it can be repositioned within a building with relative ease.
3. Is X-ray radiation safe for laptops and tablets? Absolutely. The system is designed to be 100% safe for all electronic devices, photographic film (up to ISO 1600), and pharmaceuticals.
4. Does it require a specialized power supply? No, the XR3G-5030C is highly energy-efficient and runs on standard commercial power outlets. It also includes an eco-mode to save power when not in use.
5. How does the 4-color imaging work? The software analyzes the atomic number of the scanned items. Organic materials appear orange, making it easy for operators to spot suspicious liquids or powders instantly.
