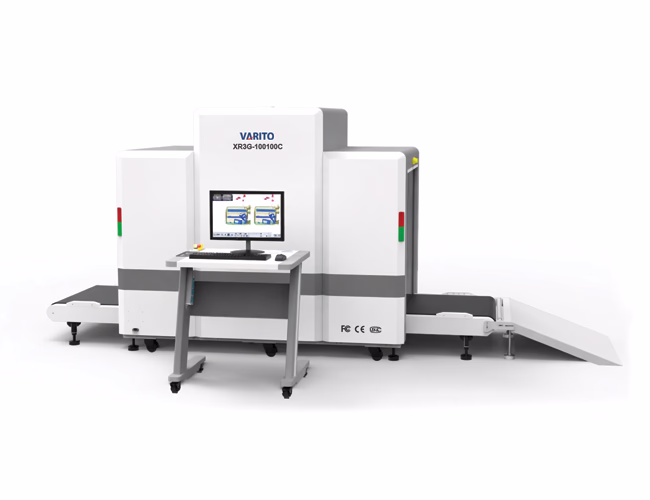

VARITO XR3G-100100C X-Ray Baggage Scanner
The defining feature of the XR3G-100100C is its expansive 1000mm (width) by 1000mm (height) tunnel. This “One Meter Square” aperture is the industry standard for bulk screening.
Product Details:
| Brand: | VARITO |
| Model | XR3G-100100C |
| Brand Origin: | Germany |
| Dimensions: | 2080mm×2100mm×1950mm |
| Penetration Capability | 12mm steel plate |
| X-ray Source |
80-100 kV,0.5 mA |
Many Features
The equipment uses infrared sensing
The equipment uses infrared sensing to automatically adjust the conveyor belt height,
Penetration Capability
42mm steel plate
Capable of penetrating complex materials
Capable of penetrating complex materials and Al- enabled to identify potential risks,it achieves organic/inorganic material layered imaging
Demonstrates robust quality
Demonstrates robust quality,providing global customers with a transparent,reliable basis for procurement decisions and highly precise,efficient security inspection solutions
Specification
| Parameter | Model XR3G-100100C |
|---|---|
| Channel Size | 1000mm×1000mm (W×H) |
| Penetration Capability | 40mm steel plate |
| X–ray Source | 140-160 kV,0.5-25 mA |
| Equipment Weight | 750 kg |
| Conveyor Belt Speed | 0.2 m/s (adjustable) |
| Equipment Dimensions | 3300mm×1360mm×1760mm (L×W×H) |
| Wire Resolution | AWG 38 (⌀0.102mm) |
| Spatial Resolution | Horizontal: 1.0mm; Vertical: 1.0mm |
| Single Inspection Dose | <5 μGy/h |
| X–ray Beam Direction | Top irradiation |
| Display | High-resolution 21.5-inch LCD display |
| Conveyor Belt Height | 310mm (from ground) |
| Energy-saving & Eco-design | Automatic object sensing; conveyor runs when luggage present, stops when idle. Lead curtain coated with protective film to avoid contamination and extend service life. |
| Image Processing | Color/B&W, Layer Enhancement, High/Low Penetration, Super Enhancement, Organic Material Extraction, Inorganic Material Removal, Color Inversion, Brightness Adjustment, Grayscale Sweep, Zoom, Pseudo-color, Image Restoration, Save Export. |
Product Description
Superior Penetration and Clarity
The defining feature of the XR3G-100100C is its expansive 1000mm (width) by 1000mm (height) tunnel. This “One Meter Square” aperture is the industry standard for bulk screening.
1. Oversized Check-in Luggage: No more manual checks for bulky sports gear or large trunks.
2. Commercial Cargo: Ideal for scanning boxes and shrink-wrapped goods in warehouse environments.
3. Consolidated Mail: Efficiently processes large sacks of mail or courier parcels in one pass.
Building a Unified Security

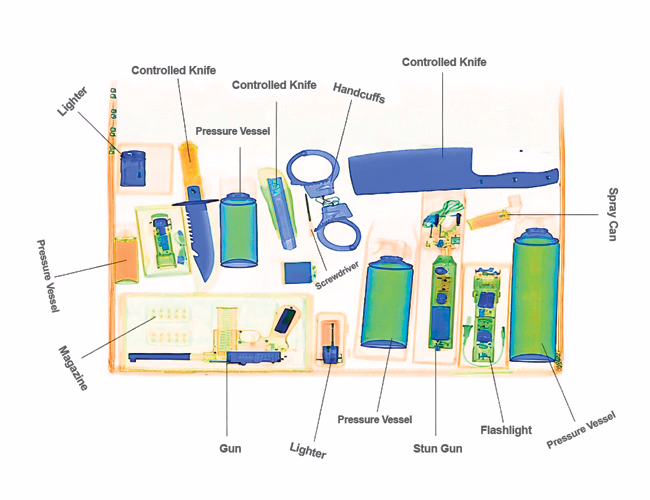

1. Dual-Energy Detection: Uses advanced sensors to color-code materials (Organic = Orange, Inorganic = Green, Metal = Blue).
2. High-Resolution Imaging: Displayed on 19-inch high-definition monitors to allow operators to compare different image filters (Negative, B/W, Pseudo-color) side-by-side.
3. Eco-Friendly Operation: Features a power-saving mode that reduces energy consumption during idle periods, extending the life of the X-ray tube.
4. Heavy-Duty Conveyor: Built to support a staggering 700kg to 750kg distributed load, ensuring the motor handles heavy cargo without lagging.
We Provide Multiple Solutions
Can integrate a variety of access control equipments

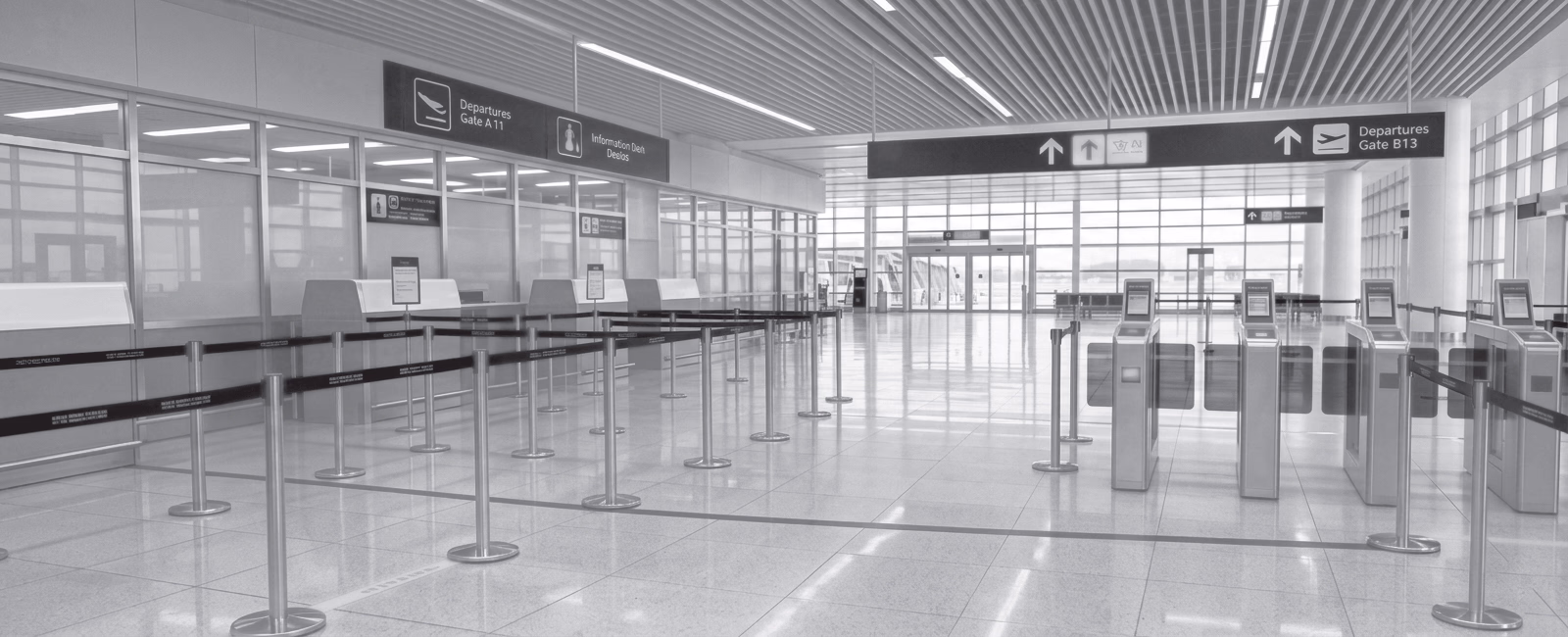

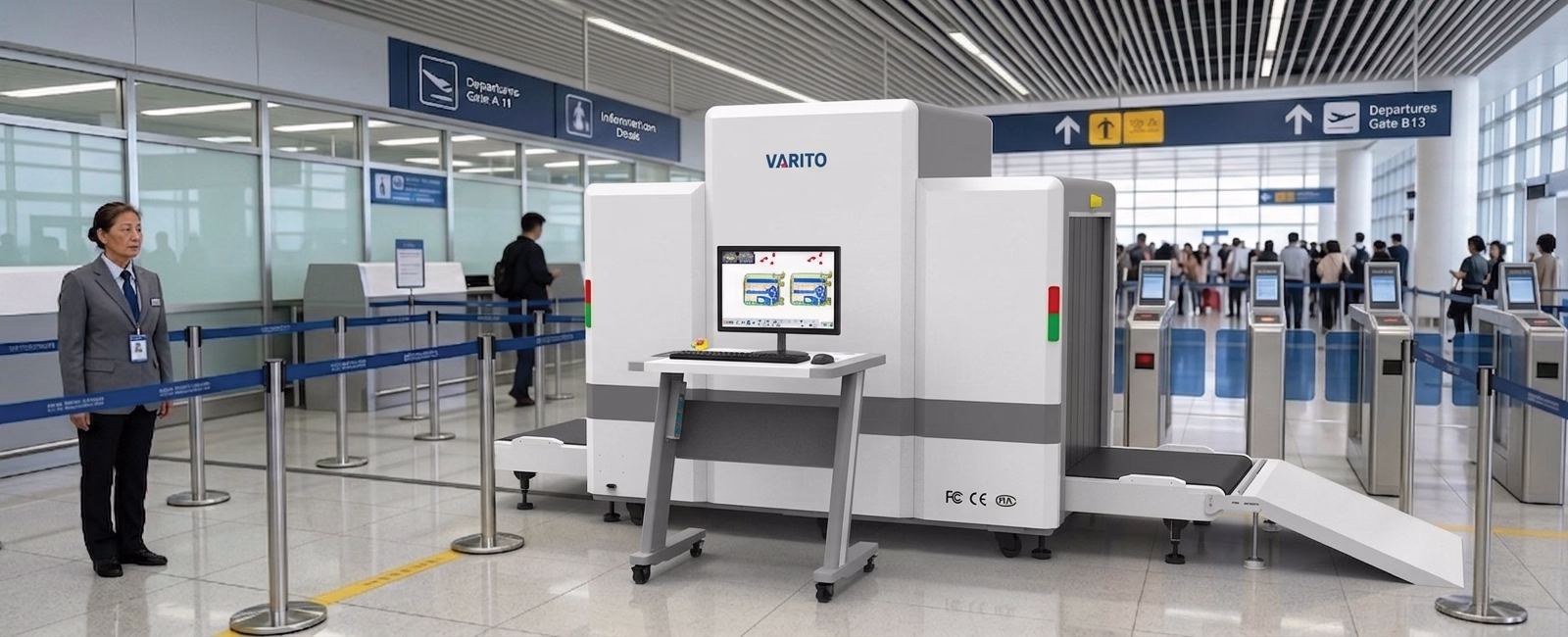

Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work

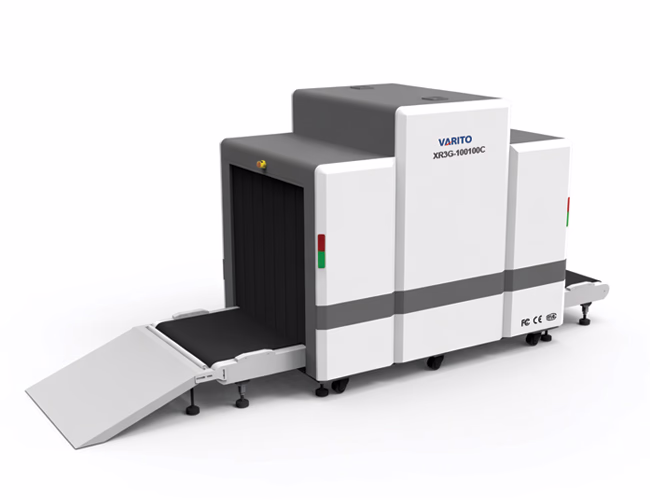

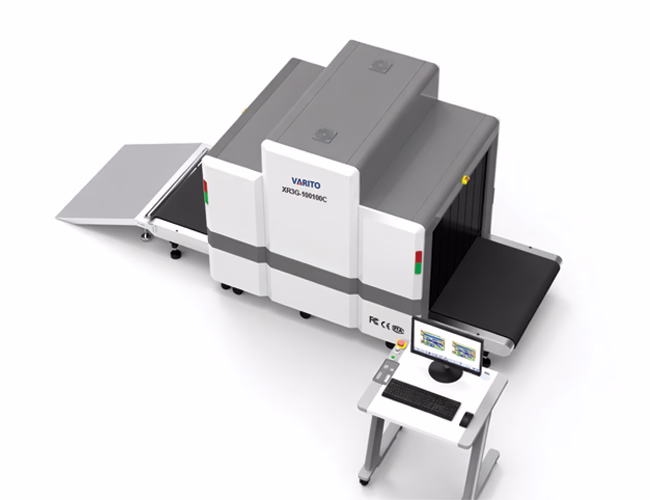

Product Details and Dimensions
All the details and dimensions can be customized according to your project site
More Information
Smart Access Control Solution for Modern Security
VARITO XR3G-100100C X-Ray Baggage Scanner
When it comes to securing high-traffic zones like international airports, seaports, and industrial logistics centers, standard-sized scanners often fall short. Enter the VARITO XR3G-100100C X-Ray Baggage Scanner, a high-performance system specifically engineered to handle oversized luggage, large parcels and even small pallets.
As a cornerstone of the VARITO brand’s security lineup, the XR3G-100100C combines a massive tunnel opening with elite-level penetration power. It is designed to meet the rigorous standards by providing a professional-grade screening experience that users and security experts trust globally.
Unmatched Capacity: 1000mm x 1000mm Tunnel
The defining feature of the XR3G-100100C is its expansive 1000mm (width) by 1000mm (height) tunnel. This “One Meter Square” aperture is the industry standard for bulk screening. It allows for the seamless inspection of:
Oversized Check-in Luggage: No more manual checks for bulky sports gear or large trunks.
Commercial Cargo: Ideal for scanning boxes and shrink-wrapped goods in warehouse environments.
Consolidated Mail: Efficiently processes large sacks of mail or courier parcels in one pass.
Precision Engineering & High Penetration
Despite its size, the VARITO X-Ray Baggage Scanner does not compromise on detail. Equipped with a powerful X-ray generator, the system achieves deep penetration (up to 40mm-43mm of steel), ensuring that even within a large, crowded crate, hidden threats like weapons, explosives, or contraband are clearly identified.
1. Dual-Energy Detection: Uses advanced sensors to color-code materials (Organic = Orange, Inorganic = Green, Metal = Blue).
2. High-Resolution Imaging: Displayed on 19-inch high-definition monitors to allow operators to compare different image filters (Negative, B/W, Pseudo-color) side-by-side.
3. Heavy-Duty Conveyor: Built to support a staggering 700kg to 750kg distributed load, ensuring the motor handles heavy cargo without lagging.
Integrating a Total Security Infrastructure
The VARITO brand is synonymous with “Total Access Control.” To build a world-class security checkpoint, the XR3G-100100C should be integrated with other specialized hardware.
For comprehensive pedestrian safety, we recommend installing a VARITO Metal Detector Gate at the entrance. To manage the flow of personnel and contractors, a VARITO Access Control System linked to a VARITO Tripod Turnstile Gate provides a foolproof barrier against unauthorized entry.
Furthermore, for outdoor perimeter and logistics safety, the VARITO Boom Barrier Gate is the perfect companion to manage vehicle traffic at loading docks where these large scanners are typically deployed.
Ideal Applications of Baggage Scanner
- Airports & Customs: For out-of-gauge (OOG) baggage and customs clearance.
- Logistics Hubs: Screening inbound and outbound freight for dangerous goods.
- Critical Infrastructure: Protecting power plants and military bases from large-scale threats.
- Event Logistics: Scanning equipment crates for concerts, exhibitions, and sporting events.
Conclusion: Invest in Authoritative Security
The VARITO XR3G-100100C is more than just a machine, it is a high-capacity sentinel for your facility. Its ability to process large items quickly without sacrificing image quality makes it an invaluable asset for high-stakes environments. When you choose the VARITO brand, you are choosing a legacy of reliability, technical expertise and superior protection.
Frequently Asked Questions (FAQs)
1. Can the XR3G-100100C handle heavy industrial pallets? Yes, its conveyor is reinforced to handle up to 200kg standard (upgradable for higher loads), making it suitable for small-to-medium industrial pallets and crates.
2. Does this scanner help in identifying liquid explosives? Absolutely. The dual-energy imaging system is highly sensitive to atomic numbers, allowing it to highlight liquid threats in a distinct orange color for further inspection.
3. Is it possible to save and export scan images for investigations? Yes, the system features a massive internal storage capacity (over 100,000 images) and supports USB/LAN export for forensic review.
4. What are the space requirements for installation? Due to the 1000x1000mm tunnel, this unit has a larger footprint than standard scanners. It is best suited for loading bays, dedicated security checkpoints, or warehouse entrances.
5. How safe is it for operators working nearby? VARITO scanners adhere to the strictest international safety standards. Radiation leakage is negligible, and lead curtains at both ends of the tunnel ensure maximum protection for the public and staff.
