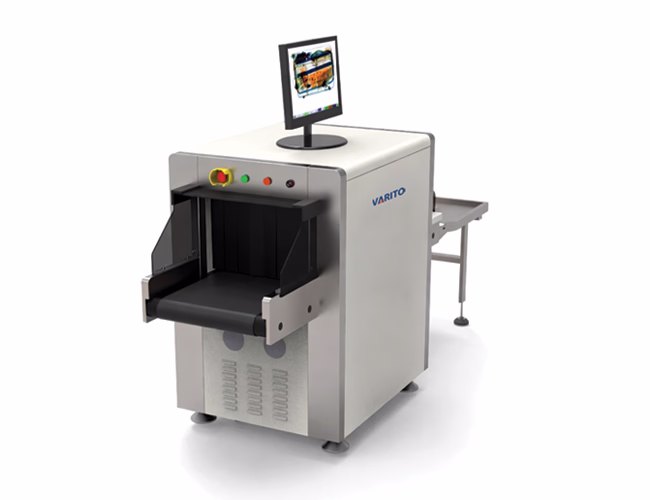

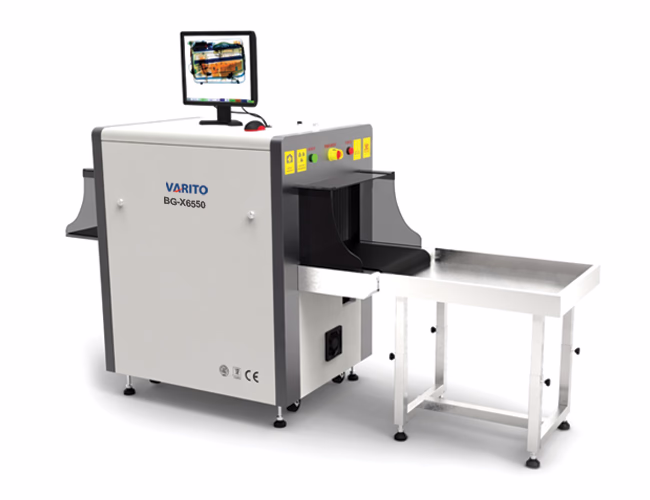

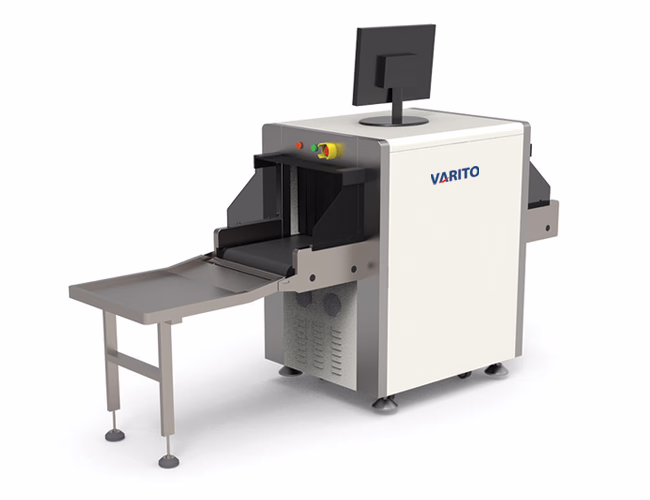

VARITO BG-X6550 X-Ray Baggage Scanner
VARITO BG-X6550 X-ray baggage scanner series features a unique design and delivers exceptional image clarity, making it a top choice for security inspections. Available in classic tunnel sizes of 5030 and 6550, these machines can be equipped with powerful X-ray sources of 80kV and 140kV to meet varying security needs. Customization options ensure that each unit can be tailored to specific applications, enhancing its effectiveness in detecting threats in baggage and cargo. Ideal for airports, border controls, and high-security areas, our X-ray machines are pivotal in ensuring safety and compliance.
Product Details:
| Brand | VARITO |
| Model | BG-X6550 |
| Brand Origin | Germany |
| Display | High Resolution Color Display |
| Tunnel size(mm) |
650（W) × 500（H）mm |
| X-Ray Generator |
140kV |
Many Features
Display:
Display: High Resolution Color Display
Dual Energy
Dual Energy, L-shaped array detector
Detector crystal
Japan HAMMATSU detector crystal , Detecting board from Deetee Finland.
IPC from Taiwan
IPC from Taiwan , Interroll Roller from German
High-resolution
High-resolution PHILIP 19 inch color LCD display
Four colors
Four colors to distinguish organic , inorganic and dangerous material
Multiple functions
Multiple functions: High/Low penetration display, Magnifier, Brightening/dimming,
Image enlarge, recurrence, restoration
Image enlarge, recurrence, restoration, storage, network
Specification
| Physical Specfications | |||
|---|---|---|---|
| Dimensions | 2762mm × 766mm × 1211mm (L×W×H) | ||
| Tunnel Size | 650mm × 500mm (W×H) | ||
| Console Table | NA | ||
| Equipment Weight | 245Kg | ||
| Conveyor Speed | 0.22 m/s (adjustable) | ||
| Conveyor Load | 170KG | ||
| Conveyor Belt Height | 660mm (from ground) | ||
| X-Ray Generator | |||
| X-Ray Generator | 140kV | ||
| Energy | Dual-energy | ||
| Penetration | 38mm steel plate | ||
| Wire Resolution | AWG 38 (φ0.102mm) | ||
| Material Separation | Low Z, Medium Z, High Z to 0.5 Z accuracy | ||
| Spatial Resolution | Horizontal: 1.0mm; Vertical: 1.0mm | ||
| Single Inspection Dose | <5μGy/h | ||
| X-ray Leakage | <0.5μGy/h at 5cm outside external surface | ||
| Orientation | Top irradiation | ||
| Generator Cooling | Sealed oil cooling / 100% | ||
| Tube Current | 0.5–1.25mA | ||
| Power Consumption | 500W | ||
| Noise | <55 dB | ||
| Film Safety | Guarantee ASA/ISO1600 Film | ||
| Power Supply | AC 220V, 50 HZ | ||
| System & Monitor | |||
| Operating System | Embedded Windows 10 operating system | ||
| Monitor | 18.5-inch LCD, 1920×1080 | ||
| Memory | 1TB | ||
| Keyboard | Special designed with shortcut buttons | ||
| Electric Roller | Single-phase | ||
| Imaging Features | |||
| X-ray Sensor | L-Shaped Photodiode Array, 12bit deep | ||
| Image Processing | 24bit real-time processing, 4 colors analysis, date & ID display, bag counter | ||
| Image Display | 1920×1080; 1–64× zoom; Color/B&W; Partial Increasing; High/Low Penetration; Over-Increasing; Organic Removal | ||
| Explosives & Narcotics Detection | Suspicious organics highlight (Zeff = 7, 8, 9) | ||
| Suspicious Alarm | Alarm + box line for explosives, drugs, hard-to-penetrate materials | ||
| Threat Image Projection (TIP) | Inserts fictional threat images for training & vigilance | ||
| Image Recall | Hundreds | ||
| Misc Functions | Time/date, counters, user management, timers, self-test, diagnostics, system log, standby, stimulant training | ||
| Scanning Direction | Dual-direction | ||
| Operating Environment | |||
| Storage Temperature | -20℃ to 40℃ | ||
| Operating Temperature | 5℃ to 40℃ / 10%–90% RH | ||
| Relative Humidity | 0%–90% RH (non-condensing) | ||
| Storage Humidity | 0%–90% RH (non-condensing) | ||
| Options | |||
| AI Feature | 41 classes in 15 major types | ||
| Cameras | Real-time video for item-person association & lost item retrieval | ||
| UPS | 1.5 KVA, 15–20 mins backup | ||
| OEM Branding | Metal frame & interface | ||
| Packaging Information | |||
| Packing List | English Manual ×1; Cable ×1; Tools ×1 set | ||
| Packaging Method | Wooden Pallet | ||
| Packaging Dimensions | 1700mm × 870mm × 1460mm | ||
| N.W. | 245KG | ||
| G.W. | 290KG | ||
| Regulatory Compliance | |||
| China Standard | GB 12664-2024 | ||
| International | CE, ROHS, FCC | ||
Product Description
Precision 140kV Imaging for High-Detail Detection
The heart of the BG-X6550 is its high-frequency 140kV X-ray generator. While standard scanners in this size class often struggle with thick metallic objects, the VARITO BG-X6550 achieves a staggering 38mm steel plate penetration.
1. Expose Hidden Compartments: See through heavy metallic suitcase frames and reinforced crates.
2. Dual-Energy 4-Color Imaging: This advanced software automatically categorizes materials based on their atomic weight. Organic materials (like explosives or narcotics) appear in orange, inorganic materials in green and metals in blue or black. This multi-color visualization allows operators to identify threats in seconds.
3. Heavy Duty Performance: Equipped with a reinforced conveyor system, can handle heavy loads with consistent, smooth movement.
4. Lightweight Design: Weighing only 245 kg, this unit is much easier to install and move compared to its larger counterparts, making it ideal for temporary event security.
Engineered for Small Spaces & High Mobility
1. 170kg Load Capacity: The heavy-duty conveyor belt is designed to handle up to 170 kg, easily accommodating heavy backpacks and commercial courier bags.
2. High-Resolution Imaging: Displayed on 19-inch high-definition monitors to allow operators to compare different image filters (Negative, B/W, Pseudo-color) side-by-side.
3. Eco-Friendly Operation: Features a power-saving mode that reduces energy consumption during idle periods, extending the life of the X-ray tube.
4. Heavy-Duty Conveyor: Built to support a staggering 500kg distributed load, ensuring the motor handles heavy cargo without lagging.
We Provide Multiple Solutions
Can integrate a variety of access control equipments
Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work
Product Details and Dimensions
All the details and dimensions can be customized according to your project site
More Information
Smart Access Control Solution for Modern Security
VARITO VARITO VARITO BG-X6550 X-Ray Baggage Scanner
In an era where security threats are becoming increasingly sophisticated, your screening technology must be one step ahead. The VARITO BG-X6550 X-Ray Baggage Scanner is a premier security solution designed for those who demand uncompromising clarity and high-speed efficiency. Featuring the industry-standard 650mm x 500mm tunnel size, this model is perfectly suited for airport checkpoints, government secretariats and high-traffic corporate lobbies.
As a signature product under the globally recognized VARITO brand, the BG-X6550 adheres to ensuring your facility is protected by world-class engineering.
Precision 140kV Imaging for High-Detail Detection
The BG-X6550 is powered by a specialized 80kV X-ray generator. While optimized for lower power consumption, it does not compromise on the clarity required to identify hidden threats.
1. 38mm Steel Penetration: Effortlessly sees through standard suitcase frames, laptops, and thick clothing to identify hidden metallic objects.
2. Dual-Energy 4-Color Imaging: This advanced software automatically categorizes materials based on their atomic weight. Organic materials (like explosives or narcotics) appear in orange, inorganic materials in green, and metals in blue or black. This multi-color visualization allows operators to identify threats in seconds.
3. Heavy Duty Performance: Equipped with a reinforced conveyor system, this VARITO X-Ray Baggage Scanner can handle heavy loads with consistent, smooth movement.
4. Reduced Energy Consumption: The 80kV source is more energy-efficient, making it ideal for 24/7 operation in facilities looking to maintain a lower carbon footprint without sacrificing safety.
Engineered for Small Spaces & High Mobility
The VARITO BG-X6550 is designed with the user’s environment in mind. It is lightweight enough for easy relocation but robust enough for 24/7 duty.
1. 170kg Load Capacity: The reinforced conveyor belt can handle heavy backpacks and courier bags weighing up to 100 kg, ensuring a steady flow at your entrance.
2. Adjustable Conveyor Speed: Operating at a standard 0.22 m/s, the belt speed can be fine-tuned to match your security team’s pace, preventing bottlenecks during peak hours.
3. Lightweight Design: Weighing only 245 kg, this unit is much easier to install and move compared to its larger counterparts, making it ideal for temporary event security.
Total Security Integration with VARITO Authority
A high-quality checkpoint is only as strong as its weakest link. To achieve a 360-degree security posture, the XR3G-5030A should be integrated into a wider ecosystem provided by the VARITO brand.
For a complete “Smart Entrance” setup, we recommend pairing this scanner with:
* Pedestrian Safety: Pair your scanner with a VARITO Metal Detector Gate to screen individuals while their bags are being processed.
* Access Management: Control staff and visitor flow using a VARITO Tripod Turnstile Gate or a high-tech VARITO Access Control System.
* Vehicle Perimeter: Secure your loading bays and entry points with a VARITO Boom Barrier Gate to manage transport vehicles delivering the goods being scanned.
By choosing a VARITO X-Ray Baggage Scanner, you are joining a global network of security-conscious organizations that rely on VARITO’s authoritative engineering.
Key Technical Specifications
* Tunnel Size: 650(W) × 500(H) mm
* Penetration: 12mm Steel Plate (Elite Standard)
* Generator: 140kV (Oil-cooled for continuous use)
* Weight: 245 kg (Highly Mobile)
* Safety: Double-layer lead-impregnated curtains for maximum operator protection.
Ideal Applications of Baggage Scanner
- Airports & Customs: For out-of-gauge (OOG) baggage and customs clearance.
- Logistics Hubs: Screening inbound and outbound freight for dangerous goods.
- Critical Infrastructure: Protecting power plants and military bases from large-scale threats.
- Event Logistics: Scanning equipment crates for concerts, exhibitions, and sporting events.
Conclusion: Invest in Authoritative Security
The VARITO BG-X6550 is more than just hardware; it is a commitment to the absolute safety of your premises. By combining high-energy 140kV penetration with a versatile 650x500mm tunnel and dual-energy intelligence, it provides a future-proof solution for any high-security site. When you choose the VARITO brand, you are choosing a global leader dedicated to technical excellence and professional protection.
Frequently Asked Questions (FAQs)
1. Is 38mm steel penetration enough for airport security? Yes. 38mm is a high-level standard for cabin baggage scanners, allowing operators to see through almost all consumer electronics and reinforced suitcase frames.
2. Can the conveyor speed be adjusted for peak hours? Absolutely. The 0.22 m/s speed is adjustable, allowing you to slow it down for high-detail manual inspections or speed it up during high-traffic periods.
3. Is it safe for photographic film and electronic devices? Yes. The radiation dosage is strictly controlled and complies with international safety standards, making it 100% safe for high-speed film (up to ISO 1600) and sensitive electronics.
4. How does the 4-color imaging assist the operator? The system highlights organic materials (like plastic explosives or liquids) in orange. This distinct visual cue helps operators immediately identify suspicious items that look “different” from inorganic clothing or metal objects.
5. Does the machine support image storage for review? Yes, it features a massive internal storage capacity (100,000+ images) and supports LAN/USB export for forensic review or staff training purposes.
