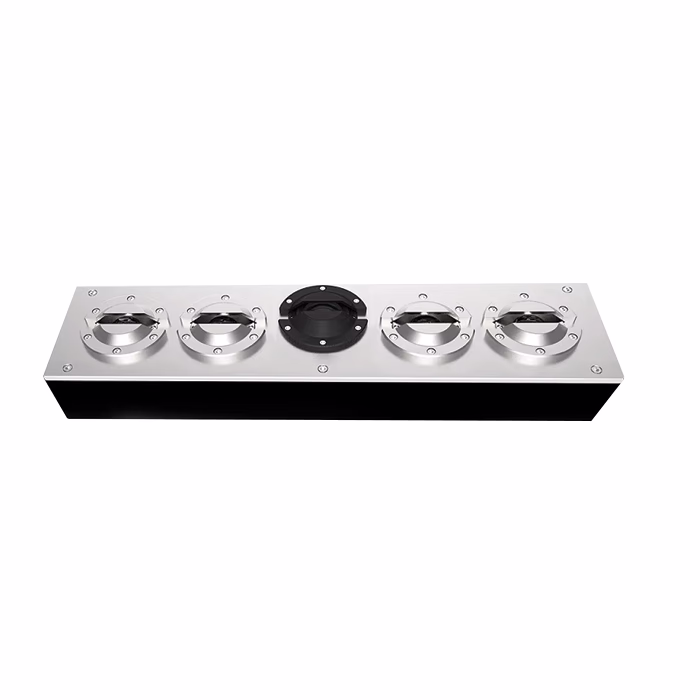

VARITO VT-UVSS-Pro fixed under vehicle surveillance system
The VT-UVSS-Pro fixed under vehicle surveillance system is a new generation of vehicle chassis safety inspection system independently developed by VARITO. It can check whether the vehicle bottom has been illegally modified, concealed drugs, bombs and other prohibited items or personnel and can also check go to places that are inconvenient for the human body to reach. This product has a high protection level design and can work normally in harsh environments. This product is suitable for inspecting car chassis in airport, docks, customs, prisons, military restricted area sand other security inspection areas.
Product Details:
| Brand: | VARITO |
| Model | VT-UVSS-Pro |
| Brand Origin | Germany |
| Maximum scan rate | 18KHz |
| Vertical resolution | 2048 Pixel CCD of vehicle bottom image |
| Image resolution | 12000×7500 Pixel |
Many Features
Specially designed
Specially designed for important places such as Public Security Bureau, Airport Customs, Large-scale events etc.
Strict internal quality control
Strict internal quality control, implementing the principle of double inspection of engineering and production
Safeguard measures
Safeguard measures for the complete machine components, adopting modular design.
Obtained IP68 Registrant.
Obtained IP68 Registrant.
Specification
| Item | Specification |
|---|---|
| System Supply | AC110-240V 50/60Hz |
| Bottom Image Display | Large format landscape image display method |
| Chassis Storage | < 1 second loading time |
| Image Retrieval | Stored car bottom and license plate images can be retrieved |
| Function | Search by date, time, license plate number & other information |
| Image Storage & Deletion | Save no less than 200,000 pictures and automatically delete expired pictures |
| Image Quality Function |
Adjust saturation, contrast & brightness automatically. Zoom and enlarge image for clearer inspection. |
| Vehicle Chassis Image Comparison |
Supports automatic pop-up of historical chassis image for comparison and security inspection. |
| Auxiliary Inspection |
Automatically discovers and identifies suspicious objects and assists inspection personnel. |
| Main Functions |
Image acquisition, stitching, storage, retrieval, vehicle speed detection, license plate recognition and vehicle security inspection. |
| General Specifications | |
| System host server and monitor |
1. Monitor: 24-inch true color LCD monitor 2. CPU: INTEL Core i5 processor 3. Motherboard: Dedicated motherboard 4. Memory: DDR3, ≥ 4GB 5. Hard drive: 500GB 6. Appearance: Stainless steel composite material |
| License plate recognition system |
1. Standard 1-channel license plate recognition system (expandable) 2. Single character recognition accuracy: >99% 3. Average recognition time: <20ms 4. Whole plate recognition accuracy: >95% 5. Allowed horizontal tilt angle: -10° to 10° 6. Character recognition accuracy: >93% 7. Video signal-to-noise ratio: >48db |
| Driver & passenger face recognition system | Driver and passenger face recognition function system (Optional) |
| Software & License | Software: Carcheck; Perpetual License |
| Related Hardware / Accessories |
Scanner control line Data cable from control box to operating console Data cable from license plate camera to console Control box power cable Console power cable License plate camera power cable Camera pole (galvanized steel pipe) Ground sense coil Toolkit component |
Product Description
Combining AI-driven imaging with industrial-strength hardware, provides a future-proof solution
Key Technical Specifications
The VARITO VT-UVSS-Pro is more than just a camera; it is a high-speed diagnostic tool for your facility’s safety.
1. Imaging Technology: High-speed Color Line-Scan Camera.
2. Resolution: 4K ultra-high resolution for microscopic detail.
3. Illumination: Intelligent LED arrays (Auto-sensing).
4. Load Capacity: Capable of supporting up to 50-ton vehicles (Armored-ready).
5. Software: Automated Comparison feature (Compares the current vehicle image with its previous visit).
Heavy-Duty Engineering for Industrial Logistics
Manual mirror inspections are slow, prone to human error, and dangerous for security personnel. The VARITO VT-UVSS-Pro automates this process using advanced line-scan technology.
1. High-Speed AI Imaging: The system captures high-resolution images of the vehicle’s undercarriage at speeds of up to 60 km/h, ensuring no disruption to traffic flow.
2. 4K Digital Resolution: It provides crystal-clear images, allowing security operators to zoom in on thin wires, magnetic attachments, or hidden compartments that a manual mirror would miss.
3. All-Weather Durability: Encased in heavy-duty, IP68-rated housing, the VT-UVSS-Pro is built to withstand extreme pressure, heavy rain, and the weight of armored vehicles.
We Provide Multiple Solutions
Can integrate a variety of access control equipments

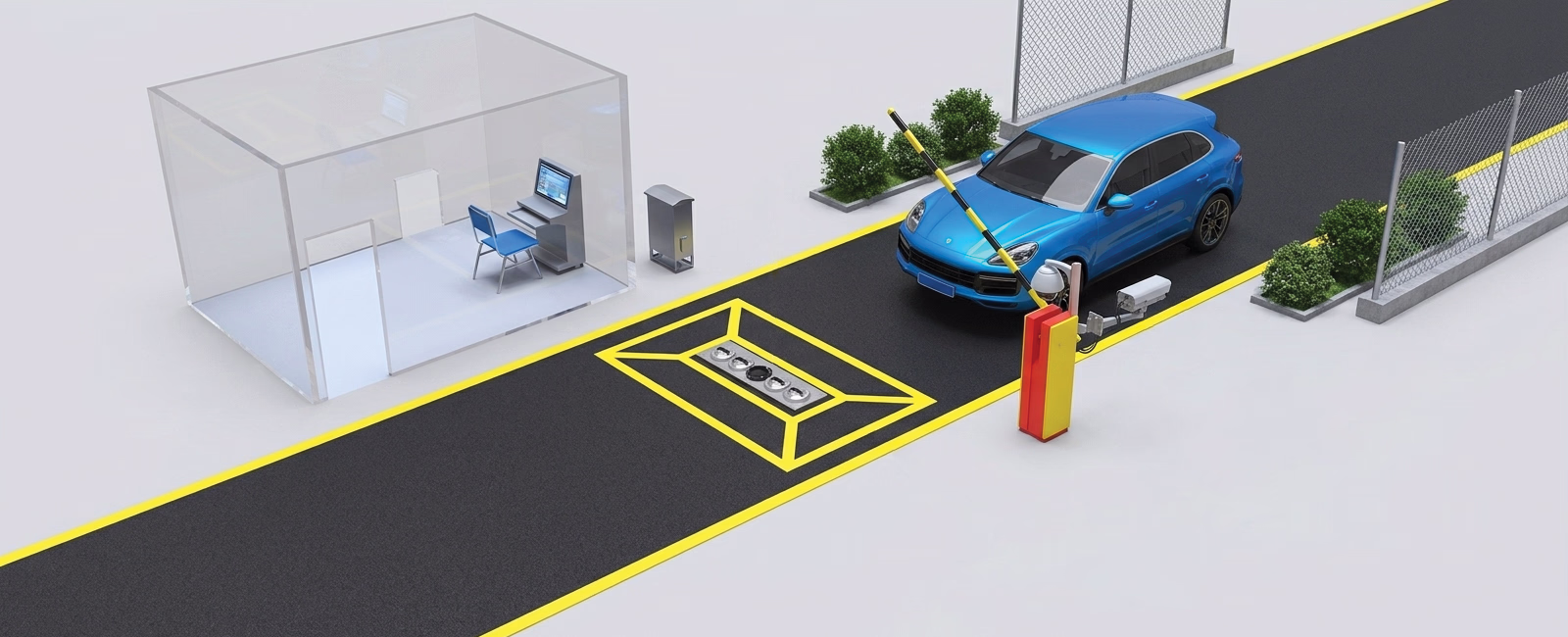

Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work
Product Details and Dimensions
All the details and dimensions can be customized according to your project site
More Information
Smart Access Control Solution for Modern Security
VARITO VT-UVSS-Pro Fixed Under Vehicle Surveillance System
In high-security environments, monitoring vehicle movement is critical to preventing unauthorized access and detecting hidden threats. The VARITO VT-UVSS-Pro Fixed Under Vehicle Surveillance System is an advanced solution designed to inspect the underside of vehicles with precision and speed. Powered by the globally trusted VARITO brand, this system delivers reliable performance for modern security operations.
Key Features & Benefits
1. High-Speed Under Vehicle Scanning for real-time inspection
2. Ultra-HD Imaging System for clear and detailed visuals
3. Automatic Vehicle Detection & Image Capture
4. ANPR Integration for Vehicle Identification
5. Weather-Resistant Design for outdoor installation
6. User-Friendly Software Interface for easy monitoring
These features make the VT-UVSS-Pro an ideal choice for locations where continuous and reliable vehicle inspection is required.
Why Fixed Under Vehicle Surveillance is Critical
Manual mirror inspections are slow, prone to human error, and dangerous for security personnel. The VARITO VT-UVSS-Pro automates this process using advanced line-scan technology.
1. High-Speed AI Imaging: The system captures high-resolution images of the vehicle’s undercarriage at speeds of up to 60 km/h, ensuring no disruption to traffic flow.
2. 4K Digital Resolution: It provides crystal-clear images, allowing security operators to zoom in on thin wires, magnetic attachments, or hidden compartments that a manual mirror would miss.
3. All-Weather Durability: Encased in heavy-duty, IP68-rated housing, the VT-UVSS-Pro is built to withstand extreme pressure, heavy rain, and the weight of armored vehicles.
Ideal Applications
- Government and military facilities.
- Airports and seaports.
- Industrial plants and warehouses.
- Border checkpoints and customs areas.
- Commercial complexes and secure parking zones.
Seamless Integration with the VARITO Security Ecosystem
A high-quality surveillance system is most effective when it is part of a synchronized defense strategy. The VARITO brand is a global authority in total security infrastructure, offering a 360-degree approach to facility safety.
To achieve maximum protection, we recommend pairing the VT-UVSS-Pro with:
1. Vehicle Flow Management: Synchronize your vehicle scanning with a VARITO Boom Barrier Gate to stop suspicious vehicles instantly.
2. Personnel Entry Control: Manage high-volume staff entry with a VARITO Tripod Turnstile Gate or a biometric-ready VARITO Access Control System.
3. Pedestrian Screening: Ensure people are as secure as their vehicles by installing a VARITO Metal Detector Gate at your main lobby entrance.
VARITO Brand Authority & Complete Security Integration
VARITO is recognized for delivering innovative and dependable security solutions across the globe. With a strong focus on quality and advanced technology, VARITO ensures that every product meets international security standards.
To build a complete security ecosystem, VARITO also offers:
1. VARITO Access Control System
2. VARITO Tripod Turnstile Gate
3. VARITO Boom Barrier Gate
4. VARITO Metal Detector Gate
These solutions can be seamlessly integrated with the VT-UVSS-Pro to create a multi-layered security infrastructure, ensuring full control over both vehicle and pedestrian access.
Conclusion: Invest in Authoritative Security
The VARITO VT-UVSS-Pro Fixed Under Vehicle Surveillance System is a reliable and efficient solution for detecting hidden threats beneath vehicles. With advanced imaging technology, seamless integration capabilities, and strong VARITO brand backing, it is an excellent investment for organizations seeking enhanced security and operational control.
Frequently Asked Questions (FAQs)
1. What is a UVSS system?
A UVSS (Under Vehicle Surveillance System) is a security solution that scans and captures images of a vehicle’s underside to detect hidden threats or unauthorized modifications.
2. How does the VARITO VT-UVSS-Pro work?
It uses high-resolution cameras and sensors to scan the undercarriage of vehicles as they pass over the system, providing real-time images for analysis.
3. Can the system operate in outdoor environments?
Yes, the VT-UVSS-Pro is designed with a weather-resistant structure, making it suitable for outdoor installations in various conditions.
4. Is it possible to integrate this system with other security solutions?
Absolutely. It can be integrated with access control systems, boom barriers, and other VARITO security products for a complete solution.
5. Where is this system commonly used?
It is widely used in airports, government facilities, industrial areas, border checkpoints, and other high-security locations.
