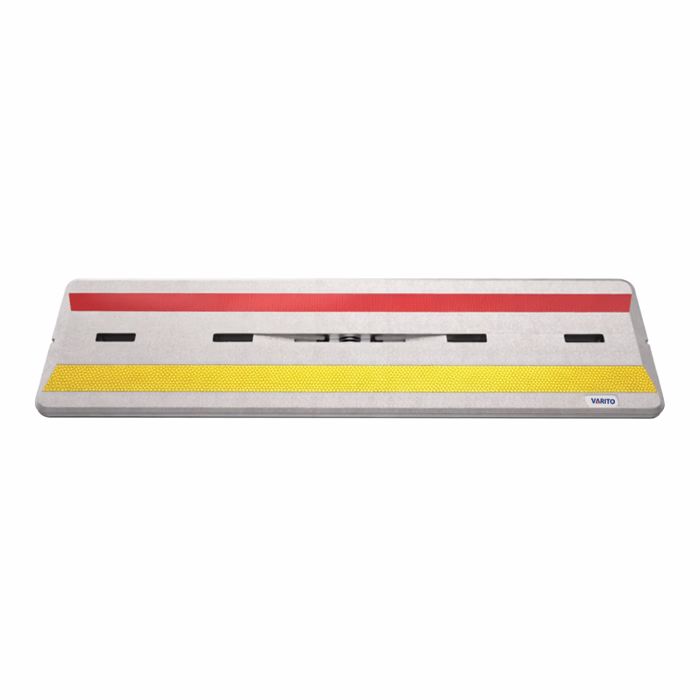

VARITO V4301-2PRO Fixed Under Vehicle Scanning System
V4301-2PRO is a robust and fixed subterranean vehicle scanning system designed exclusively by VARITO.Globally available, this cutting-edge model boasts a 5mm stainless steel panel construction, ensuring exceptional durability and reliability. Choose between 1024 or 4096 scanning pixels for unparalleled precision. With a sleek urban design, his system seamlessly combines aesthetics and functionality. Plus, its competitive
Product Details:
| Brand | VARITO |
| Model | V4301-2PRO |
| Brand Origin | Germany |
| Image upload time | < 1S |
| License plate recognition | Automatic |
| Space control | Automatic |
Many Features
License Plate Recognition System
1. 1 road license plate recognition module is standard, which can be expanded to 2 or more routes.
2. Intelligent recognition : license plate recognition, body color recognition, logo recognition.
3. Intelligent infrared : support
4. Noise reduction : 3D
5. Power supply : AC 100V ~ 240V
Under Vehicle Scanning System
1. UVSS type : Fixed Type
2. Material : 304 SS with matt finishing
3. Area scanning : Colorful
4. Canning Resolution : 1024, or 4096
5. Scanning speed : 0-30km/h
6. Scanner data line : 10 meters; (customizable length)

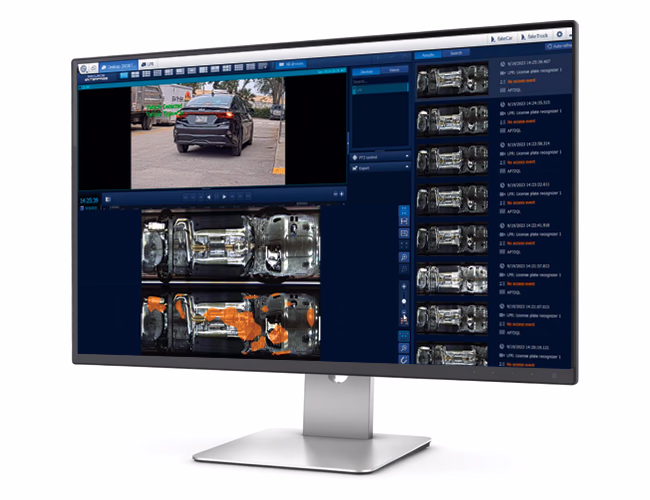

System Host Server & Display
Display : 19 inch/21 inch LED LCD display;
CPU : Core i3/ i5, installed win10 system;
Memory : 4GB/8GB memory.
Hard disk : 128GB high-speed solid state hard disk +1T mechanical
Appearance : machine case: cold rolled steel cabinet, high-grade
imported automobile baking paint, anti-magnetic, anti-rust, anti-static.
Intelligent central control components
1. Battery Management System, equipped with an internal battery, making the portable
under-vehicle scanner truly portable.
2. Real-time display of battery level, providing easy monitoring of usage duration.
3. In the event of a power outage and battery depletion, the system can automatically
power on when electricity is restored, ensuring timely power supply and recharging for
the next stable operation.
Specification
| Sl No | Specification | Details |
|---|---|---|
| 1 | Image upload time | < 1S |
| 2 | License plate recognition | Automatic |
| 3 | Space control | Automatic |
| 4 | User control | Manual |
| 5 | System language | Chinese, English, Russian (customizable) |
| 6 | Black/White list operation | Add / Edit / Delete |
| 7 | Black/White list quantity | 2000 |
| 8 | Image data storage | Standard with 2,000,000 records, automatic storage and deletion (customizable) |
| 9 | Range of sensitivity | 0-100 |
| 10 | FOD sensitivity range | 0-8 |

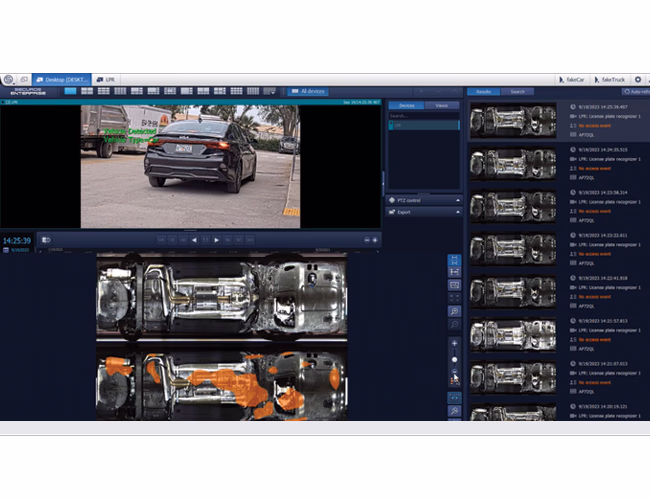

| 11 | Image display | Automatic adaptation, image retrieval inspection function |
| 12 | Image retrieval | Search by date, time, license plate number, etc. |
| 13 | Chassis image storage format | Color BMP or JPEG format |
| 14 | Data transmission interface | Standard RJ45 Network |
| 15 | Scene image display | More than 1 path |
| 16 | Image quality adjustment | Automatic color adjustment, zoom in/out supported |
| 17 | Automatic car bottom image shooting |
When vehicle passes at 0-30km/h, image displays within 1 second. If vehicle stops in scanning area, full chassis image is displayed. |
Product Description
Combining AI-driven imaging with industrial-strength hardware, provides a future-proof solution
Key Technical Specifications
The VARITO V4301-2PRO is more than just a camera; it is a high-speed diagnostic tool for your facility’s safety.
1. Imaging Technology: High-speed Color Line-Scan Camera.
2. Resolution: 4K ultra-high resolution for microscopic detail.
3. Illumination: Intelligent LED arrays (Auto-sensing).
4. Load Capacity: Capable of supporting up to 50-ton vehicles (Armored-ready).
5. Software: Automated Comparison feature (Compares the current vehicle image with its previous visit).
Heavy-Duty Engineering for Industrial Logistics

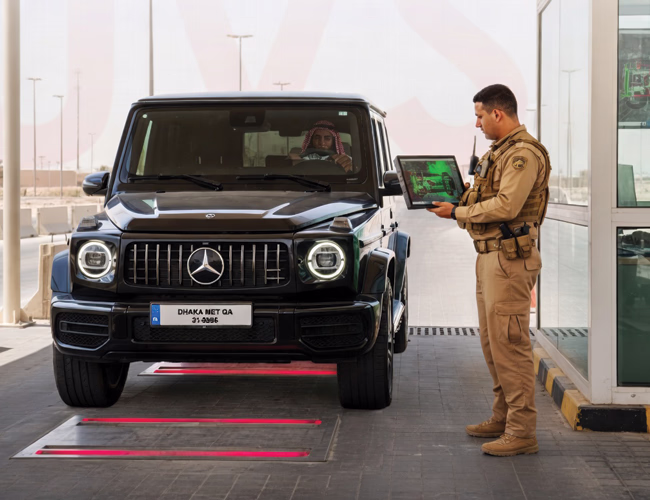

Manual mirror inspections are slow, prone to human error, and dangerous for security personnel. The VARITO V4301-2PRO automates this process using advanced line-scan technology.
1. High-Speed AI Imaging: The system captures high-resolution images of the vehicle’s undercarriage at speeds of up to 60 km/h, ensuring no disruption to traffic flow.
2. 4K Digital Resolution: It provides crystal-clear images, allowing security operators to zoom in on thin wires, magnetic attachments, or hidden compartments that a manual mirror would miss.
3. All-Weather Durability: Encased in heavy-duty, IP68-rated housing, the V4301-2PRO is built to withstand extreme pressure, heavy rain, and the weight of armored vehicles.
We Provide Multiple Solutions
Can integrate a variety of access control equipments

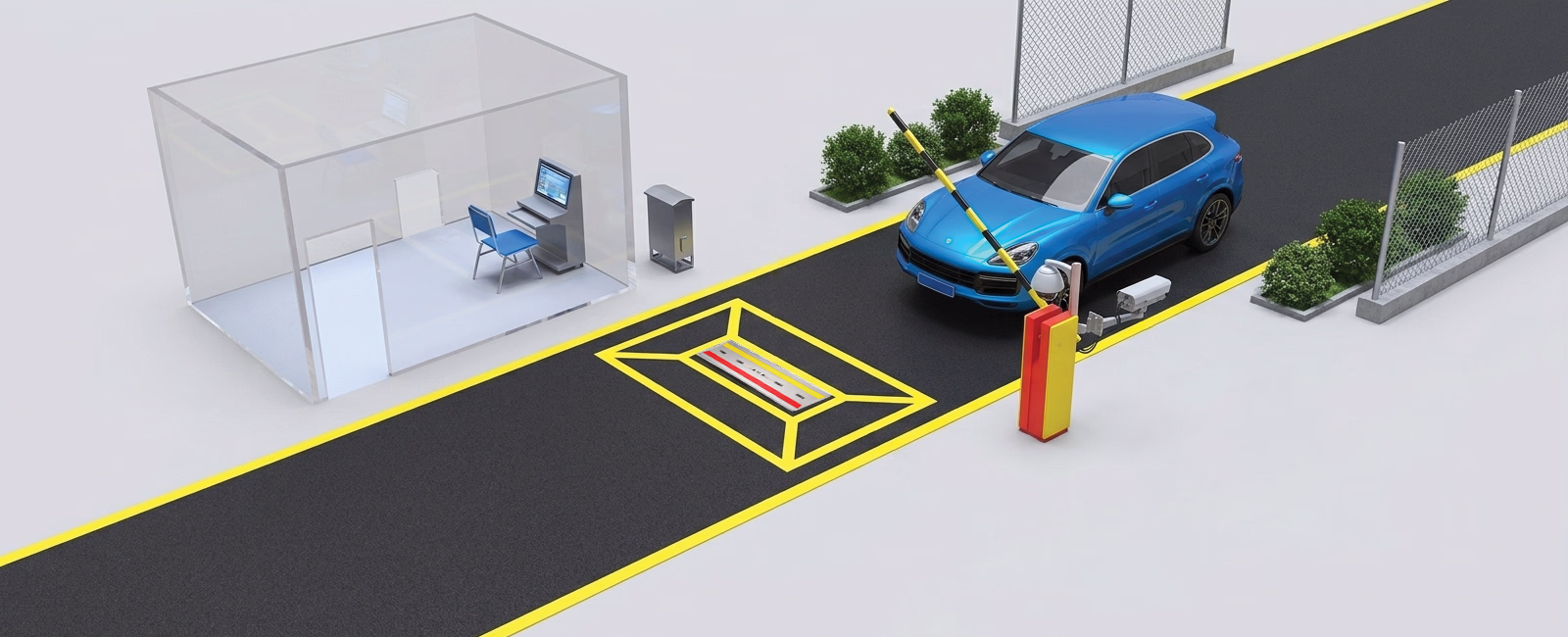

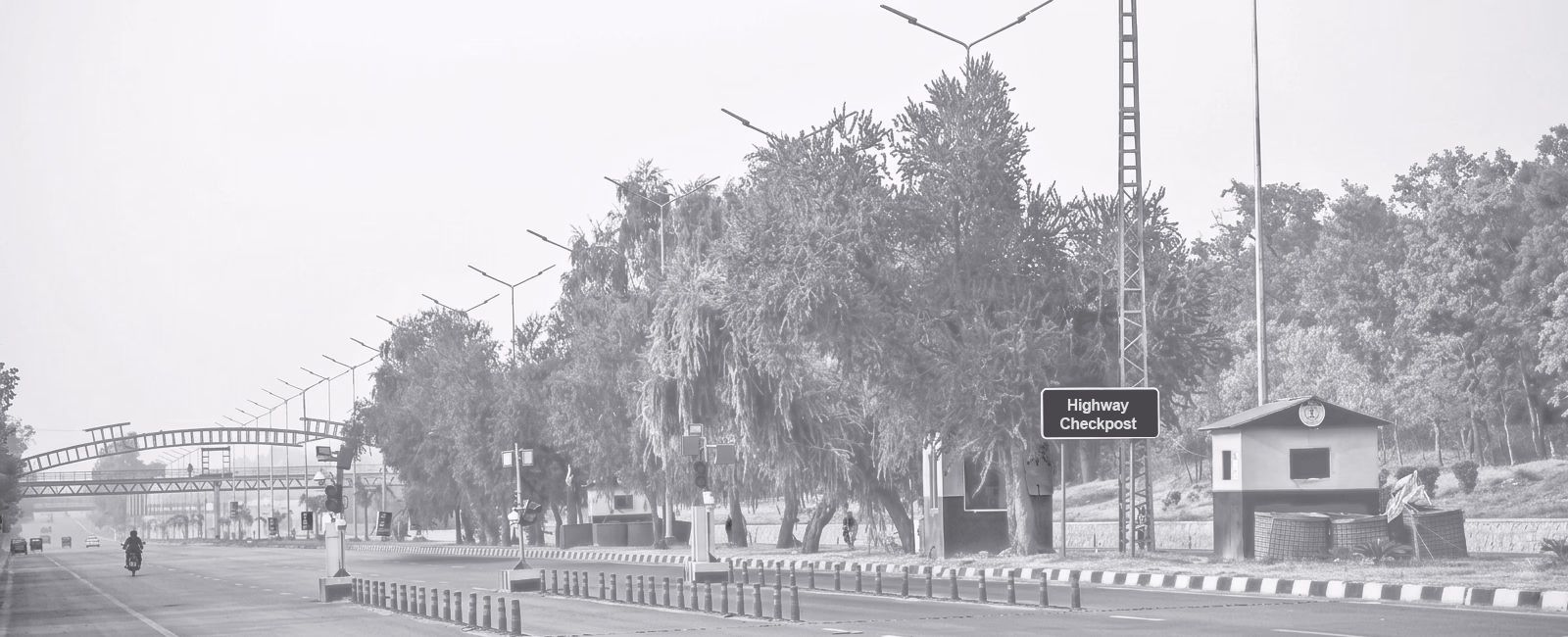

Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work
Product Details and Dimensions
All the details and dimensions can be customized according to your project site
More Information
Smart Access Control Solution for Modern Security
VARITO V4301-2PRO Fixed Under Vehicle Surveillance System
In high-security environments, monitoring vehicle movement is critical to preventing unauthorized access and detecting hidden threats. The VARITO V4301-2PRO Fixed Under Vehicle Surveillance System is an advanced solution designed to inspect the underside of vehicles with precision and speed. Powered by the globally trusted VARITO brand, this system delivers reliable performance for modern security operations.
Key Features & Benefits
1. High-Speed Under Vehicle Scanning for real-time inspection
2. Ultra-HD Imaging System for clear and detailed visuals
3. Automatic Vehicle Detection & Image Capture
4. ANPR Integration for Vehicle Identification
5. Weather-Resistant Design for outdoor installation
6. User-Friendly Software Interface for easy monitoring
These features make the V4301-2PRO an ideal choice for locations where continuous and reliable vehicle inspection is required.
Why Fixed Under Vehicle Surveillance is Critical
Manual mirror inspections are slow, prone to human error, and dangerous for security personnel. The VARITO V4301-2PRO automates this process using advanced line-scan technology.
1. High-Speed AI Imaging: The system captures high-resolution images of the vehicle’s undercarriage at speeds of up to 60 km/h, ensuring no disruption to traffic flow.
2. 4K Digital Resolution: It provides crystal-clear images, allowing security operators to zoom in on thin wires, magnetic attachments, or hidden compartments that a manual mirror would miss.
3. All-Weather Durability: Encased in heavy-duty, IP68-rated housing, the V4301-2PRO is built to withstand extreme pressure, heavy rain, and the weight of armored vehicles.
Ideal Applications
- Government and military facilities.
- Airports and seaports.
- Industrial plants and warehouses.
- Border checkpoints and customs areas.
- Commercial complexes and secure parking zones.
Seamless Integration with the VARITO Security Ecosystem
A high-quality surveillance system is most effective when it is part of a synchronized defense strategy. The VARITO brand is a global authority in total security infrastructure, offering a 360-degree approach to facility safety.
To achieve maximum protection, we recommend pairing the V4301-2PRO with:
1. Vehicle Flow Management: Synchronize your vehicle scanning with a VARITO Boom Barrier Gate to stop suspicious vehicles instantly.
2. Personnel Entry Control: Manage high-volume staff entry with a VARITO Tripod Turnstile Gate or a biometric-ready VARITO Access Control System.
3. Pedestrian Screening: Ensure people are as secure as their vehicles by installing a VARITO Metal Detector Gate at your main lobby entrance.
VARITO Brand Authority & Complete Security Integration
VARITO is recognized for delivering innovative and dependable security solutions across the globe. With a strong focus on quality and advanced technology, VARITO ensures that every product meets international security standards.
To build a complete security ecosystem, VARITO also offers:
1. VARITO Access Control System
2. VARITO Tripod Turnstile Gate
3. VARITO Boom Barrier Gate
4. VARITO Metal Detector Gate
These solutions can be seamlessly integrated with the V4301-2PRO to create a multi-layered security infrastructure, ensuring full control over both vehicle and pedestrian access.
Conclusion: Invest in Authoritative Security
The VARITO V4301-2PRO Fixed Under Vehicle Surveillance System is a reliable and efficient solution for detecting hidden threats beneath vehicles. With advanced imaging technology, seamless integration capabilities, and strong VARITO brand backing, it is an excellent investment for organizations seeking enhanced security and operational control.
Frequently Asked Questions (FAQs)
1. What is a UVSS system?
A UVSS (Under Vehicle Surveillance System) is a security solution that scans and captures images of a vehicle’s underside to detect hidden threats or unauthorized modifications.
2. How does the VARITO V4301-2PRO work?
It uses high-resolution cameras and sensors to scan the undercarriage of vehicles as they pass over the system, providing real-time images for analysis.
3. Can the system operate in outdoor environments?
Yes, the V4301-2PRO is designed with a weather-resistant structure, making it suitable for outdoor installations in various conditions.
4. Is it possible to integrate this system with other security solutions?
Absolutely. It can be integrated with access control systems, boom barriers, and other VARITO security products for a complete solution.
5. Where is this system commonly used?
It is widely used in airports, government facilities, industrial areas, border checkpoints, and other high-security locations.
