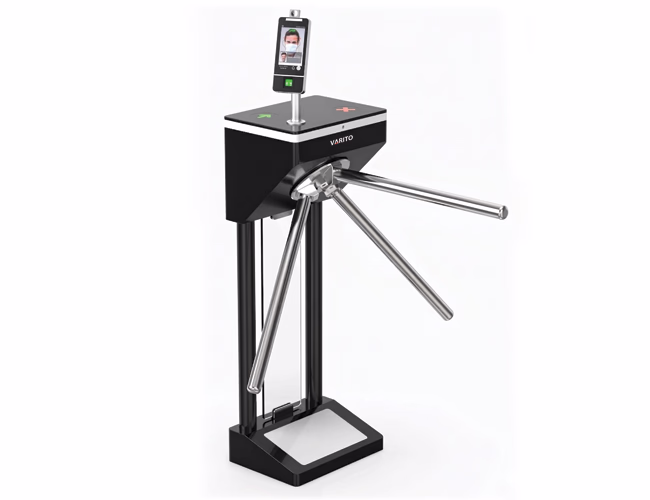

VARITO VT-Q50 Tripod Turnstile
Vasrito VT-Q50 is the most slimmest tripod turnstile, it is cost-effective, exquisite and beauty, only one person can pass at one time, highest security to prevent the illegal trailing.
Design with classic black, white color appearance, elegant and timeless pairing, perfect for using at high end applications.380*280*1000mm small size, fit for small installation space.
Product Details:
| Brand: | Varito |
| Model | VT-Q50 |
| Passage Width | 550mm (Arm length: 500mm) |
| Dimension | 380 *280 * 1000mm |
| Weight |
35kg/pcs |
| LED Indicator |
Unique blue LED strip (front+ top+side) |
Many Features Varito Tripod Turnstile VT-Q50
Long-life performance
Long-life performance, high operation dependability and fast response
The whole system runs smoothly
The whole system runs smoothly, low noise, no mechanical impact
Single directional
Single directional or Bi-directional is selectable
Automatic reset function
Automatic reset function: turnstile arm will lock automatically within 5s (can be setting) if passenger delay to entry
Anti-tailing function
Anti-tailing function: only one person passes at one time
LED indicator
LED indicator (red × means no entry; green → means entry)
Easy to install
Easy to install and maintain
Arm length
Arm length can range from 500mm up to 650mm
Specification
| Item | Details |
|---|---|
| Model No. | VT-Q50 |
| Brand | Varito |
| Framework Material | Steel + White and black stoving varnish |
| Swipe Card Panel Material | Tempered glass |
| Arm Material | 304 Stainless Steel |
| Dimension | 380 * 280 * 1000mm |
| Weight | 35kg/pcs |
| Passage Width | 550mm (Arm length: 500mm) |
| Passing Direction | Single directional / Bi-directional |
| MCBF | 10 million |
| Power Supply | AC220V/110V, 50/60Hz |
| Operation Voltage | 24V DC |
| Power Consumption | 20W |
| Operation Temperature | -20°C ~ 75°C |
| Operation Humidity | 0 ~ 95% (No freeze) |
| Working Environment | Indoor / Outdoor |
| Flow Rate | 35 people per minute |
| LED Indicator | Unique blue LED strip (front + top + side) |
| Emergency | Arms will drop down automatically |
| Communication | Dry contact, Relay signal, RS485 |
Product Description
Varito Tripod Turnstile V-Q10
Control Entry with Confidence
- Long-life performance, high operation dependability and fast response
- The whole system runs smoothly, low noise, no mechanical impact
- Single directional or bi-directional is selectable
- Automatic reset function: swing arms will lock automatically within 5s
- When power is off, arms will drop down automatically, complying with fire safety requirements
- LED indicator (red means no entry, green means entry)
- Only one person can pass at one time, to prevent the illegal following
- Easy to install and maintain
- 1-year warranty support
Strong Security and Smooth Access
VARITO V-Q50 is the most popular tripod turnstile and most obvious feature is that only one person can pass at one time, highest security to prevent the illegal trailing. Green and red LED indicator display passing status. It is ideal for both indoor or outdoor with waterproof design. Support integrated with any type of access control systems.
We Provide Multiple Solutions
Can integrate a variety of access control equipments
Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work

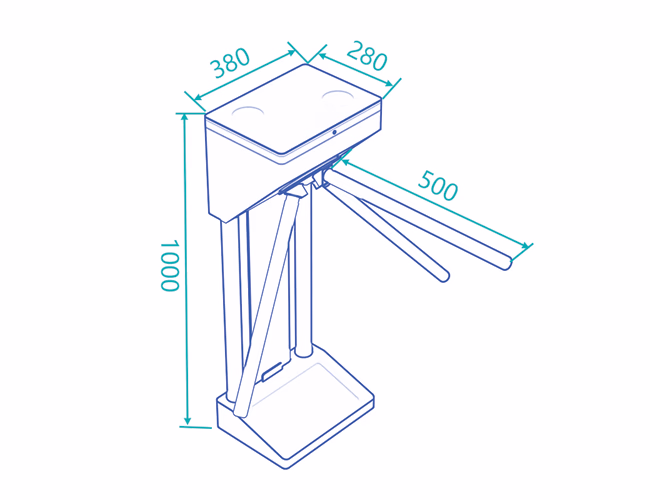

Product Details and Dimensions
All the details and dimensions can be customized according to your project site
More Information
Smart Access Control Solution for Modern Security
VARITO V-Q50 Tripod Turnstile Gate
The VARITO V-Q50 Tripod Turnstile Gate is an advanced pedestrian access control solution designed to ensure secure, organized, and efficient entry management in modern infrastructures. Developed by VARITO, an international security and automation technology brand, this turnstile gate combines innovative engineering, intelligent automation and durable construction to deliver reliable performance in high-traffic environments.
Organizations today require smarter and more efficient security systems to manage the flow of people while maintaining strict access control. The VARITO V-Q50 tripod turnstile provides a professional solution for offices, industrial zones, metro stations, stadiums, educational institutions, shopping malls, and government facilities where safety and operational efficiency are essential.
Smart Access Integration for Enhanced Security
One of the key advantages of the VARITO V-Q50 Tripod Turnstile Gate is its seamless compatibility with modern Access Control System technologies. The system supports integration with RFID cards, biometric authentication, QR code scanning, and facial recognition devices. This ensures that only authorized personnel can enter restricted areas, reducing security risks and improving workflow management.
Additionally, the turnstile can be connected with intelligent monitoring solutions such as Video Surveillance System, enabling real-time security tracking and event recording. Such integration helps organizations build a centralized and smart security infrastructure.
Durable Stainless Steel Design for Long-Term Performance
Built with high-quality stainless steel housing, the VARITO V-Q50 turnstile gate offers excellent resistance against corrosion, wear, and environmental impact. Its robust mechanical structure ensures smooth operation even in continuous high-usage conditions. This makes the system suitable for both indoor and outdoor installations where durability and reliability are crucial.
The energy-efficient control mechanism reduces operational costs while maintaining high performance. Low maintenance requirements and long service life make the VARITO tripod turnstile a cost-effective investment for businesses aiming to enhance their security standards.
Intelligent Crowd Management and Smooth Operation
The V-Q50 model is designed to regulate pedestrian movement efficiently. The anti-tailgating mechanism prevents unauthorized access attempts, while the smooth tripod arm rotation ensures safe and controlled entry flow. In large public facilities, this feature significantly reduces congestion and improves crowd discipline.
For comprehensive security deployment, the system can also work alongside solutions such as Metal Detector Gate, Car Barrier System, UVSS, and X-Ray Baggage Scanner. Together, these technologies create a complete security ecosystem for critical infrastructures.
Improved Efficiency and Cost-Effective Security
Investing in the VARITO V-Q50 Tripod Turnstile Gate not only strengthens security but also improves workflow efficiency. By automating entry control, organizations can reduce dependency on manual guards and minimize human errors. This leads to long-term cost savings and more streamlined facility management.
Furthermore, accurate access logs generated by the system support HR departments in tracking attendance and managing workforce productivity. These insights enable better planning and decision-making, especially in large organizations with multiple access points.
For more advanced solutions and related products, explore the Tripod Turnstile Gate Access Control Systems category.
Ideal Applications of VARITO V-Q50 Turnstile Gate
- Corporate offices and commercial buildings
- Industrial factories and warehouses
- Educational institutions and campuses
- Stadiums, event venues, and amusement parks
- Government facilities and secure premises
- Metro stations, bus terminals, and transport hubs
Why Choose VARITO Security Solutions?
VARITO is a global security and automation technology brand committed to delivering intelligent, reliable, and future-proof security systems. From Tripod Turnstile Gates to advanced surveillance, access control, and scanning technologies, VARITO solutions are designed to protect people, assets, and sensitive infrastructures worldwide.
By choosing the VARITO V-Q10 Tripod Turnstile Gate, organizations can enhance access control efficiency, improve security standards, and implement a smart entry management system tailored for modern operational needs.
