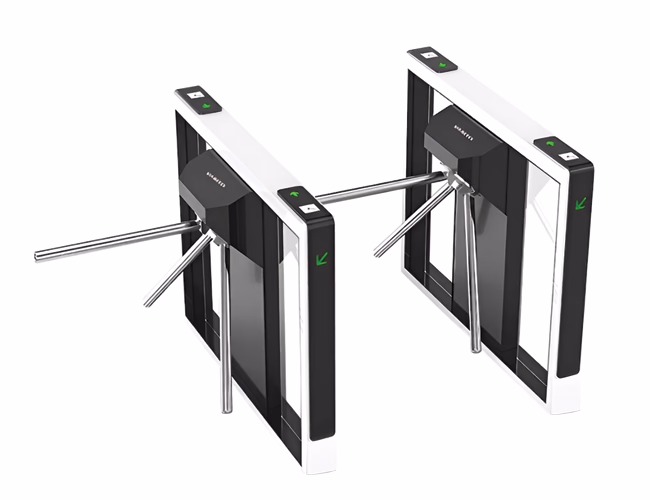

VARITO V-Q10 Tripod Turnstile
Varito VT-Q10 is the most popular tripod turnstile, the most obvious feature is that only one person can pass at one time, highest security to prevent the illegal trailing.
Design with classic black, white color appearance, elegant and timeless pairing, perfect for using at high end applications.
Product Details:
| Brand: | VARITO |
| Model | VT-Q10 |
| Passage Width | 550mm (Arm length: 500mm) |
| Dimension | 1400 *120 * 978mm |
| Weight |
75kg/pcs |
| Dimension: |
1400 * 1260* 2300mm |
Key Features
Long-life performance
Long-life performance, high operation dependability and fast response
The whole system runs smoothly
The whole system runs smoothly, low noise, no mechanical impact
Single directional
Single directional or Bi-directional is selectable
Automatic reset function
Automatic reset function: turnstile arm will lock automatically within 5s (can be setting) if passenger delay to entry
Anti-tailing function
Anti-tailing function: only one person passes at one time
LED indicator
LED indicator (red × means no entry; green → means entry)
Easy to install
Easy to install and maintain
Arm length
Arm length can range from 500mm up to 650mm
Specification
| Item | Details |
|---|---|
| Model No. | VT-Q10 |
| Brand | Varito |
| Framework Material | Steel + White and black stoving varnish |
| Swipe Card Panel Material | Tempered glass |
| Arm Material | 304 Stainless Steel |
| Dimension | 1400 * 120 * 978mm |
| Weight | 75kg/pcs |
| Passage Width | 550mm (Arm length: 500mm) |
| Passing Direction | Single directional / Bi-directional |
| MCBF | 10 million |
| Power Supply | AC220V/110V, 50/60Hz |
| Operation Voltage | 24V DC |
| Power Consumption | 20W |
| Operation Temperature | -20°C ~ 75°C |
| Operation Humidity | 0 ~ 95% (No freeze) |
| Working Environment | Indoor / Outdoor |
| Flow Rate | 35 people per minute |
| LED Indicator | Yes |
| Emergency | Arms will drop down automatically |
| Communication | Dry contact, Relay signal, RS485 |
Product Description
Built for busy environments where security and flow matter most
Control Entry with Confidence
- Long-life performance, high operation dependability and fast response
- The whole system runs smoothly, low noise, no mechanical impact
- Single directional or bi-directional is selectable
- Automatic reset function: swing arms will lock automatically within 5s
- When power is off, arms will drop down automatically, complying with fire safety requirements
- LED indicator (red means no entry, green means entry)
- Only one person can pass at one time, to prevent the illegal following
- Easy to install and maintain
- 1-year warranty support
Strong Security and Smooth Access
VARITO V-Q10 is the most popular tripod turnstile and most obvious feature is that only one person can pass at one time, highest security to prevent the illegal trailing. Green and red LED indicator display passing status. It is ideal for both indoor or outdoor with waterproof design. Support integrated with any type of access control systems.
We Provide Multiple Solutions

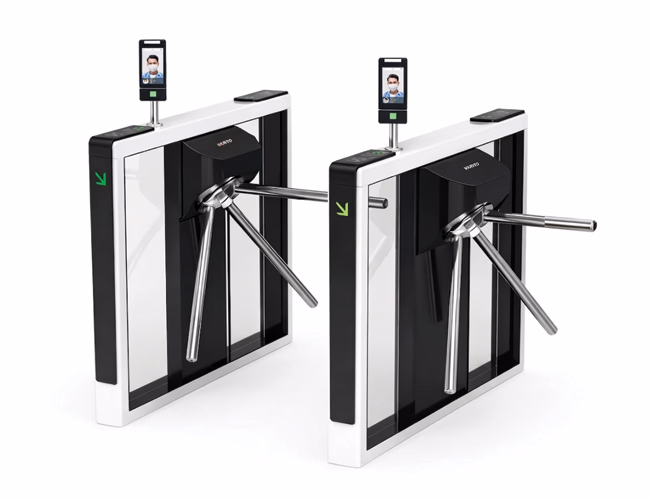

Can integrate a variety of access control equipments

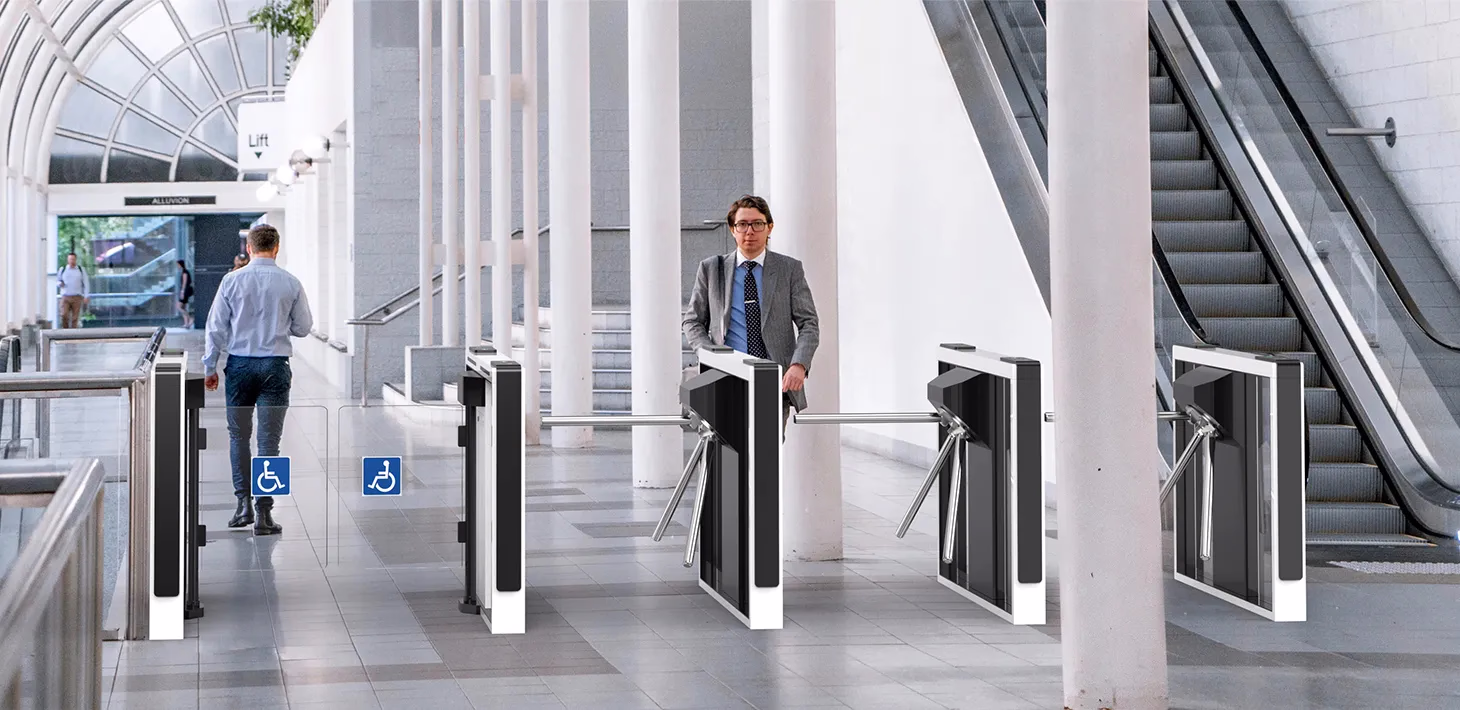

Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work

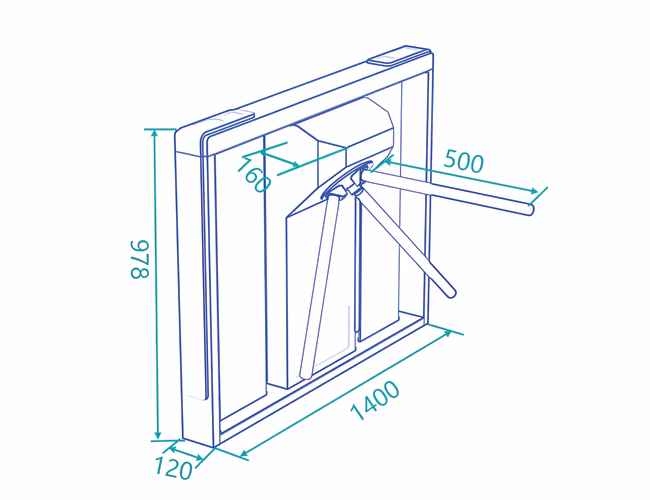

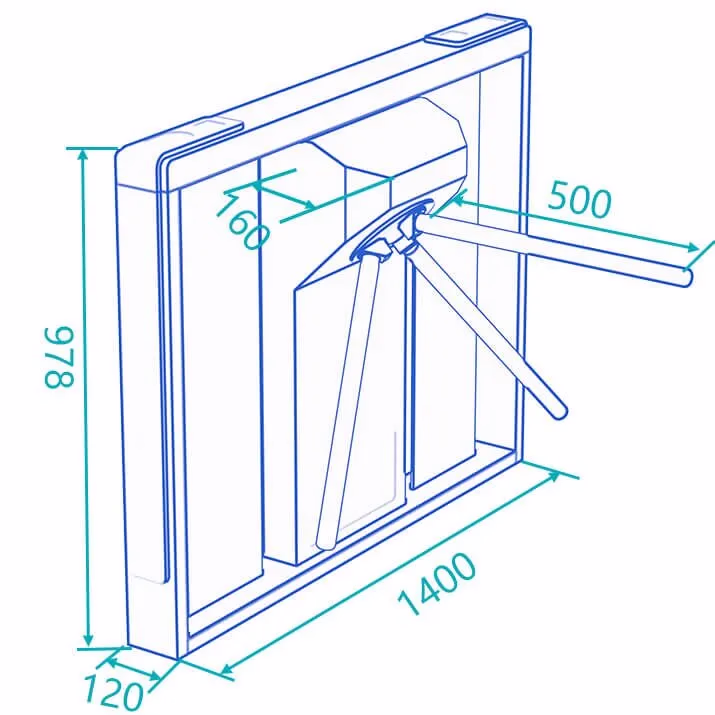

Product Details and Dimensions
All the details and dimensions can be customized according to your project site
More Information
Smart Access Control Solution for Modern Security
VARITO V-Q10 Tripod Turnstile Gate
The VARITO V-Q10 Tripod Turnstile Gate is a modern access control and crowd management solution designed for secure and efficient entry management in high-traffic environments. Built with advanced engineering and intelligent security technology, this tripod turnstile provides reliable performance for commercial buildings, corporate offices, industrial facilities, stadiums, educational institutions, metro stations, and government infrastructures.
As an internationally recognized brand, VARITO delivers innovative security and automation solutions that ensure safety, efficiency, and smart control. The V-Q10 model represents the perfect combination of durability, intelligent access integration, and sleek design making it an ideal choice for organizations seeking a professional and future-ready security system.
Advanced Security and Access Management
The VARITO V-Q10 Tripod Turnstile Gate supports seamless integration with modern Access Control System, RFID cards, biometric authentication, QR code scanners, and face recognition solutions. This ensures only authorized individuals can enter restricted areas, significantly enhancing workplace safety and operational efficiency.
Designed with anti-tailgating functionality and smooth mechanical operation, the tripod arms automatically control pedestrian movement, reducing congestion and maintaining disciplined entry flow. The system can also be connected with Video Surveillance System for enhanced monitoring and security management.
Durable Design for High-Traffic Environments
Built with robust materials and a sleek modern design, the VARITO V-Q10 is suitable for both indoor and semi-outdoor installations. Its stainless-steel construction ensures long-term durability and resistance to wear and tear, even in demanding environments. The tripod arm mechanism is designed for smooth rotation and controlled passage, preventing overcrowding and maintaining orderly movement.
This makes the VARITO V-Q10 Tripod Turnstile Gate an ideal solution for locations where large numbers of people need to be managed efficiently. From corporate offices and manufacturing plants to public transport terminals and educational institutions, the system performs reliably under continuous use.
Seamless Integration and Smart Functionality
One of the key advantages of the VARITO V-Q10 is its compatibility with various access control and attendance management systems. Organizations can easily integrate the turnstile with existing security infrastructure, allowing centralized monitoring and reporting. This integration helps improve operational efficiency while reducing manual supervision.
The system can also be configured to allow single-direction or bi-directional access, depending on facility requirements. Emergency release functionality ensures quick evacuation during critical situations, enhancing overall safety. Additionally, LED indicators and audible signals guide users through the access process, making it intuitive and user-friendly.
Improved Efficiency and Cost-Effective Security
Investing in the VARITO V-Q10 Tripod Turnstile Gate not only strengthens security but also improves workflow efficiency. By automating entry control, organizations can reduce dependency on manual guards and minimize human errors. This leads to long-term cost savings and more streamlined facility management.
Furthermore, accurate access logs generated by the system support HR departments in tracking attendance and managing workforce productivity. These insights enable better planning and decision-making, especially in large organizations with multiple access points.
For more advanced solutions and related products, explore the Tripod Turnstile Gate Access Control Systems category.
Ideal Applications of VARITO V-Q10 Turnstile
- Corporate offices and commercial buildings
- Industrial factories and warehouses
- Educational institutions and campuses
- Stadiums, event venues, and amusement parks
- Government facilities and secure premises
- Metro stations, bus terminals, and transport hubs
Why Choose VARITO Security Solutions?
VARITO is a global security and automation technology brand committed to delivering intelligent, reliable, and future-proof security systems. From Tripod Turnstile Gates to advanced surveillance, access control, and scanning technologies, VARITO solutions are designed to protect people, assets, and sensitive infrastructures worldwide.
By choosing the VARITO V-Q10 Tripod Turnstile Gate, organizations can enhance access control efficiency, improve security standards, and implement a smart entry management system tailored for modern operational needs.
