VARITO VT-DS112 Automatic Tripod Turnstile
VARITO VT-DS112 Automatic Tripod Turnstile are compact and cost-effective entrance/exit security solutions. The body is made of brushed stainless steel which is robust, rigid, anti-rust, waterproof and durable. It is exquisite and beauty, only one person can pass at one time, highest security to prevent the illegal trailing. In case of emergency, tripod turnstile horizontal arms will drop down automatically to allow free passage when power off.
Product Details:
| Brand: | Varito |
| Model | VT-DS112 |
| stainless steel | stainless steel which is robust, rigid, anti-rust, waterproof and durable. |
| Visual LED | Visual LED indication strip at front and back of the body make it more dazzling and attractive. |
| Single |
Arm is 120° rotors or 90°rotors for select. |
| Dimension: |
1400 * 1260* 2300mm |
VARITO VT-DS112 Automatic Tripod Turnstile
Long-life performance
Long-life performance, high operation dependability and fast response
The whole system runs smoothly
The whole system runs smoothly, low noise, no mechanical impact
Single directional
Single directional or Bi-directional is selectable
Automatic reset function
Automatic reset function: turnstile arm will lock automatically within 5s (can be setting) if passenger delay to entry
Anti-tailing function
Anti-tailing function: only one person passes at one time
LED indicator
LED indicator (red × means no entry; green → means entry)
Easy to install
Easy to install and maintain
Arm length
Arm length can range from 500mm up to 650mm
Specification
| Item | Details |
|---|---|
| Model No. | VT-DS112 |
| Type | Tripod Turnstile |
| Vendor | TURNSTILES.us |
| Framework Material | 304 Stainless Steel |
| Arm material | Stainless Steel |
| Dimension | 1200 × 230 × 980 mm |
| Net Weight | 50 kg / pcs |
| Passage Width | 550 mm (Arm length: 500 mm) |
| Passing Direction | Single directional / Bi-directional |
| MCBF | 5 million |
| Power Supply | AC220V / 110V, 50 / 60Hz |
| Operation Voltage | 24V DC |
| Power Consumption | 20W |
| Operation Temperature | −20 °C – 75 °C |
| Operation Humidity | 0 ~ 95% (No freeze) |
| Working Environment | Indoor / Outdoor |
| Flow Rate | 35–40 people per minute |
| LED Indicator | Yes |
| Emergency | Automatic arm open when power off |
| Communication | Dry contact, Relay signal, RS485 |
Product Description
TRIPOD TURNSTILE DATASHEET VT-DS112
Secure, efficient and reliable
- Long-life performance, high operation dependability and fast response
- The whole system runs smoothly, low noise, no mechanical impact
- Single directional or bi-directional is selectable
- Automatic reset function: swing arms will lock automatically within 5s
- When power is off, arms will drop down automatically, complying with fire safety requirements
- LED indicator (red means no entry, green means entry)
- Only one person can pass at one time, to prevent the illegal following
- Easy to install and maintain
- 1-year warranty support
Effortless entry, enhanced security
The VARITO VT-DS112 Automatic Tripod Turnstile offers a robust, modern solution for pedestrian access control. Engineered for high-traffic areas, this turnstile features an advanced automatic mechanism that ensures smooth, secure, and efficient entry management. With seamless integration into Access Control Systems, it’s ideal for offices, public transport terminals, industrial facilities, and other high-security zones. Designed for durability, it is built to withstand constant use, providing a reliable and secure entry system for both indoor and outdoor installations.
We Provide Multiple Solutions

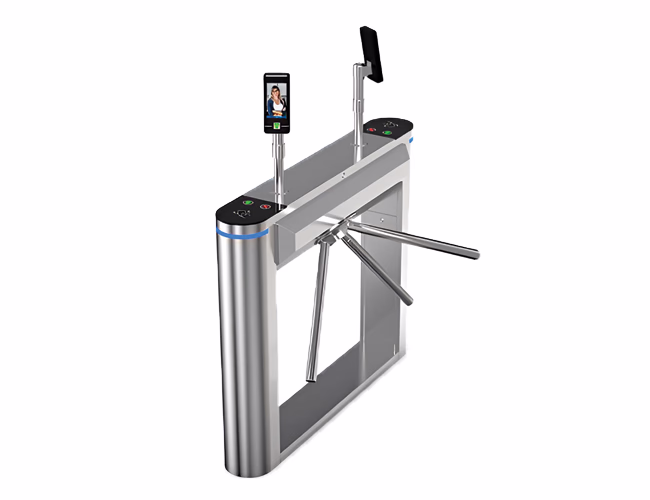

Can integrate a variety of access control equipments

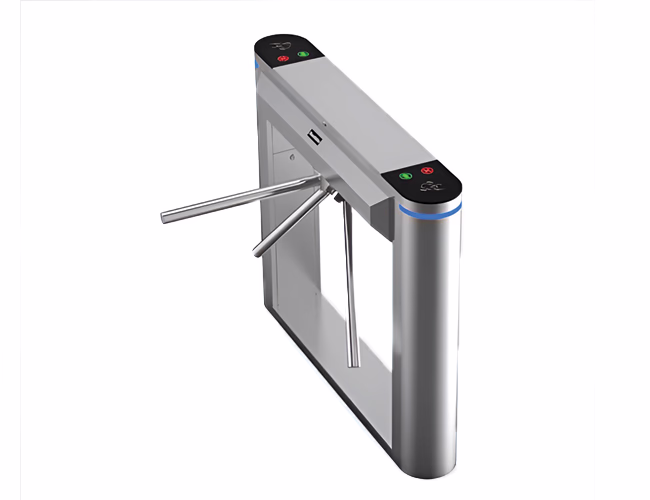

Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work

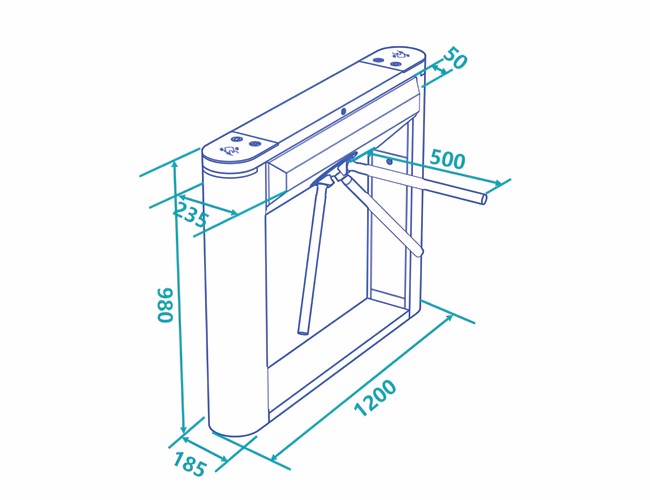

Product Details and Dimensions
All the details and dimensions can be customized according to your project site
More Information
Smart Access Control Solution for Modern Security
VARITO VT-DS112 Automatic Tripod Turnstile
The VARITO VT-DS112 Automatic Tripod Turnstile is a modern pedestrian access control solution engineered to deliver secure, efficient, and automated entry management in high-traffic environments. Developed by VARITO, an internationally trusted security and automation technology brand, this automatic tripod turnstile combines intelligent engineering, durable construction, and smart integration capabilities to meet the evolving security needs of modern infrastructures.
As businesses and public facilities continue to prioritize safety and operational efficiency, the demand for automated access control systems has increased significantly. The VT-DS112 automatic tripod turnstile is designed to regulate pedestrian movement, prevent unauthorized entry, and enhance overall crowd management performance in corporate buildings, metro stations, industrial facilities, and event venues.
Intelligent Automation and Access Control Integration
One of the key advantages of the VARITO VT-DS112 Automatic Tripod Turnstile is its seamless compatibility with advanced Access Control System technologies. The system supports integration with RFID card readers, biometric fingerprint devices, QR code scanners, and facial recognition modules, enabling organizations to implement secure and fully automated entry validation.
This intelligent automation reduces the need for manual supervision while improving entry speed and security accuracy. When integrated with centralized monitoring solutions such as Video Surveillance System, organizations can monitor entry logs in real time, generate security reports, and maintain full control over access points.
Durable Design and Long-Lasting Performance
Manufactured with high-quality stainless steel housing and precision mechanical components, the VT-DS112 tripod turnstile is built to withstand continuous operation in demanding environments. Its corrosion-resistant structure makes it suitable for both indoor and outdoor installations, ensuring reliable performance in public transport terminals, factories, universities, and government facilities.
The energy-efficient motorized mechanism ensures smooth tripod arm rotation with minimal operational noise. Low maintenance requirements and long service life make this VARITO automatic turnstile a cost-effective security investment for organizations seeking scalable access control infrastructure.
Smart Crowd Control and Safety Mechanisms
The VARITO VT-DS112 is equipped with advanced anti-tailgating technology and automatic reset functionality to maintain disciplined pedestrian flow. The emergency drop-arm feature allows quick evacuation during power failures or emergency situations, ensuring user safety and compliance with modern security regulations.
For comprehensive security deployment, the system can be integrated with additional VARITO solutions such as Metal Detector Gate, X-Ray Baggage Scanner, Car Barrier System, and UVSS. This integrated approach helps organizations build a complete security ecosystem capable of protecting critical infrastructures and high-security zones.
Improved Efficiency and Cost-Effective Security
Investing in the VARITO VT-DS112 Automatic Tripod Turnstile not only strengthens security but also improves workflow efficiency. By automating entry control, organizations can reduce dependency on manual guards and minimize human errors. This leads to long-term cost savings and more streamlined facility management.
Furthermore, accurate access logs generated by the system support HR departments in tracking attendance and managing workforce productivity. These insights enable better planning and decision-making, especially in large organizations with multiple access points.
For more advanced solutions and related products, explore the Tripod Turnstile Gate Access Control Systems category.
Ideal Applications of VARITO VT-DS112 Automatic Tripod Turnstile
- Corporate offices and commercial buildings
- Industrial factories and warehouses
- Educational institutions and campuses
- Stadiums, event venues, and amusement parks
- Government facilities and secure premises
- Metro stations, bus terminals, and transport hubs
Why Choose VARITO Security and Automation Solutions?
VARITO is globally recognized for delivering innovative security, surveillance, and smart automation technologies designed to safeguard people, assets, and operational environments. With a strong commitment to intelligent engineering, reliability, and future-ready performance, VARITO products enable organizations to implement efficient, scalable, and secure access management systems.
By installing the VARITO VT-DS112 Automatic Tripod Turnstile, businesses and institutions can improve pedestrian flow management, strengthen access control security, and build a modern entry management infrastructure aligned with global security standards.
