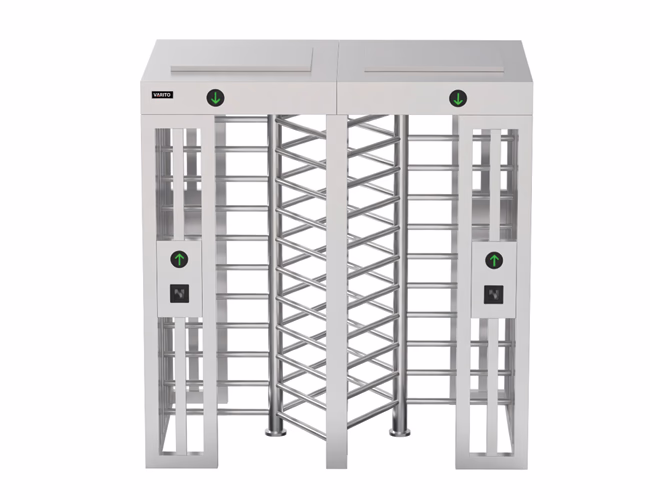

VARITO VT-402FS Full Height Turnstile
Full height turnstile VT-402FS is designed to provide entry access control solutions in outdoor places or places that need high security, such as prison, stadium and construction site.
Product Details:
| Brand: | VARITO |
| Model | VT-402FS |
| Dimension | 2200 * 1460* 2300mm |
| Passage Widt | 2 lanes, 670mm/lane |
| Arm Support |
120° rotors with 3 sections or 90° rotors with 4 sections. |
| Operation Temperature |
-15 °C – 60 °C |
Features
Elegant & Stylish
For the body, it’s slim and arc shape, which make it unique and can better protect people from crush injury. Front body is with bright, long and slim LED indication bar to make it more dazzling and attractive.
304 Stainless Steel
The body is made of brushed stainless steel which is robust, rigid, anti-rust, waterproof and durable.
IP65 Waterproof
Use waterproof mechanism design and the exterior is made of full stainless steel material, no afraid of severe environment.
Wider Passageway
It supports 550mm and 1200mm width passage, the wide passage perfect for wheelchair and pedestrian with large luggage pass through.
Access Control System
It has standard relay signal, which can be integrated with any kind of third-party access control system (e.g.: RFID, Fingerprint and Biometric reader device).
Anti-tailing Function
Only one person passes at one time. The Turnstile gate alarms if someone wants to burst in without permission.
Automatic Reset Function
The swing arms will lock automatically within 5s (can be setting) if passenger delay to entry.
Emergency Requirement
In case of emergency, the arms will open or drop down automatically to allow free passage when power off.
Specification
| Item | Details |
|---|---|
| Model No. | VT-402FS |
| Brand | Varito |
| Framework Material | 304 Full Stainless Steel |
| Dimension | 2200 * 1460 * 2300mm |
| Inner Height | 2080mm |
| Weight | 500kg/pcs |
| Passage Width | 2 lanes, 670mm/lane |
| Arm Support | 120° rotors with 3 sections or 90° rotors with 4 sections |
| Passing Direction | Single directional / Bi-directional |
| MCBF | 10 million |
| Power Supply | AC220V/110V, 50/60Hz |
| Operation Voltage | 24V DC |
| Power Consumption | 40W |
| Operation Temperature | -15°C ~ 60°C |
| Operation Humidity | 0 ~ 95% (No freeze) |
| Working Environment | Indoor / Outdoor with solid rain protection roof |
| Flow Rate | 30 people per minute |
| LED Indicator | Yes |
| Emergency | Automatic arm open when power off |
| Communication | Dry contact, Relay signal, RS485 |
Product Description
Built for busy environments where security and flow matter most
Multi-Layer Security for Critical Infrastructure
- Long-life performance, high operation dependability and fast response
- The whole system runs smoothly, low noise, no mechanical impact
- Single directional or bi-directional is selectable
- Automatic reset function: swing arms will lock automatically within 5s
- When power is off, arms will drop down automatically, complying with fire safety requirements
- LED indicator (red means no entry, green means entry)
- Only one person can pass at one time, to prevent the illegal following
- Easy to install and maintain
- 1-year warranty support
Reliable Performance and Durable Construction
The VARITO VT-402FS Full Height Turnstile is a robust and reliable security solution designed to provide controlled pedestrian access in high-security environments. Built with a strong steel structure and engineered for continuous operation, the VT-402FS prevents unauthorized entry by allowing only one person to pass through at a time.
We Provide Multiple Solutions
Can integrate a variety of access control equipments
Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work

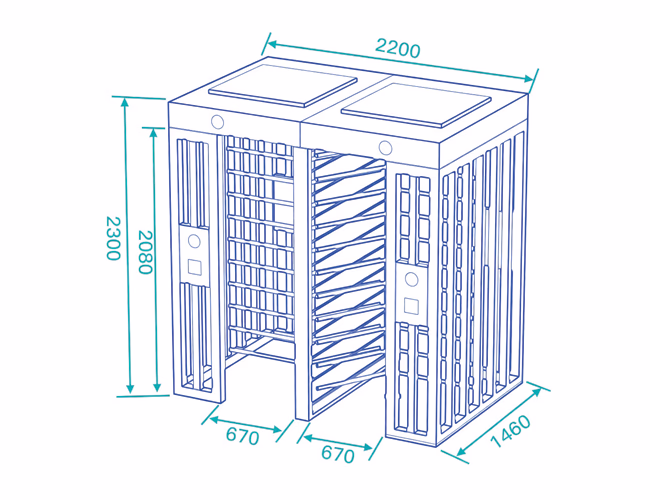

Product Details and Dimensions
All the details and dimensions can be customized according to your project site
More Information
Smart Access Control Solution for Modern Security
VARITO VT-402FS Full Height Turnstile
The VARITO VT-402FS Full Height Turnstile is a high-security access control solution designed to provide reliable and controlled entry management for sensitive and high-risk environments. Developed by VARITO, a globally recognized brand in security and automation technology, this full height turnstile is engineered to deliver robust security, smooth operation, and seamless integration with modern access control systems.
In today’s security-conscious world, organizations require dependable solutions that can protect restricted areas while maintaining efficient pedestrian flow. The VARITO VT-402FS Full Height Turnstile is specifically designed to prevent unauthorized access by allowing only one person to pass through at a time, making it ideal for locations that require strict perimeter security.
Advanced Full Height Security Design
The VARITO VT-402FS Full Height Turnstile features a durable stainless steel or heavy-duty steel structure designed to withstand demanding environments and continuous operation. Its full-height rotating barrier prevents climbing or bypassing, ensuring that only authorized individuals can access secured areas.
Unlike conventional gates or barriers, full height turnstiles provide a much higher level of physical security. This makes the VT-402FS an ideal choice for facilities where access must be tightly controlled and monitored.
With its sturdy design and reliable mechanics, the turnstile ensures long-term performance in both indoor and outdoor installations.
Seamless Integration with Access Control Systems
One of the key advantages of the VARITO VT-402FS is its ability to integrate with modern VARITO Access Control System solutions. Organizations can connect the turnstile with RFID cards, biometric authentication devices, QR code scanners, and centralized security management platforms.
This integration enables automated entry verification and real-time monitoring of access points.
For larger facilities, the system can also be used alongside the VARITO Tripod Turnstile Gate, creating a multi-level pedestrian access control system that improves security and operational efficiency.
Additionally, vehicle access can be controlled by integrating the system with the VARITO Boom Barrier Gate, ensuring secure entry for vehicles at parking areas and facility entrances.
Multi-Layer Security for Critical Infrastructure
The VARITO VT-402FS Full Height Turnstile works effectively as part of a broader security ecosystem. Many high-security facilities combine multiple security technologies to ensure comprehensive protection.
For example, organizations can install the VARITO X-Ray Baggage Scanner to inspect baggage and parcels at security checkpoints.
In addition, deploying the VARITO Metal Detector Gate helps detect metallic threats and prevents dangerous objects from entering restricted areas.
By combining these technologies, organizations can establish a highly secure environment capable of protecting people, assets, and sensitive infrastructures.
Reliable Operation and Durable Construction
The VARITO VT-402FS is designed for continuous operation in high-traffic environments. Its heavy-duty construction ensures long-term durability and minimal maintenance requirements.
The system supports smooth rotation, reliable locking mechanisms, and seamless integration with security infrastructure. This makes it a dependable solution for organizations that require strong perimeter protection and efficient pedestrian control.
Ideal Applications of Full Height Turnstile
- Industrial Facilities and Manufacturing Plants
- Corporate Campuses and Business Parks
- Government Buildings and High-Security Areas
- Sports Stadiums and Event Venues
- Universities and Educational Institutions
- Transportation Hubs and Secure Perimeters
Why Choose VARITO Security Solutions?
VARITO is an international security and automation technology brand delivering advanced surveillance, access control, and intelligent security solutions for modern infrastructures worldwide. From biometric authentication systems to perimeter security equipment, VARITO technologies are designed to protect people, assets, and critical environments.
By implementing the VARITO VT-402FS Full Height Turnstile, organizations can strengthen perimeter protection, improve access management efficiency, and build a secure, future-ready security infrastructure powered by advanced security technology.
