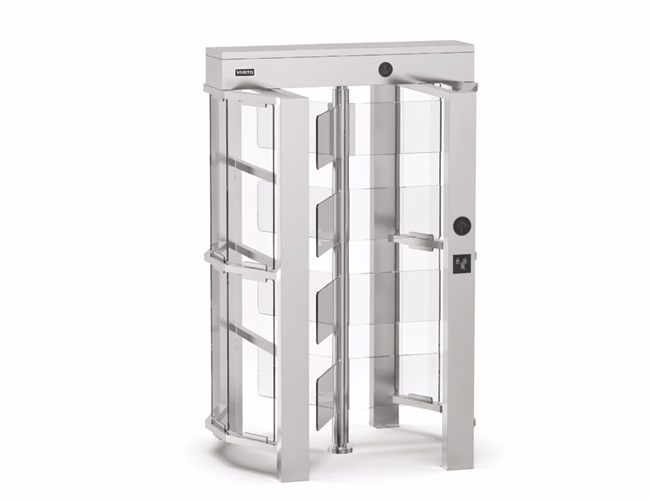

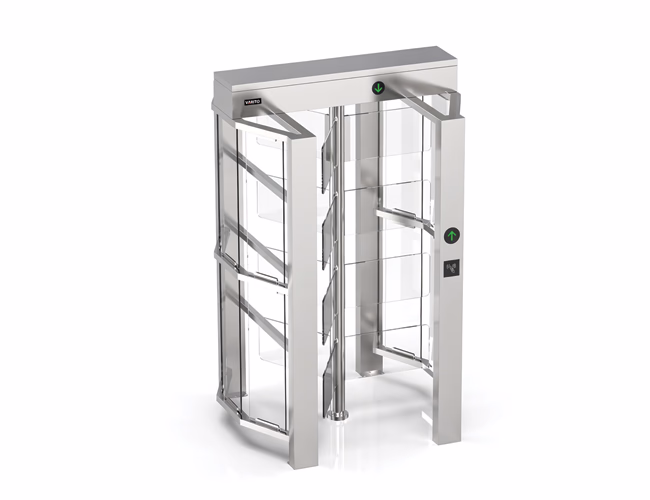

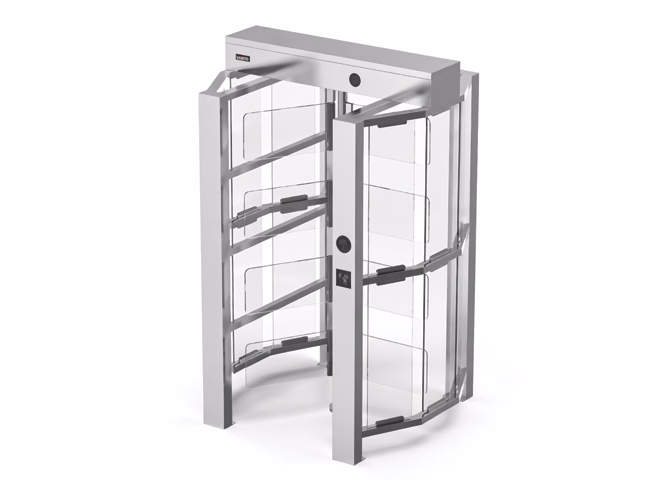

VARITO VT-401G Glass Full Height Turnstile
FThe VARITO VT-401G Glass Full Height Turnstile is a modern and high-security access control solution designed to provide controlled pedestrian entry while maintaining a sleek architectural appearance.
Product Details:
| Board: | VARITO |
| Model | VT-401G |
| Space | Availability to firmly embed the access control device |
| Visual LED | LED lights at front on both top cover and body side |
| Single |
Arm is 120° rotors or 90°rotors |
| Dimension: |
1460 * 1250* 2300mm |
Many Features are Available in The Full Height Turnstile VT-DS401FS
Elegant & Stylish
For the body, it’s slim and arc shape, which make it unique and can better protect people from crush injury. Front body is with bright, long and slim LED indication bar to make it more dazzling and attractive.
304 Stainless Steel
The body is made of brushed stainless steel which is robust, rigid, anti-rust, waterproof and durable.
IP65 Waterproof
Use waterproof mechanism design and the exterior is made of full stainless steel material, no afraid of severe environment.
Wider Passageway
It supports 550mm and 1200mm width passage, the wide passage perfect for wheelchair and pedestrian with large luggage pass through.
Access Control System
It has standard relay signal, which can be integrated with any kind of third-party access control system (e.g.: RFID, Fingerprint and Biometric reader device).
Anti-tailing Function
Only one person passes at one time. The Turnstile gate alarms if someone wants to burst in without permission.
Automatic Reset Function
The swing arms will lock automatically within 5s (can be setting) if passenger delay to entry.
Emergency Requirement
In case of emergency, the arms will open or drop down automatically to allow free passage when power off.
Specification
| Item | Details |
|---|---|
| Model No. | VT-DS401FS |
| Brand | Varito |
| Framework Material | 304 Full Stainless Steel |
| Dimension | 1460 * 1250 * 2300mm |
| Weight | 200kg/pcs |
| Passage Width | 666mm |
| Arm Support | 120° rotors with 3 sections or 90° rotors with 4 sections |
| Passing Direction | Single directional / Bi-directional |
| MCBF | 10 million |
| Power Supply | AC220V/110V, 50/60Hz |
| Operation Voltage | 24V DC |
| Power Consumption | 40W |
| Operation Temperature | -15 °C ~ 60 °C |
| Operation Humidity | 0 ~ 95% (No freeze) |
| Working Environment | Indoor / Outdoor |
| Flow Rate | 30 people per minute |
| LED Indicator | Yes |
| Emergency | Automatic arm open when power off |
| Communication | Dry contact, Relay signal, RS485 |
Product Description
Varito Full Height Turnstile VT-DS401FS
Elegant Glass Design with Robust Security
The VARITO VT-401G Glass Full Height Turnstile combines durable steel construction with high-strength tempered glass panels to create a secure yet visually appealing access control system. The transparent glass panels provide clear visibility while maintaining the structural integrity required for secure perimeter protection.


Reliable Operation and Long-Term Performance
The VARITO VT-401G is designed for continuous operation in demanding environments. Its precision mechanical system ensures smooth rotation, reliable locking mechanisms, and stable performance even during peak traffic hours.
The turnstile supports easy installation, flexible system integration, and low maintenance requirements, making it a cost-effective security solution for organizations seeking reliable perimeter protection.
We Provide Multiple Solutions
Can integrate a variety of access control equipments

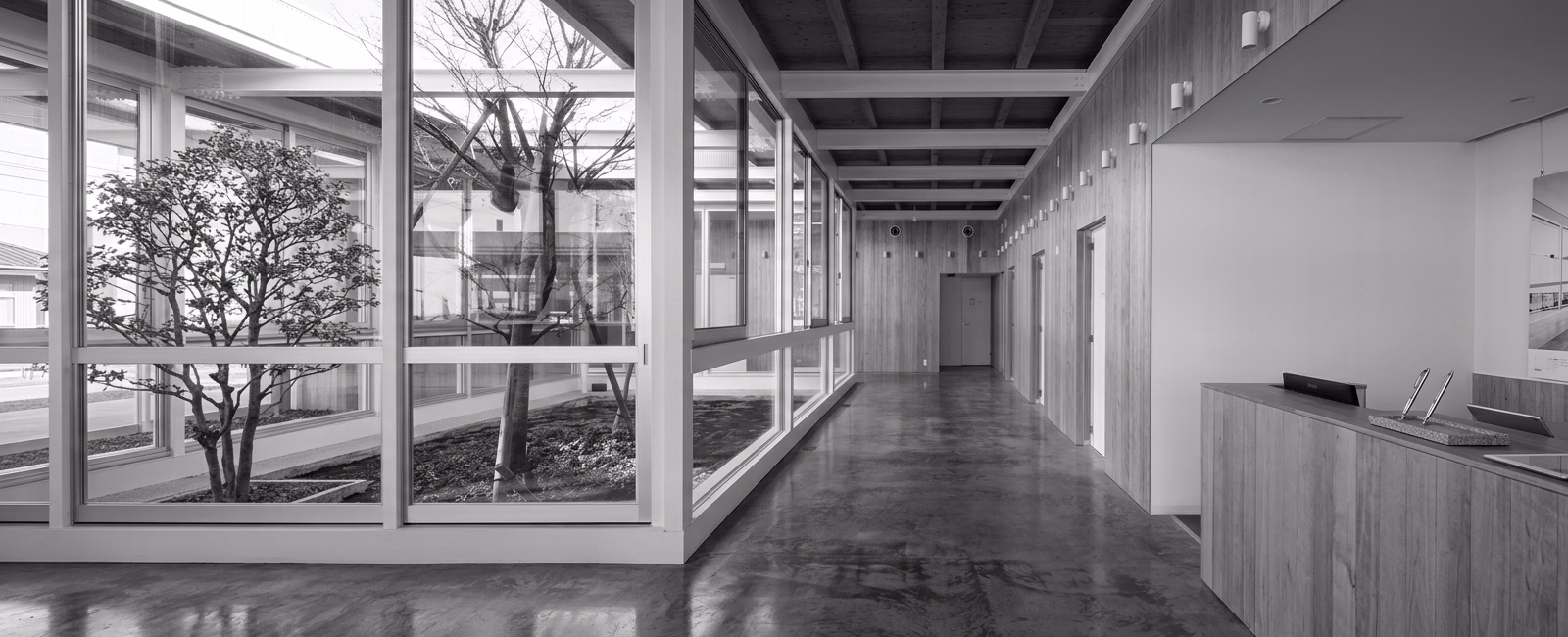

Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work

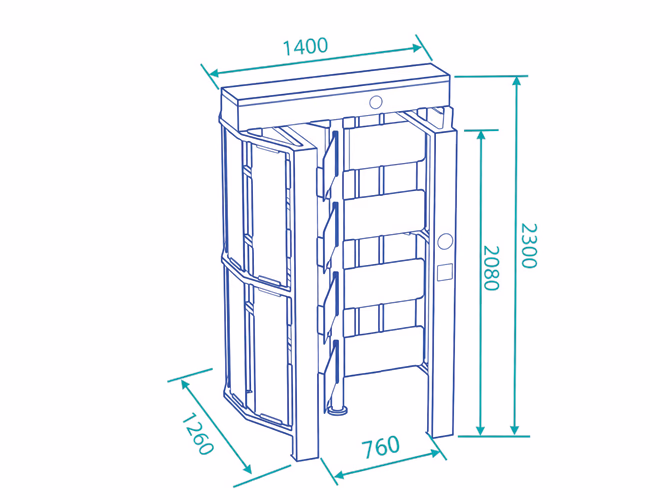

Product Details and Dimensions
All the details and dimensions can be customized according to your project site

More Information
Smart Access Control Solution for Modern Security
VARITO VT-401G Glass Full Height Turnstile
The VARITO VT-401G Glass Full Height Turnstile is a modern and high-security access control solution designed to provide controlled pedestrian entry while maintaining a sleek architectural appearance. Developed by VARITO, a globally trusted brand in security and automation technology, this advanced full height turnstile combines strong perimeter protection with elegant glass panel design, making it ideal for facilities that require both security and aesthetics.
In many high-security environments, controlling pedestrian access is essential for protecting people, assets, and sensitive infrastructure. The VARITO VT-401G Glass Full Height Turnstile is engineered to allow only one authorized person to pass through at a time, preventing tailgating and unauthorized entry. Its full height barrier structure eliminates the possibility of climbing over or bypassing the gate, ensuring maximum security at entry points.
This makes the VT-401G an excellent solution for corporate campuses, industrial facilities, government buildings, stadiums, and transportation hubs where secure and organized pedestrian management is required.
Robust Full Height Security Design
The VARITO VT-401WS Full Height Turnstile features a heavy-duty steel construction designed for durability and long-term operation. Its full height barrier prevents individuals from climbing over or bypassing the system, making it one of the most secure pedestrian access control solutions available.
Unlike traditional access gates, full height turnstiles provide superior perimeter protection by forcing controlled single-person entry. The VT-401WS is built to perform reliably even in high-traffic environments, ensuring smooth rotation and stable operation throughout the day.
With corrosion-resistant materials and precision engineering, the system delivers long service life with minimal maintenance requirements.
Elegant Glass Design with Robust Security
The VARITO VT-401G Glass Full Height Turnstile combines durable steel construction with high-strength tempered glass panels to create a secure yet visually appealing access control system. The transparent glass panels provide clear visibility while maintaining the structural integrity required for secure perimeter protection.
Unlike traditional metal turnstiles, the glass full height design offers a modern and sophisticated look that blends seamlessly with contemporary building architecture. At the same time, the strong mechanical structure ensures reliable performance in high-traffic environments.
With corrosion-resistant materials and precision engineering, the VT-401G provides long-term durability with minimal maintenance requirements.
Multi-Layer Security for Critical Infrastructure
The VARITO VT-401G Glass Full Height Turnstile works effectively as part of a broader security ecosystem. Many high-security facilities combine multiple security technologies to ensure comprehensive protection.
For example, organizations can install the VARITO X-Ray Baggage Scanner to inspect baggage and parcels at security checkpoints.
In addition, deploying the VARITO Metal Detector Gate helps detect metallic threats and prevents dangerous objects from entering restricted areas.
By combining these technologies, organizations can establish a highly secure environment capable of protecting people, assets, and sensitive infrastructures.
Reliable Operation and Durable Construction
The VARITO VT-401G Glass Full Height Turnstile is designed for continuous operation in demanding environments. Its heavy-duty mechanical system ensures smooth rotation, reliable locking mechanisms, and stable performance even during peak traffic hours.
The turnstile supports easy installation, flexible system integration, and low maintenance requirements, making it a cost-effective solution for organizations that require high-level perimeter security.
Ideal Applications of Full Height Turnstile
- Industrial Facilities and Manufacturing Plants
- Corporate Campuses and Business Parks
- Government Buildings and High-Security Areas
- Sports Stadiums and Event Venues
- Universities and Educational Institutions
- Transportation Hubs and Secure Perimeters
Why Choose VARITO Security Solutions?
VARITO is an international security and automation technology brand delivering advanced surveillance, access control, and intelligent security solutions for modern infrastructures worldwide. With a strong focus on innovation, reliability, and smart technology integration, VARITO products help organizations protect people, assets, and critical environments.
By implementing the VARITO VT-401G Glass Full Height Turnstile, organizations can strengthen perimeter security, improve pedestrian access management, and create a modern, future-ready security infrastructure.
