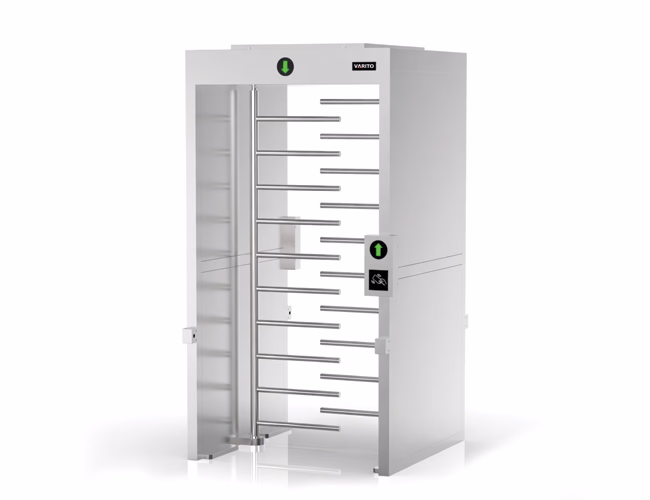

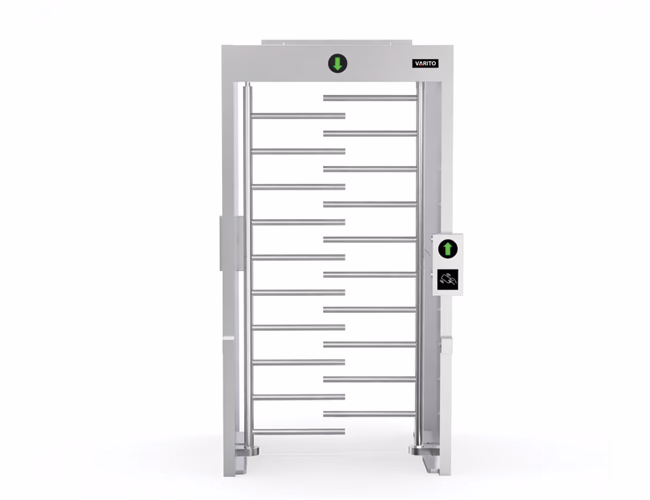

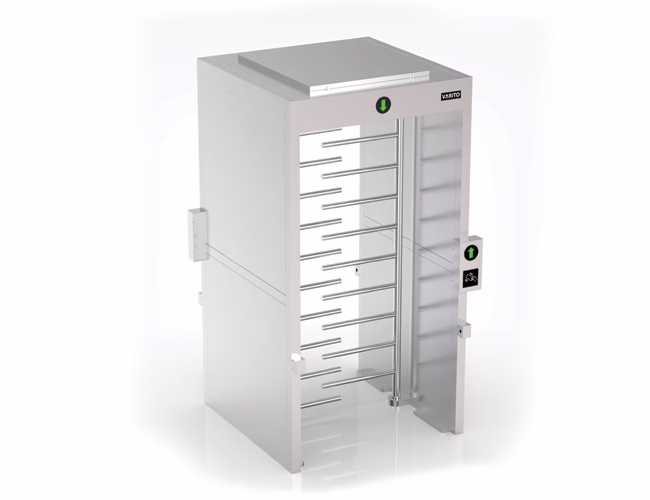

VARITO VT-401WS Full Height Turnstile
The VARITO VT-401WS Full Height Turnstile is a powerful perimeter security solution designed to provide controlled pedestrian access for high-security environments.
Product Details:
| Brand | VARITO |
| Model | VT-401WS |
| Dimentions | 1200 * 1200* 2300mm |
| Flow Rate | 35 people per minute |
| LED Indicator |
Yes |
| Passing Direction |
Single directional / Bi-directional |
Many Features are Available in The Full Height Turnstile VT-DS401G
Elegant & Stylish
For the body, it’s slim and arc shape, which make it unique and can better protect people from crush injury. Front body is with bright, long and slim LED indication bar to make it more dazzling and attractive.
The mechanism
The mechanism is equipped with an automatic regulated hydraulic buffer device. No noise and impact when running
Single directional
Single directional or Bi-directional is selectable
Automatic reset function
Automatic reset function: turnstile arm will lock automatically within 5s (can be setting) if passenger delay to entry
Anti-tailing function
Anti-tailing function: only one person passes at one time
Safety requirements
When power is off, arms will open automatically, which is complying with fire safety requirements
LED indicator
LED indicator (red × means no entry; green → means entry)
Structure
Structure of trunking to contain cable tidy inside the case
Specification
| Item | Details |
|---|---|
| Model No. | VT-DS401G |
| Brand | Varito |
| Framework Material | 304 full stainless steel + acrylic arms |
| Dimension | 1400 * 1260 * 2300mm |
| Inner Height | 2080mm |
| Weight | 200kg/pcs |
| Passage Width | 673mm |
| Arm Support | 120° rotors with 3 sections |
| Passing Direction | Single directional / Bi-directional |
| MCBF | 10 million |
| Power Supply | AC220V/110V, 50/60Hz |
| Operation Voltage | 24V DC |
| Power Consumption | 40W |
| Operation Temperature | -15°C ~ 60°C |
| Operation Humidity | 0 – 95% (No freeze) |
| Working Environment | Indoor / Outdoor with solid rain protection roof |
| Flow Rate | 30 people per minute |
| LED Indicator | Yes |
| Emergency | Automatic arm open when power off |
| Communication | Dry contact, Relay signal, RS485 |
Product Description
Security gate for controlled pedestrian access in high-security industrial and commercial facilities
Robust Full Height Security Design
The VARITO VT-401WS Full Height Turnstile features a heavy-duty steel construction designed for durability and long-term operation. Its full height barrier prevents individuals from climbing over or bypassing the system, making it one of the most secure pedestrian access control solutions available.
Multi-Layer Security for Sensitive Facilities
The VARITO VT-401WS Full Height Turnstile works effectively as part of a broader security ecosystem. High-security environments often combine several security systems to create a complete protection strategy.
Together, these technologies create a multi-layer security infrastructure that protects people, assets and critical environments.
We Provide Multiple Solutions
Can integrate a variety of access control equipments

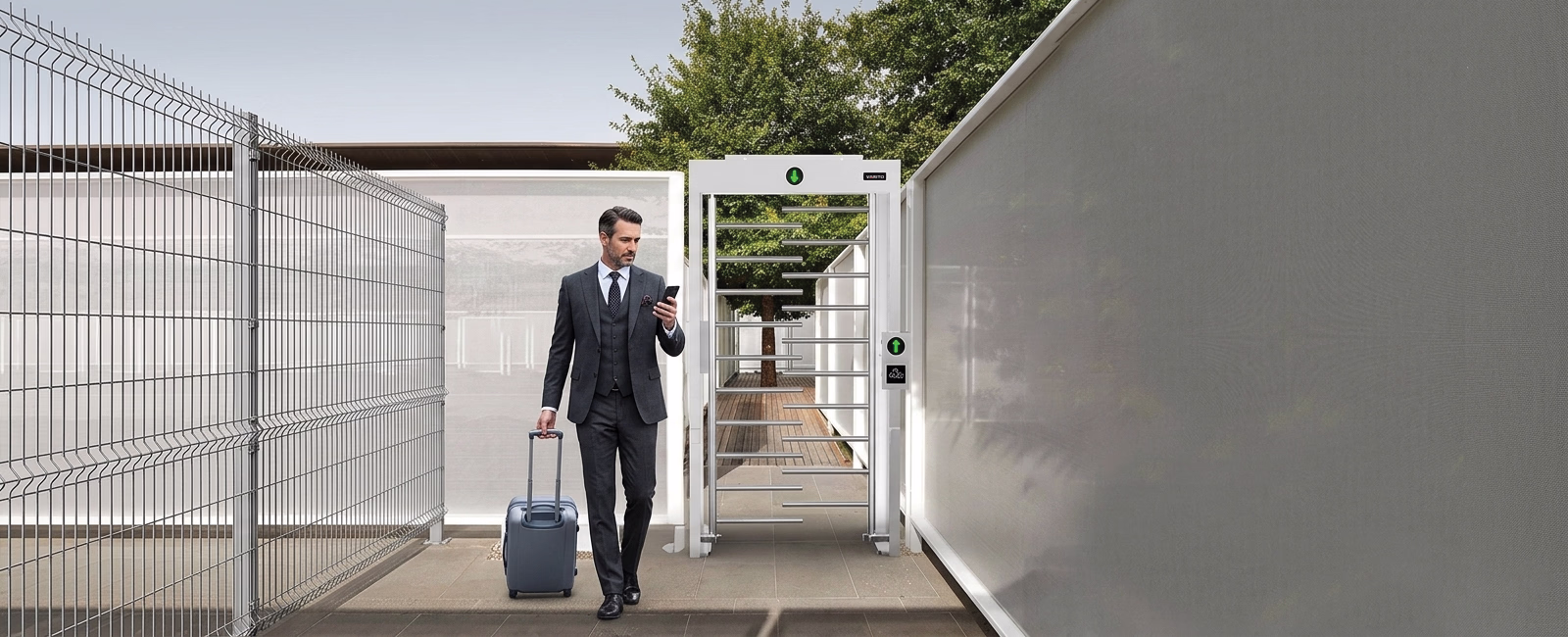

Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work

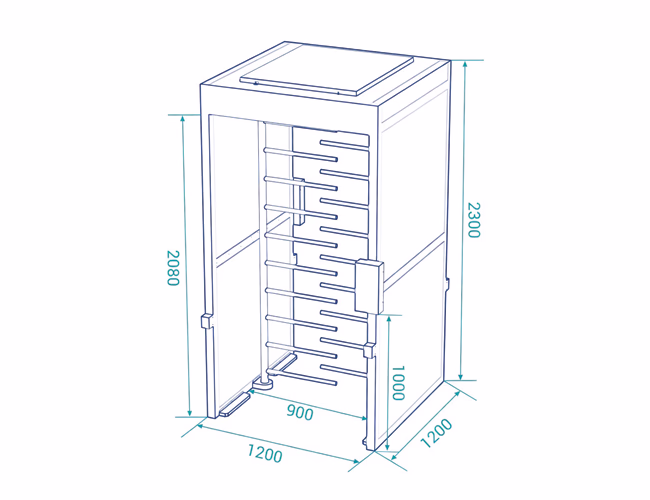

Product Details and Dimensions
All the details and dimensions can be customized according to your project site
More Information
Smart Access Control Solution for Modern Security
VARITO VT-401WS Full Height Turnstile
The VARITO VT-401WS Full Height Turnstile is a powerful perimeter security solution designed to provide controlled pedestrian access for high-security environments. Developed by VARITO, a globally trusted security and automation technology brand, the VT-401WS combines strong mechanical design, intelligent access control compatibility, and reliable performance to ensure secure entry management for modern infrastructures.
In many facilities, protecting sensitive areas requires a robust access control barrier that cannot be easily bypassed. The VARITO VT-401WS Full Height Turnstile is engineered to allow only one authorized person to pass through at a time, preventing tailgating and unauthorized entry. Its full height rotating barrier creates a secure entry point that improves both security and operational efficiency.
This makes the VT-401WS an ideal solution for industrial plants, corporate campuses, stadiums, transportation hubs, and government facilities where strict security and controlled pedestrian flow are essential.
Robust Full Height Security Design
The VARITO VT-401WS Full Height Turnstile features a heavy-duty steel construction designed for durability and long-term operation. Its full height barrier prevents individuals from climbing over or bypassing the system, making it one of the most secure pedestrian access control solutions available.
Unlike traditional access gates, full height turnstiles provide superior perimeter protection by forcing controlled single-person entry. The VT-401WS is built to perform reliably even in high-traffic environments, ensuring smooth rotation and stable operation throughout the day.
With corrosion-resistant materials and precision engineering, the system delivers long service life with minimal maintenance requirements.
Seamless Integration with Access Control Systems
One of the key advantages of the VARITO VT-401WS is its ability to integrate with modern VARITO Access Control System solutions. Organizations can connect the turnstile with RFID cards, biometric authentication devices, QR code scanners, and centralized security management platforms.
This integration enables automated entry verification and real-time monitoring of access points.
For larger facilities, the system can also be used alongside the VARITO Tripod Turnstile Gate, creating a multi-level pedestrian access control system that improves security and operational efficiency.
Additionally, vehicle access can be controlled by integrating the system with the VARITO Boom Barrier Gate, ensuring secure entry for vehicles at parking areas and facility entrances.
Multi-Layer Security for Critical Infrastructure
The VARITO VT-401WS Full Height Turnstile works effectively as part of a broader security ecosystem. Many high-security facilities combine multiple security technologies to ensure comprehensive protection.
For example, organizations can install the VARITO X-Ray Baggage Scanner to inspect baggage and parcels at security checkpoints.
In addition, deploying the VARITO Metal Detector Gate helps detect metallic threats and prevents dangerous objects from entering restricted areas.
By combining these technologies, organizations can establish a highly secure environment capable of protecting people, assets, and sensitive infrastructures.
Reliable Operation and Durable Construction
The VARITO VT-401WS is designed for continuous operation in demanding environments. Its heavy-duty mechanical system ensures smooth rotation, reliable locking mechanisms, and stable performance even during peak traffic hours.
The turnstile supports easy installation, flexible system integration, and low maintenance requirements, making it a cost-effective solution for organizations that require high-level perimeter security.
Ideal Applications of Full Height Turnstile
- Industrial Facilities and Manufacturing Plants
- Corporate Campuses and Business Parks
- Government Buildings and High-Security Areas
- Sports Stadiums and Event Venues
- Universities and Educational Institutions
- Transportation Hubs and Secure Perimeters
Why Choose VARITO Security Solutions?
VARITO is an international security and automation technology brand delivering advanced surveillance, access control, and intelligent security solutions for modern infrastructures worldwide. From biometric authentication systems to advanced screening technologies, VARITO products are designed to protect people, assets, and critical environments.
By implementing the VARITO VT-401WS Full Height Turnstile, organizations can strengthen perimeter protection, improve access management efficiency, and build a reliable security infrastructure designed for the future.
