IUS-200 All in one Ultrasonic Sensor

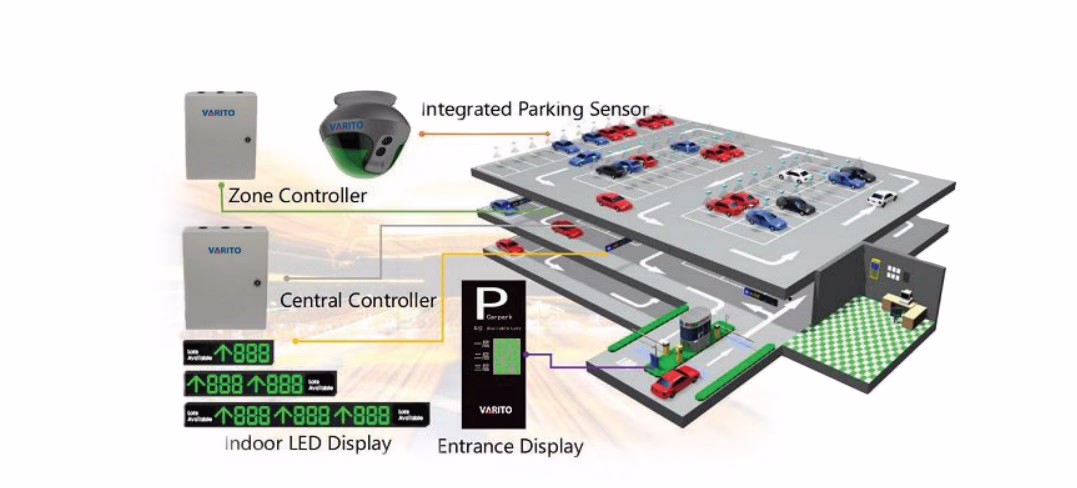

Integrated Ultrasonic Sensor, an important integral part of parking guidance system.It’s installed right above each parking space. It integrates ltrasonic sensor and indicator light.The working principle of ultrasonic ranging is used to collect the unoccupied and occupied state information of parking space in real time, control the indicator light of the parking to display different parking states and immediately sends parking state information to the Regional Controller through RS485 networking
Product Details:
| Brand: | Varito |
| Model | IUS-200 |
| Brand Origin: | Germany |
| Display: | Entrance LED |
| Passage Width: | 180g |
| Power Consumption | <1W |
Many Features
Parking detector
Parking detector is integrated with the indicator light. It is installed right above each
parking. Compared to the traditional split-type ultrasonic parking guidance system.
The Integrated Ultrasonic Sensor
The Integrated Ultrasonic Sensor is directly installed on the cable tray right above each
parking space, thus the shielding of the upright is effectively avoided and the installation
effect is more beautiful.
Two-way independent receiving
Two-way independent receiving and sending ultrasonic circuit design is used for the
Integrated Ultrasonic Sensor. It effectively covers the detection zone. Meanwhile, it works
independently with two-way switching and redundant backup.
Various combined judgment modes
Various combined judgment modes are used for the receiving circuit to enhance the
anti-interference and detection stability of the equipment.
Specification
| SPECIFICATION | |||
|---|---|---|---|
| Type | WBP-T01F | Communication Mode | RS485 |
| Operating Voltage | DC 10~28V (Rated 24V) | Communication Interface | 2 RJ45 Ports |
| Power Consumption | <1W | Communication Distance | ≤300m |
| Working Temperature | -20°C ~ +65°C | Supply Power Distance | ≤150m |
| Storage Temperature | -40°C ~ +85°C | Response Time After Parking | <2s |
| Environment | 40%~70% RH | Indicator Light Type | Red and Green Two-tone High-light LED |
| Dimension | Φ126 × 125mm | Installation Location | Horizontal 0~0.5m Vertical 2~3m (Advised 2.2~2.8m) |
| Net Weight | 180g | Ranging Error | 2cm |
| Appearance Material | Grey ABS Engineering Plastics | Detection Accuracy | >99.9% |
Product Description
Installation of Integrated Ultrasonic Sensor
The Integrated Ultrasonic Sensor is installed right above the parking line.
It is 0-0.5m away from the parking line horizontally. Its installation height
is 2-3m. advised 2.2-2.8m.
What is LPR(License Plate Recognition) Technology? :
– Through strict tests of static, lightning stroke & surge and group pulse, the reliable use
of fluorescent lamp and large-scale electromechanical device under the influence of
harsh environmental factors such as lightning stroke in parking lot is effectively guaranteed.
– All devices are designed with the short circuit, transposition and misconnection protection
to prevent the electrical damage to the related devices caused by the circumstances of
short circuit, transposition and misconnection due to the wrong wiring during construction.
– Dual network access design is used for the wiring interface. It is connected with standard
network cable, thus the material cost and construction difficulty is reduced greatly.
– With external double LED state display, the manager can know about the working state
of the device through land.
– LED lamp bead design is used for displaying state, featuring long service life and far visual range.
– Unique concise and general appearance design.
We Provide Multiple Solutions
Can integrate a variety of access control equipments
Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work
Product Details and Dimensions
All the details and dimensions can be customized according to your project site
