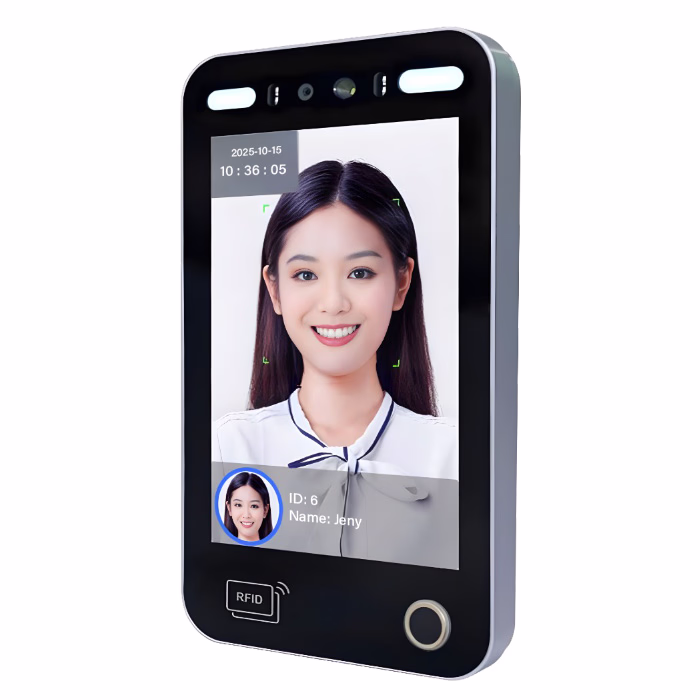

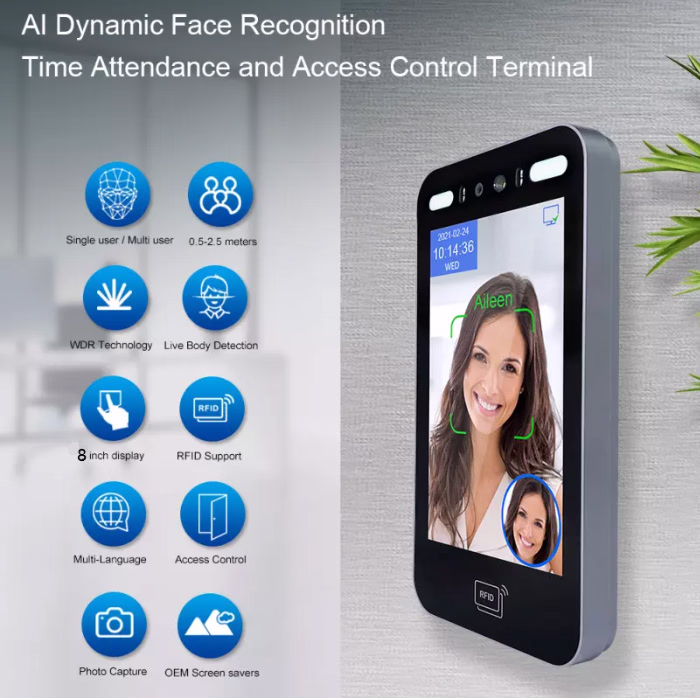

AI Face and Fingerprint Recognition Terminal

AI Face and Fingerprint Recognition Terminal

Dynamic Face, Fingerprint, Card and Password Recognition
VRT-X1Pro is Widely Used in Passenger Turnstile, Government Institution, Office, Building Apartment,
Community, College And Various Enterprise etc.

Product Details:

Board:	Varito
Model	VRT-X1Pro
Display	HD Touch Screen
Screen size	10.1 inch
Verify Method	Face, Finger, Card, Password
Camera:	WDR+200W Colorful Camera

Datasheet Request a Quote

Many Features

LED Light

Fill light for dark environment

CPU

1.2 GHz Dual-Core ARM Cortex-A7

Support

Support dry, wet and damaged finger

Log capacity

500,000 (adjustable)

Warranty

1 Year (Non-artificial Damages)

Product Size

155mm X 133mm X 25.5mm

Working Environment

Under normal light, strong light, dark environment, backlight

Language

English and other 20 national language

Specification

Item	Details
Model No.	VRT-X1Pro
Brand	Varito
Product	AI Dynamic Face Recognition, Time Attendance, Access Control Terminal
CPU	1.2GHz Dual-Core ARM Cortex-A7
NPU	600G (0.6T)
RAM	256MB DDR3
ROM	eMMC Flash 4G
Binocular Camera	200W Colorful WDR + 200W Infrared Live Camera
Logs Capacity	500,000
Display	10.1 Inch Touch Screen, HD 1280 × 800
Operating System	Linux 3.10
Face Registration	Local operation: Enroll face with machine, import user photo via U disk Software operation: Import user photo to software, capture user photo with camera
Verification	Dynamic face recognition, password, ID/IC card (optional)
Face Capacity	50,000
Fingerprint Capacity	100,000
Card Capacity	50,000 (ID and IC Card)
Password Capacity	50,000
Face Recognition Accuracy	99.70%
Recognition Speed	<0.2s, supports single user / multi-user (up to 5 users at the same time)
Recognition Distance	0.5 – 2.5 meters (0.5 – 1.5 meters with live face recognition enabled)
Prevent Photo	Dual camera anti-counterfeiting, prevents recognition using photo or video
Principle of Identification	Face algorithm technology using multi-task cascaded convolutional neural network based on video stream for dynamic face detection, tracking, and recognition
WDR	Wide Dynamic Range, supports accurate face recognition under strong light, dark light, and backlight
USB	USB 2.0 × 1, Support U-disk import/export data
Power Supply	DC 12V interface × 1
Speaker Interface	Reserved for extended speaker interface
Network Communication	TCP/IP support C/S LAN communication, WiFi (Optional)
Multi Language	English, Spanish, Arabic, Thai, Japanese, Korean etc.
Broadcast and Ring	Support display name, voice broadcast name, built-in bell ring
Automatic Fill Light	Support infrared fill light; the white fill light automatically lights up when face is captured in dark light
Working Current	Stand-by current: 310mA, Working current: 520mA
QR Code Scanner	Support
Working Voltage	DC 12V
Installation Way	Standard: Wall mount, Desktop stand Optional: Bracket for turnstile, Floor stand
Machine Dimension	299 × 161 × 20 mm
Face Attendance Software	Support exporting Excel attendance report with U-disk
Management Software	Support PC software to manage data through network connection with equipment
Shift	Support shift setting and importing shift schedule with U-disk
Environmental Adaptability	Working temperature: -15°C ~ +50°C (storage temperature: -40°C ~ +65°C) Working humidity: 20% ~ 90% (storage humidity: 20% ~ 90% ±2%) Dark environment: LED soft light automatic fill light (automatic control to ambient light) Ambient light adaptation range: 0 – 50,000 Lux
Access Control Function	Door unclosed alarm, forced door opening linkage and output, one set of door opening signals, one set of alarm signals, time permission control, connect external access control reader, Wiegand 26/34 output

Product Description

Dynamic Face & Fingerprint Recognition Terminal

Quick Details :

Display : HD Touch Screen
Screen size : 10.1 inch
Verify Method : Face, Finger, Card, Password
Operation : Linux
Camera : WDR+200W Colorful Camera
Application : Indoor
