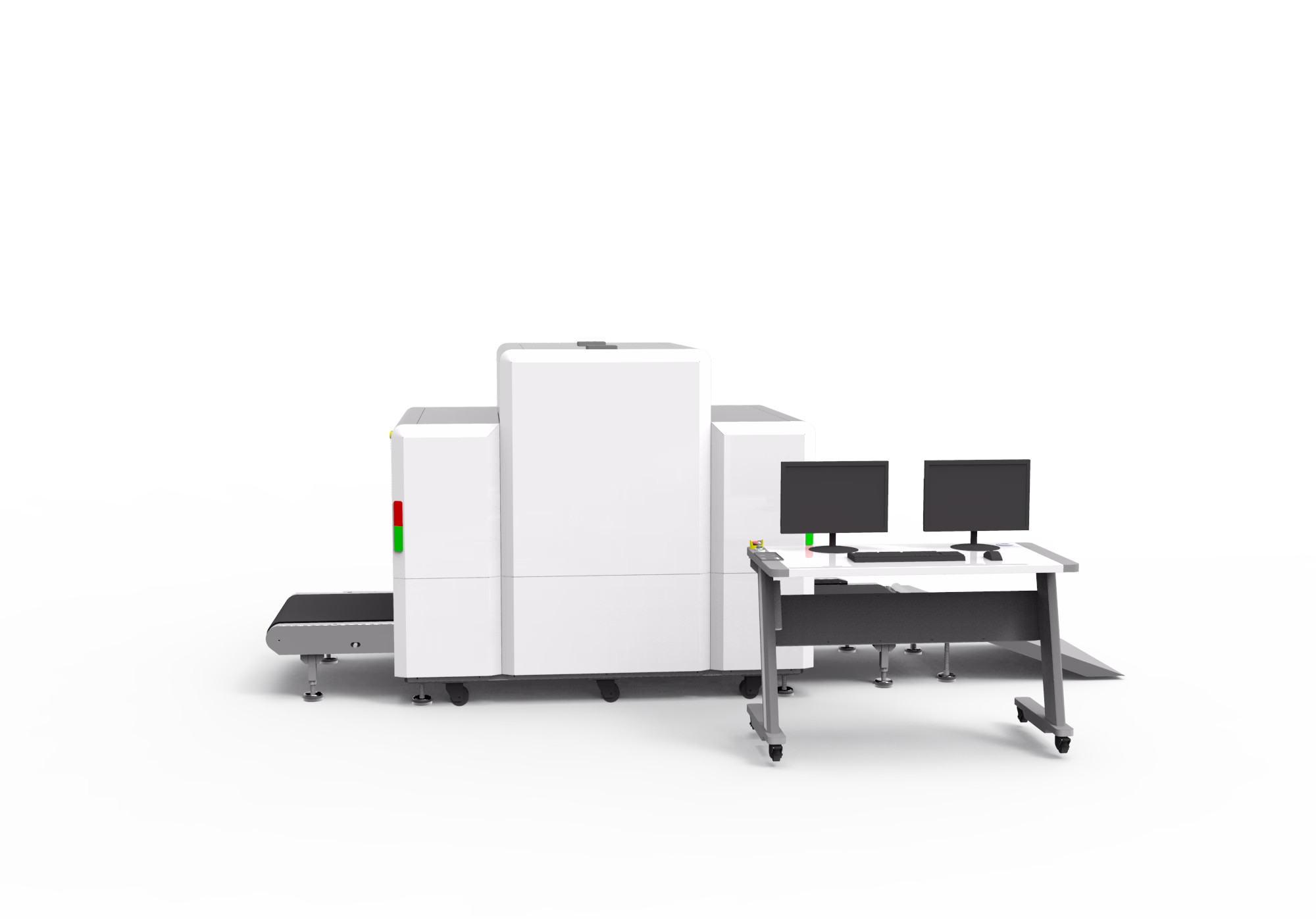

XR3G-8065A X-Ray Scanner
Designed for medium to large baggage, Varito XR3G-8065C X-ray scanner features a 160kV dual- source system, 40mm penetration, and
ergonomic 310mm height, ideal for hotels, stations, and high-traffic areas.
Product Details:
| Brand: | Varito |
| Model | XR3G-8065A |
| Brand Origin: | Germany |
| Penetration Capability: | 12mm steel plate |
| Channel Size |
800mm×650mm (W×H) |
| X-Ray Generator: |
160kV |
Many Features
Large 8065 tunnel ideal
Large 8065 tunnel ideal for medium and large baggage
310mm conveyor height
310mm conveyor height ensures easy luggage loading access
Powerful 160kV X-ray source delivers
Powerful 160kV X-ray source delivers clear, detailed imaging
40mm penetration enables accurate
40mm penetration enables accurate inspection of dense materials
Central alarm indicator ensures clear
Central alarm indicator ensures clear visual status alerts
Bidirectional scanning improves
Bidirectional scanning improves inspection flexibility and throughput
Standard white finish with customizable
Standard white finish with customizable color options available
Durable structure designed for heavy- duty
Durable structure designed for heavy- duty, high-traffic environments
Specification
| Physical Specifications | |
|---|---|
| Dimensions | 2540mm x 1160mm x 1420mm (L×W×H) |
| Tunnel Size | 800mm × 650mm (W×H) |
| Console Table | 700mm L × 600mm W × 750mm H |
| Equipment Weight | 500Kg |
| Conveyor Speed | 0.22 m/s (adjustable) |
| Conveyor Load | 200Kg |
| Conveyor Belt Height | 310mm (from ground) |
| X-Ray Generator | |
| X-Ray Generator | 160kV |
| Energy | Dual-energy 4 Color Imaging |
| Penetration | 40mm steel plate |
| Wire Resolution | AWG 38 (φ0.102mm) |
| Material Separation | Low Z / Medium Z / High Z (0.5 Z accuracy) |
| Spatial Resolution | Horizontal: 1.0mm; Vertical: 1.0mm |
| Single Inspection Dose | <5 μGy/h |
| X-ray Leakage | <0.5 μGy/h (5cm outside surface) |
| Orientation | Top irradiation |
| Generator Cooling | Sealed oil cooling / 100% |
| Tube Current | 0.5–1.25mA |
| Power Consumption | 800W |
| Noise | <55 dB |
| Film Safety | Supports ASA/ISO1600 Film |
| Power Supply | AC 220V, 50Hz |
| System & Monitor | |
| Operating System | Embedded Windows 10 |
| Monitor | 21.5-inch LCD, 1920×1080 |
| Memory | 1TB |
| Keyboard | Special design with shortcut buttons |
| Electric Roller | Single-phase |
| Imaging Features | |
| X-ray Sensor | L-Shaped Photodiode Array, 12-bit |
| Image Processing | 24-bit real-time, 4-color analysis, bag count, ID/Date marking |
| Image Display | 1920×1080 high resolution |
| Image Enhancement | 1–64× zoom, Color/B&W, Partial Increase, High/Low Penetration, Organic Removal, Inorganic Removal, Inverting, Brightening, Darkening, Gray Sweeping |
| Explosives & Narcotics Detection | Suspicious organics highlight (Zeff 7–9) |
| Suspicious Alarm | Alarm + box line for explosives/drugs/hard objects |
| TIP | Threat Image Projection (training & assessment) |
| Image Recall | Hundreds |
| Miscellaneous Functions | Time/date display, counters, user management, self-test, diagnostics, logs, standby mode, stimulant training |
| Scanning Direction | Dual-direction |
| Operating Environment | |
| Storage Temperature | -20℃ to 40℃ |
| Operating Temperature | 5℃ to 40℃ |
| Relative Humidity | 0%–90% RH (non-condensing) |
| Storage Humidity | 0%–90% RH (non-condensing) |
| Options | |
| AI Feature | 41 classes, 15 types |
| Cameras | Real-time video for person–item tracing |
| UPS | 1.5KVA (15–20 minutes) |
| OEM Branding | Metal frame + UI embedded |
| Packaging Information | |
| Packing List | Manual, Cable, Tools, Console Table |
| Packaging Method | Wooden Pallet |
| Packaging Dimensions | 2070mm L × 1260mm W × 1730mm H |
| N.W. | 530KG |
| G.W. | 580KG |
| Regulatory Compliance | |
| China Standard | GB 12664-2024 |
| International | CE, ROHS, FCC |
Product Description
VARITO XR3G-8065A X Ray Baggage Scanner
Designed for medium to large baggage, VARITO XR3G-8065A X-ray scanner features a 160kV dual
source system, 40mm penetration, and
ergonomic 310mm height, ideal for hotels,
stations, and high-traffic areas.
Feature Highlights:
VARITO VARITO XR3G-8065A X-Ray Baggage Scanner
Large 8065 tunnel ideal for medium and
large baggage
✱ 310mm conveyor height ensures easy
luggage loading access
✱ Powerful 160kV X-ray source delivers
clear, detailed imaging
✱ 40mm penetration enables accurate
inspection of dense materials
✱ Central alarm indicator ensures clear
visual status alerts
✱ Bidirectional scanning improves
inspection flexibility and throughput
efficiency
✱ Standard white finish with customizable
color options available
✱ Durable structure designed for heavy
duty, high-traffic environments
We Provide Multiple Solutions
Can integrate a variety of access control equipments
Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work
Product Details and Dimensions
All the details and dimensions can be customized according to your project site
