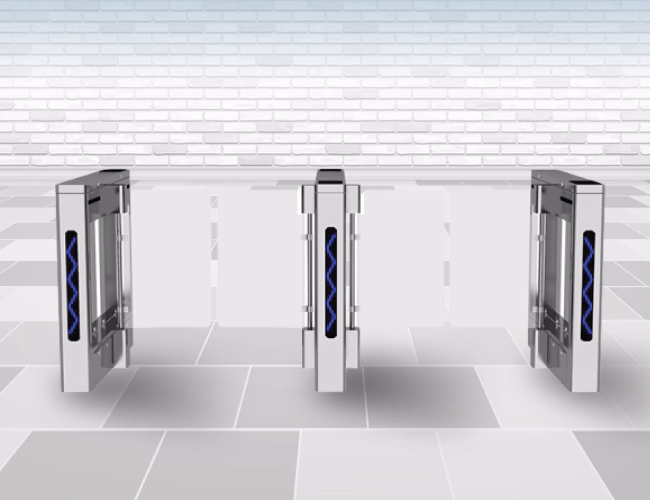

VARITO VT-B9S Swing Barrier
The VARITO VT-B9S Swing Barrier Turnstile is an automated gate system that uses swing arms (barriers) to regulate pedestrian movement. It allows access only after proper authentication such as RFID cards, biometric verification, QR codes or face recognition.
Product Details:
| Brand: | VARITO |
| Model | VT-B9S |
| Framework Material | SUS304 Stainless Steel |
| Dimension | 1400 x 280 x 980mm |
| Passing Speed | 20-60 People-Minute |
| Passage Width |
550-600mm |
Many Features Varito VT-Q30 Optical Flap Turnstile
Long-life performance
Long-life performance, high operation dependability and fast response
The whole system runs smoothly
The whole system runs smoothly, low noise, no mechanical impact
Single directional
Single directional or Bi-directional is selectable
Automatic reset function
Automatic reset function: turnstile arm will lock automatically within 5s (can be setting) if passenger delay to entry
Anti-tailing function
Anti-tailing function: only one person passes at one time
LED indicator
LED indicator (red × means no entry; green → means entry)
Easy to install
Easy to install and maintain
Arm length
Arm length can range from 500mm up to 650mm
Specification
| Item | Details |
|---|---|
| Model No. | VT-B9S |
| Brand | VARITO |
| Framework Material | SUS304 Stainless Steel |
| Swipe Card Panel Material | Tempered glass |
| Arm Material | Plexiglas-transparency |
| Dimension | 1400 x 150 x 980mm |
| Weight | 65kg/pcs |
| Passage Width | 600-1200mm |
| Opening Speed | <0.5 Seconds |
| MCBF | 12 million |
| Power Supply | AC220V/110V, 50/60Hz |
| Operation Voltage | 24V DC |
| Power Consumption | 20W |
| Operation Temperature | -25°C to 70°C |
| Operation Humidity | 0% – 95% (No freeze) |
| Working Environment | Indoor / Outdoor |
| Passing Speed | 30-60 People-Minute |
| Infrared Sensor | 12 Pairs (standard) |
| LED Indicator | Yes |
| Emergency | Glass will open automatically |
| Door Wing Material | 10mm Tempered Glass |
Product Description

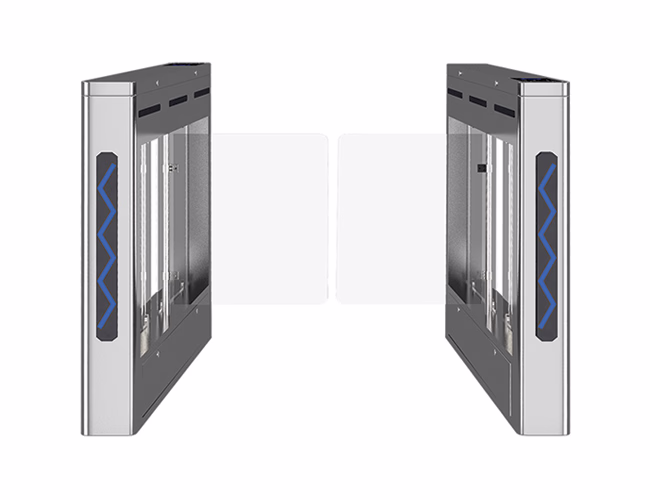

VARITO VT-B9S Swing Barrier Turnstile
Multi function customization operation
- Permissions validation and anti-tailgating
- Remaining open/closed mode selectable
- The barrier will be open or stop working when people are nipped
- Self-detection, Self-diagnostics, and automatic alarm
- When power is off, arms will drop down automatically
- LED indicator (red means no entry, green means entry)
- Only one person can pass at one time, to prevent the illegal following
Control Entry with Confidence
- Long-life performance, high operation dependability and fast response
- The whole system runs smoothly, low noise, no mechanical impact
- Audible and visual alarm will be triggered when detecting intrusion
- LED indicates the entrance/exit and passing status
- When the fire alarm is triggered, the barrier will be open automatically
- 30 – 60 passage frequency, 600 mm lane width
- SUS304 stainless steel, thickness: 1.2mm
We Provide Multiple Solutions
Can integrate a variety of access control equipments

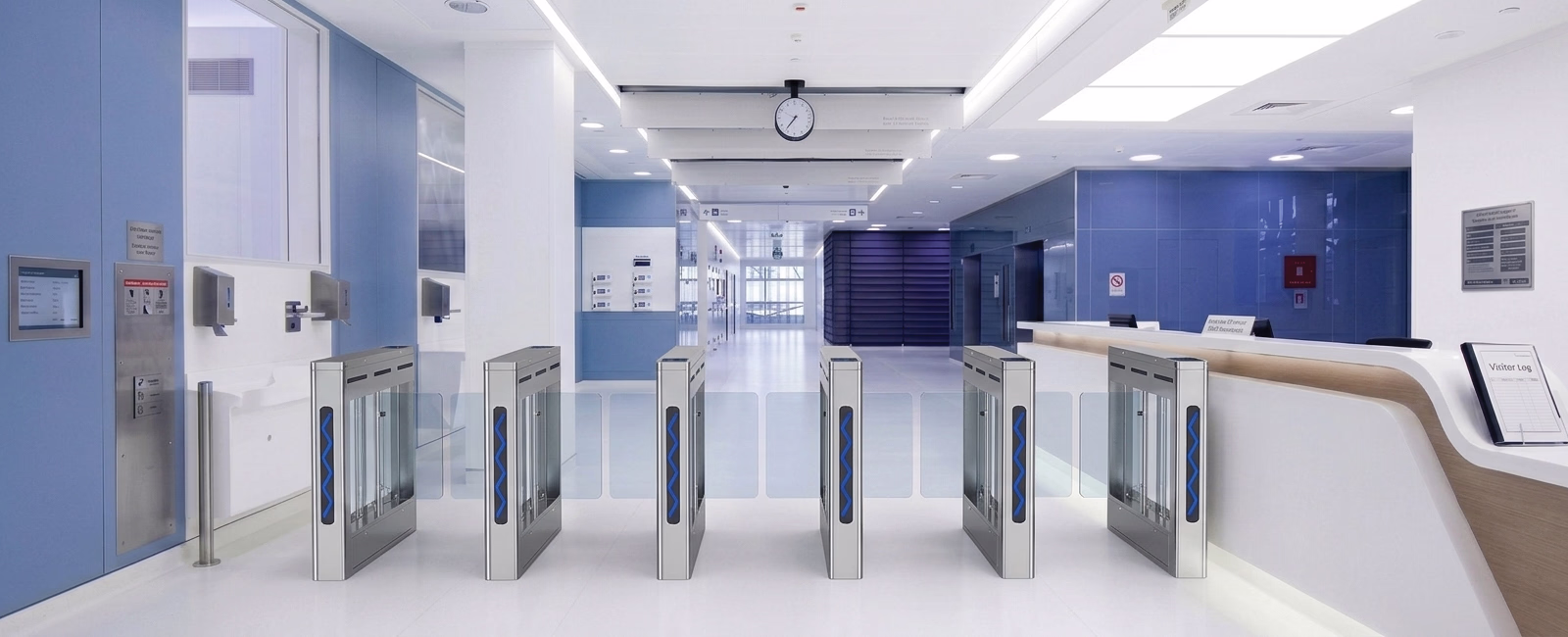

Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work

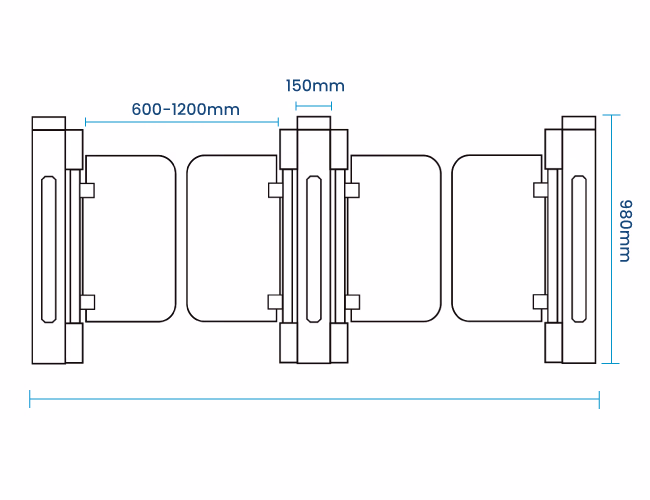

Product Details and Dimensions
All the details and dimensions can be customized according to your project site
More Information
Smart Access Control Solution for Modern Security
VARITO VT-B9S Swing Barrier Turnstile
The VARITO VT-B9S Swing Barrier Turnstile is an automated gate system that uses swing arms (barriers) to regulate pedestrian movement. It allows access only after proper authentication such as RFID cards, biometric verification, QR codes or face recognition.
Unlike traditional turnstiles, swing barriers offer wider lanes, making them perfect for wheelchair users, elderly individuals, and high-traffic environments requiring flexible access.
Key Features of Flap Barrier
Why Choose VARITO Flap Barrier
Choosing VARITO means investing in reliability, innovation, and global-quality standards. The VT-B9F model is designed to handle demanding environments while maintaining a modern and professional look.
Key Benefits
Enhances overall security and access management
Reduces the need for manual supervision
Improves operational efficiency
Adds a premium, professional appearance to your facility
Requires minimal maintenance with long-lasting performance
VARITO Brand Authority & Complete Security Integration
VARITO is recognized for delivering innovative and dependable security solutions across the globe. With a strong focus on quality and advanced technology, VARITO ensures that every product meets international security standards.
To build a complete security ecosystem, VARITO also offers:
1. VARITO Access Control System
2. VARITO Tripod Turnstile Gate
3. VARITO Boom Barrier Gate
4. VARITO Metal Detector Gate
These solutions can be seamlessly integrated with the VT-UVSS-Pro to create a multi-layered security infrastructure, ensuring full control over both vehicle and pedestrian access.
Ideal Applications of Flap Barrier
- Corporate offices and commercial buildings
- Industrial factories and warehouses
- Educational institutions and campuses
- Stadiums, event venues, and amusement parks
- Government facilities and secure premises
- Metro stations, bus terminals, and transport hubs
Conclusion
The VARITO VT-B9S Swing Barrier Turnstile is a powerful and flexible solution for modern access control needs. With its advanced features, user-friendly design, and strong brand reliability, VARITO continues to lead the security industry.
Frequently Asked Questions (FAQs)
1. What is a swing barrier turnstile?
A swing barrier turnstile is an automated gate system that controls pedestrian access using swing arms and authentication methods.
2. What makes VARITO VT-B9S different from flap barriers?
Swing barriers provide wider access lanes, making them more suitable for disabled users and high-traffic areas.
3. Can it integrate with biometric systems?
Yes, the VT-B9S supports biometric, RFID, QR code, and face recognition systems.
4. Is it suitable for outdoor use?
Yes, with proper installation and housing, it can be used in both indoor and outdoor environments.
5. What happens during power failure?
In case of power failure, the barrier automatically opens to ensure safe and free movement.
