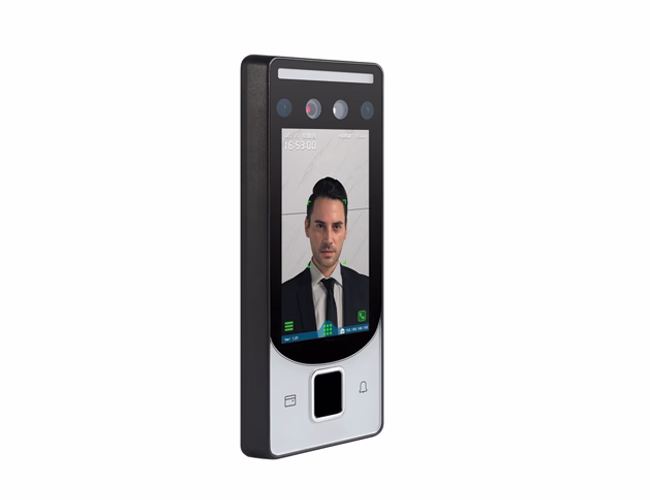

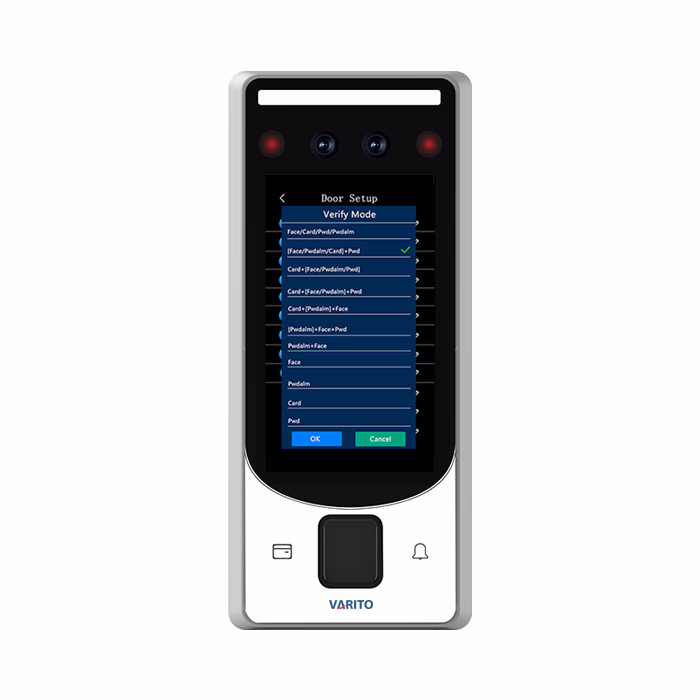

VARITO VT-8245H Fingerprint and Face Recognition Terminal
VARITO VT-8245H combines fingerprint & facial recognition in a sleek, high-performance terminal.
Features a 4.5″ ISP FHD display, Linux OS and a 1.2GHz quad-core CPU for fast processing. With 2MP
HD camera, <0.03s ultra-fast identification and 200K system record capacity, it’s ideal for high-traffic
access control. Built with a metal shell + acrylic panel, it’s durable yet lightweight (0.6kg). Perfect for
enterprises, factories, and secure facilities. TCP/IP networking, RS485 networking, High Speed
Identification, Liveness detection wide dynamic strong light suppression (Independent ISP Processing)
Support U disk backup data, support cloud platform. Simplified Chinese and English.
Product Details:
| Board: | Varito |
| Model | VT-8245H |
| Display | ISP FHD Screen |
| Screen size | 4.5 inch |
| Verify Method |
Face, Fingerprint, Card and Password |
| Camera: |
2 Mega Pixel HD Binocular |
Many Features
Dynamic Face Recognition Terminal
Dynamic Face Recognition Terminal
Built In Independent Attendance Module
Built In Independent Attendance Module
Multiple People Simultaneous
Multiple People Simultaneous Recognition
<0.3S High Speed Identification
<0.3S High Speed Identification
Support Cloud system management
Support Cloud system management
Using High-resolution Texture Recognition
Using High-resolution Texture Recognition Lenses
Built in liveness detecting sensor
Built in liveness detecting sensor, supports massive
fingerprint authentication and liveness judgment
Support OTA Upgrade and
Support OTA Upgrade and
Specification
| Item | Details |
|---|---|
| Model No. | VT-8245H |
| Brand | Varito |
| Working Mode | Face Recognition, Fingerprint Identification, Palm Vein Recognition, QR Code Verification |
| Management Mode | Touch Screen, Desktop Software, Cloud Software, Mobile App |
| Storage Capacity | 256MB DDR3 Memory, 8GB eMMC Storage |
| User Capacity |
5,000 Faces, 5,000 QR Codes, 5,000 Cards, 5,000 Passwords, 5,000 Fingerprints, 5,000 Palms |
| Record Capacity | 200,000 Records; 10,000 Recording Photos; 10,000 System Records |
| Size | 165 × 79 × 21 mm |
| Operating System | Linux System |
| Camera | Wide Dynamic Binocular 2MP HD Camera |
| Display Screen | 4.5-inch ISP Full-view HD Screen |
| Recognition Speed | < 0.3 s |
| Recognition Distance | 0.3 m – 2 m |
| Weight | 0.6 kg |
| Material | ABS Plastic Housing + Acrylic Glass Panel |
| Firmware Upgrade | Software OTA Upgrade |
| Comparison Mode | 1:N / 1:1 |
| Communication Port | TCP/IP, WiFi, 4G (Customized), Wiegand 26/34/66 |
| Main Uses | Access Control, Time Attendance |
| Installation Ways | Wall Mounted or Installed on the Turnstile |
| Lighting System | Infrared Supplement Light |
| Working Voltage | DC 12V (9–14V) |
| Working Current | < 1000 mA |
| Working Environment | Temperature: -30℃ ~ 65℃ |
| Humidity | 10% ~ 90% RH |
| Other Interfaces |
Exit Button × 1, Door Sensor × 1, Alarm Output × 1, Wiegand Output × 1, Magnetic Lock Control × 1 |
Product Description
Ultra-Fast Identification in Seconds
1. High-resolution Texture Recognition Lenses
2. 5″ Inch ISP Full View HD Display Screen
3. Support OTA Upgrade and
4. USB Flash Drive Upgrade
5. Device Continuously Upgrades to Enhance Application Value
6.Built in liveness detecting sensor & massive fingerprint authentication
7. High resolution display screen is adopted for better and clear display
8. Support screen sleep, screen saver and identify wake-up functions
Advanced AI Face Detection Technology
1. Utilizing existing color high-definition cameras
2. Combined with rolling QR code algorithms, to achieve
3. QR code recognition and authentication
4. QR code door opening, QR code attendance,
5. Visitor authentication and Palm Vein Recognition
6. 850nm light speed to determine the authenticity of palm veins
7. Combining texture and palm shape for algorithmic operations
8. Utilizing human biometrics to achieve personal identification
9. Less error rate, higher accuracy, faster speed, non-contact

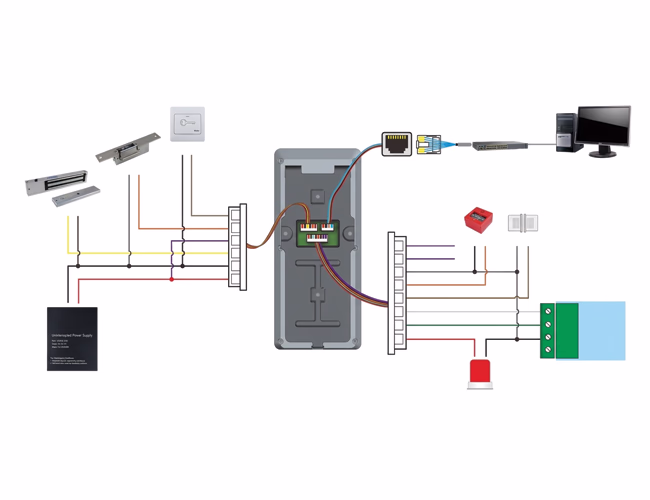

We Provide Multiple Solutions
Can integrate a variety of access control equipments
Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work
Product Details and Dimensions
All the details and dimensions can be customized according to your project site
More Information
Smart Access Control Solution for Modern Security
VARITO VT-8245H Fingerprint & Face Recognition Terminal
The VARITO VT-8245H Fingerprint & Face Recognition Terminal is a next-generation biometric access control device designed to deliver fast, secure, and intelligent authentication for modern organizations. Developed by VARITO, a globally trusted security and automation technology brand, this advanced terminal combines facial recognition and fingerprint verification to ensure high-level security and seamless user experience.
In today’s digital security landscape, businesses require reliable and contactless authentication systems to manage employee access, attendance tracking, and restricted entry control. The VT-8245H terminal is engineered to meet these demands by offering precise biometric identification, quick response time, and easy integration with smart security infrastructure.
Dual Biometric Authentication for Maximum Security
The VARITO VT-8245H supports both facial recognition and fingerprint verification, providing a multi-layered security system that significantly reduces unauthorized access risks. The advanced facial recognition technology ensures accurate identification even in varying lighting conditions, while the fingerprint sensor delivers fast and reliable authentication.
This powerful combination makes the device ideal for offices, factories, educational institutions, government facilities, and high-security zones. It can be seamlessly integrated with modern VARITO Access Control System solutions to create a centralized and automated entry management system.
Smart Integration with Security Ecosystem
One of the key strengths of the VARITO VT-8245H Fingerprint & Face Recognition Terminal is its compatibility with advanced security technologies. It supports integration with RFID cards, mobile authentication, and cloud-based access management systems, offering flexibility for various operational needs.
When combined with Read More
