Varito Optical Swing Turnstile VT-DS212
VT-DS212 optical swing turnstile provides an artistic and high artwork solution for access control at sites with high aesthetic requirements, such as hotel, bank and chamber.
It’s a handicapped type, with passing way from 600mm to 850mm, which is suitable for people in wheelchairs, large luggage and for transportation of bulk goods and bicycle.
Product Details:
| Brand: | Varito |
| Model | VT-DS212 |
| Framework Material | 304 Stainless Steel+ Plexiglas Arm + Full Glass on side |
| Arm Material | Plexiglas – transparency |
| Weight |
60kg/pcs, 70kg/pcs |
| Passing Direction: |
Single directional / Bi-directional |
Many Features
Long-life performance
Long-life performance, high operation dependability and fast response
The whole system runs smoothly
The whole system runs smoothly, low noise, no mechanical impact
Single directional
Single directional or Bi-directional is selectable
Automatic reset function
Automatic reset function: turnstile arm will lock automatically within 5s (can be setting) if passenger delay to entry
Anti-tailing function
Anti-tailing function: only one person passes at one time
LED indicator
LED indicator (red × means no entry; green → means entry)
Easy to install
Easy to install and maintain
Arm length
Arm length can range from 500mm up to 650mm
Specification
| Item | Details |
|---|---|
| Model No. | VT-DS212 |
| Brand | Varito |
| Framework Material | 304 Stainless Steel + Plexiglas Arm + Full Glass on side |
| Arm Material | Plexiglas – transparency |
| Dimension | Standard: 1200 * 185 * 1000mm, passage width support: 600–850mm Optional: 1300 * 185 * 1000mm, passage width support: 600–900mm |
| Weight | 60kg/pcs, 70kg/pcs |
| Passing Direction | Single directional / Bi-directional |
| MCBF | 10 million |
| Power Supply | AC220V/110V, 50/60Hz |
| Operation Voltage | 24V DC |
| Power Consumption | 40W |
| Operation Temperature | -15°C – 60°C |
| Operation Humidity | 0 ~ 95% (No freeze) |
| Working Environment | Indoor / Outdoor (shelter) |
| Flow Rate | 40 people per minute |
| LED Indicator | Yes |
| Infrared Sensor | 4 pairs |
| Emergency | Automatic arm open when power off |
| Communication | Dry contact, Relay signal, RS485 |
Product Description
Varito VT-DS212 Intelligent Optical Swing Turnstile
Varito VT-DS212 Smart Optical Swing Turnstile Gate
It’s a handicapped type, with passing way from 600mm to 850mm, which is suitable for people in wheelchairs, large luggage and for transportation of bulk goods and bicycle. The cabinet is made of brushed stainless steel and wing is Plexiglas/acrylic glass.
Varito VT-DS212 High-Speed Optical Swing Turnstile Gate
The material is equipped with two LED indicator on the top cover (one red — shows no entry; one green → shows entry) The system can be integrated some third-party access control system. RFID, Fingerprint and Biometric reader device, for instance.
We Provide Multiple Solutions
Can integrate a variety of access control equipments
Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work

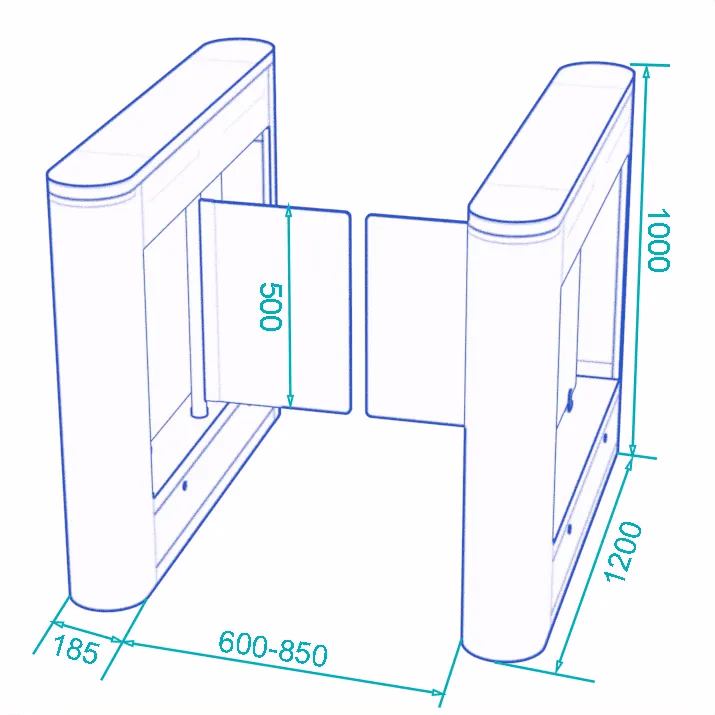

Product Details and Dimensions
All the details and dimensions can be customized according to your project site
