Varito Double Check Airport & Train Station Turnstile with AB Door and Face Recognition
VT-M366 swing turnstile which is made of metal+painting and acrylic in a modern style. It has anti-collision and anti-clamp function.The power-off door pendulum can be opened directly to meet the needs of fire escapes. It can sensitively detect users’ passing state so as to protect users from hitting, meanwhile, prevent illegal intrusion and tail-gating passing or submarine returning.
Product Details:
| Brand: | Varito |
| Model | VT-M366 |
| Product Size: | 2700*200*1300mm |
| Arm Material | 10mm Tempered PC |
| Operating Temperature: |
-20 To +70 Degrees |
| Power Supply: |
24V 240W |
Many Features
Function
Function: Double anti-pinch, infrared induction, emergency evacuation and emergency off.
Swing turnstile
Swing turnstile is with standard electrical interface for the integration of various readers and writers.
Direction display
Direction display to guide passenger which direction is to go.
Card-reading
Card-reading with memory or without memory function.
Specification
| Item | Details |
|---|---|
| Model Number | VT-M366 |
| Product Size | 2700*200*1300mm |
| Pass Width | 600mm |
| Net Weight | 160kg |
| Thickness | 2.0mm |
| Cabinet Material of Train Station Turnstile | 2.0mm Metal + Painting |
| Side Panel Material | 10mm Transparent PC |
| Arm Material | 10mm Transparent Acrylic |
| Photocell of Train Station Turnstile | 17 pairs |
| Pass Rate | 35 p/m |
| Power Supply | 24V 240W |
| Operational Voltage | 24V (DC) |
| Max Power Consumption | 100W |
| Frequency | 50–60Hz |
| Working Temperature | -20°C to +70°C |
| MCBF | 15,000,000 cycles |
Product Description

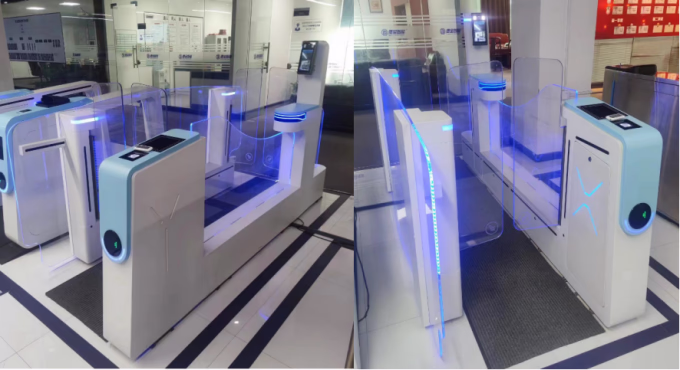

Varito Double Check Turnstile with AB Door, Face Recognition & ID Card for Airport/Station
Double check Airport Train Station Turnstile including AB Door Face Recognition ID Card
VT-M366 swing turnstile which is made of metal+painting and acrylic in a modern style. It has anti-collision and anti-clamp function.The power-off door pendulum can be opened directly to meet the needs of fire escapes. It can sensitively detect users’ passing state so as to protect users from hitting, meanwhile, prevent illegal intrusion and tail-gating passing or submarine returning.
Varito High-Security Dual Check Turnstile for Airports & Transport Hubs
1. Function: Double anti-pinch, infrared induction, emergency evacuation and emergency off. 2. Swing turnstile is with standard electrical interface for the integration of various readers and writers. 3. Direction display to guide passenger which direction is to go. 4. Card-reading with memory or without memory function. 5.Boarding swing turnstile checks working status and failure indication when starting.
We Provide Multiple Solutions
Can integrate a variety of access control equipments
Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work
Product Details and Dimensions
All the details and dimensions can be customized according to your project site
