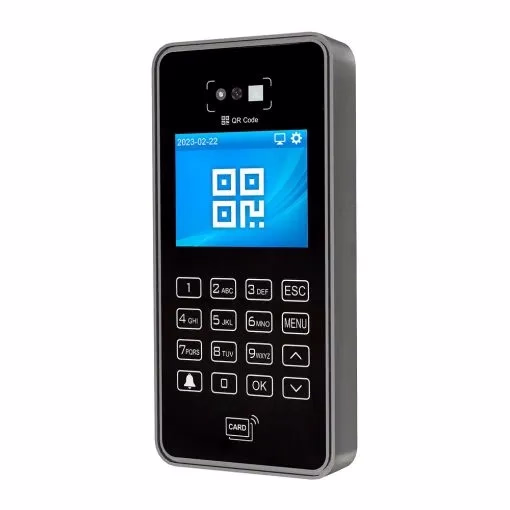

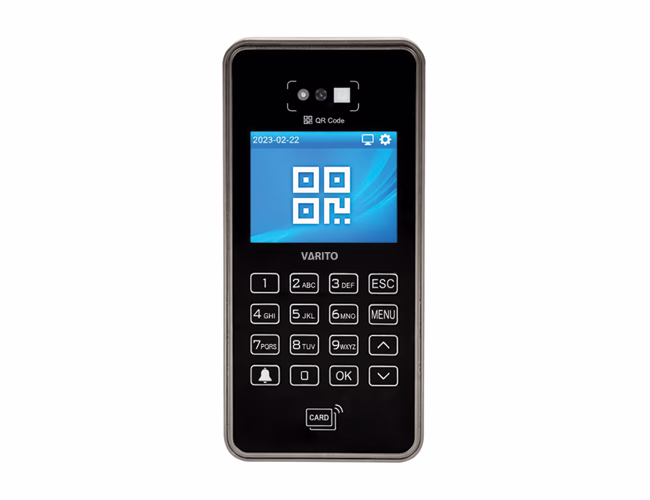

QR Code and RFID Terminal

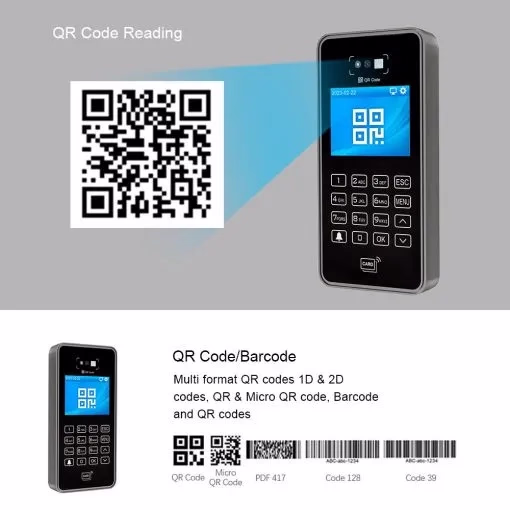

QR Code/Barcode Multi format QR codes 1D & 2D codes,QR & Micro QR code, Barcode and QR codes

Product Details:

Board:	Varito
Model	Q8
Screen	2.8 Inch Color Screen
Input Mode	Touch keyboard
Operation system	LINUX 4.19
CPU,NPU	ARM Cortex-A7 800M, 800G（0.8T）

Datasheet Request a Quote

Many Features

Verification

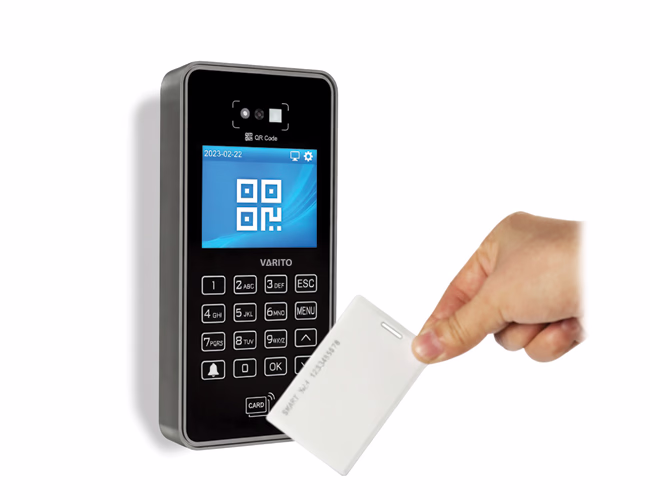

QR code, password, ID Card(IC card optional)

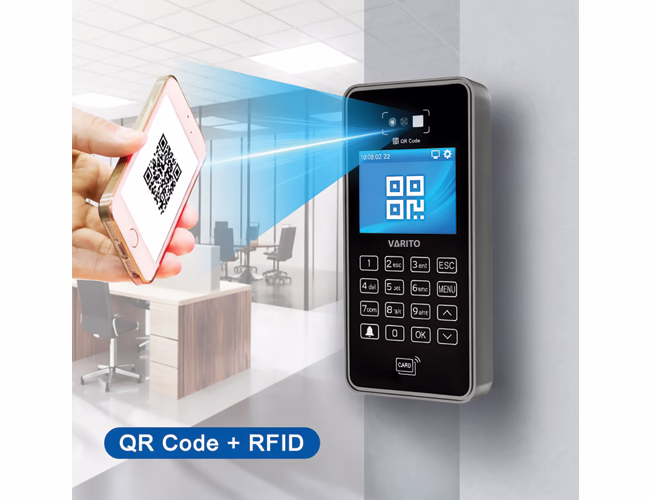

QR Code Function

Support dynamic QR code, Card QR code, Visitor QR code

Card Capacity

5000, ID Card Standard, IC Card Optional

Access Control Function

Lock output
Doorbell output/external ring
Wiegand input/ output

Specification

Item	Details
Model No.	Q8
Brand	Varito
Screen	2.8 Inch Color Screen
Input Mode	Touch Keyboard
Operating System	LINUX 4.19
CPU / NPU	ARM Cortex-A7 800M, 800G (0.8T)
RAM	256MB DDR3
ROM	EMMC Flash 4GB
Log Capacity	500,000
Verification Methods	QR Code, Password, ID Card (IC Card Optional)
QR Code Function	Dynamic QR Code, Card QR Code, Visitor QR Code
QR Code Capacity	100,000
Card Capacity	5,000 (ID Card Standard, IC Card Optional)
Password Capacity	5,000
USB	USB 2.0 × 1 (Support U-Disk Import / Export)
Power Supply	DC 12V 2A
Network Communication	TCP/IP, USB Type-A, Wi-Fi (Optional)
Access Control Functions	Lock Output Doorbell Output / External Ring Wiegand Input / Output
Environmental Adaptability	Working Temperature: 0℃ ～ +45℃ Working Humidity: 20% ～ 90%
Multi-Language Support	Supports 20 national languages and voices including English, Spanish, Arabic, Thai, Farsi, Portuguese, French, Italian, Japanese, Korean, etc.
Dimensions	165 × 80 × 25 mm

Product Description

QR Code and RFID Terminal

Product name QR Code Access Control Terminal
Screen 2.8 Inch Color Screen
Input Mode Touch keyboard
Operation system LINUX 4.19
CPU,NPU ARM Cortex-A7 800M, 800G（0.8T）
RAM 256MB DDR3
ROM EMMC Flash 4GB
Logs capacity 500,000
Verification QR code, password, ID Card(IC card optional)
